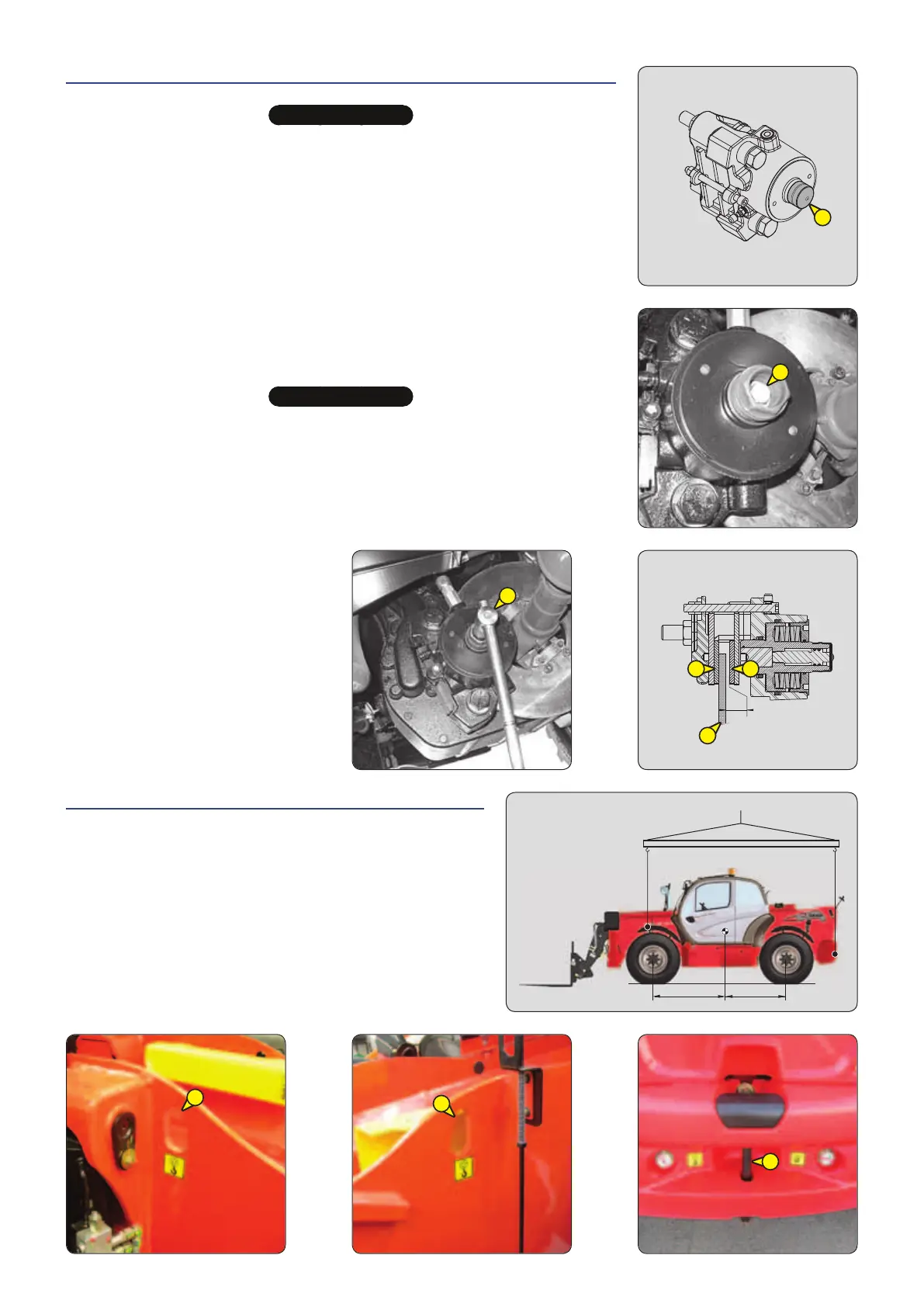

3 - 39
G6 – LIFT TRUCK
SLINGING
- Take into account the position of the lift truck centre of gravity
for lifting.
A = 1340 mm B = 1730 mm MT 1435 …
A = 1570 mm B = 1500 mm MT 1440 …
A = 1620 mm B = 1450 mm MT 1840 …
- Place the hooks in the fastening points 1 provided.
G5 – LIFT TRUCK
TOWING
IMPORTANT
Do not tow the lift truck at more than 6 km/h over a maximum distance of 5 km.
This manoeuvre is dangerous.
Carefully chock the lift truck before towing, as the parking brake system is inoperative.
- Place the forward/reverse selection lever and gear shift lever in neutral.
- Chock the lift truck.
- Remove the cap 1.
- Loosen screw 2 with a pin wrench 3 to release the brake disk. Leave a minimum
clearance of 5 mm between the disk 4 and the brake pads 5.
- Put the towing device into place.
- Remove the chocks.
- Switch on the hazard warning lights.
NOTE: Since there will be no steering or braking assistance, operate these controls
slowly. Avoid sudden jerky movements.
IMPORTANT
For adjusting the parking brake, please contact your dealer.
BA
1
2
3
5 mm
5 5
4
1
1
1
647563 (22/08/2017)
MT 1435/1440/1840 EASY 75D ST3B S1
