LAYING A HIGH LOAD ON TYRES
- Approach the load in the transport position in front of the stack (fig. F6).
- Apply the parking brake and place the forward/reverse selector in neutral.
- Raise and extend the jib (1) (2) until the load is above the stack, while monitoring
the longitudinal stability limiter and warning device (see: INSTRUCTIONS FOR
HANDLING A LOAD: C - LONGITUDINAL STABILITY LIMITER AND WARNING DEVICE).
If necessary, move the lift truck (3) forward (fig. F7), driving very slowly and carefully.
- Place the load in a horizontal position and lay it down on the pile by lowering and
retracting the jib (1) (2) in order to position the load correctly (fig. F8).
- If possible, release the fork by alternately retracting and raising the jib (1) (fig. F9).
Then set the forks into transport position.
- If this is not possible, reverse the lift truck (1) very slowly and carefully to release
the forks (fig. F10). Then set them into transport position.

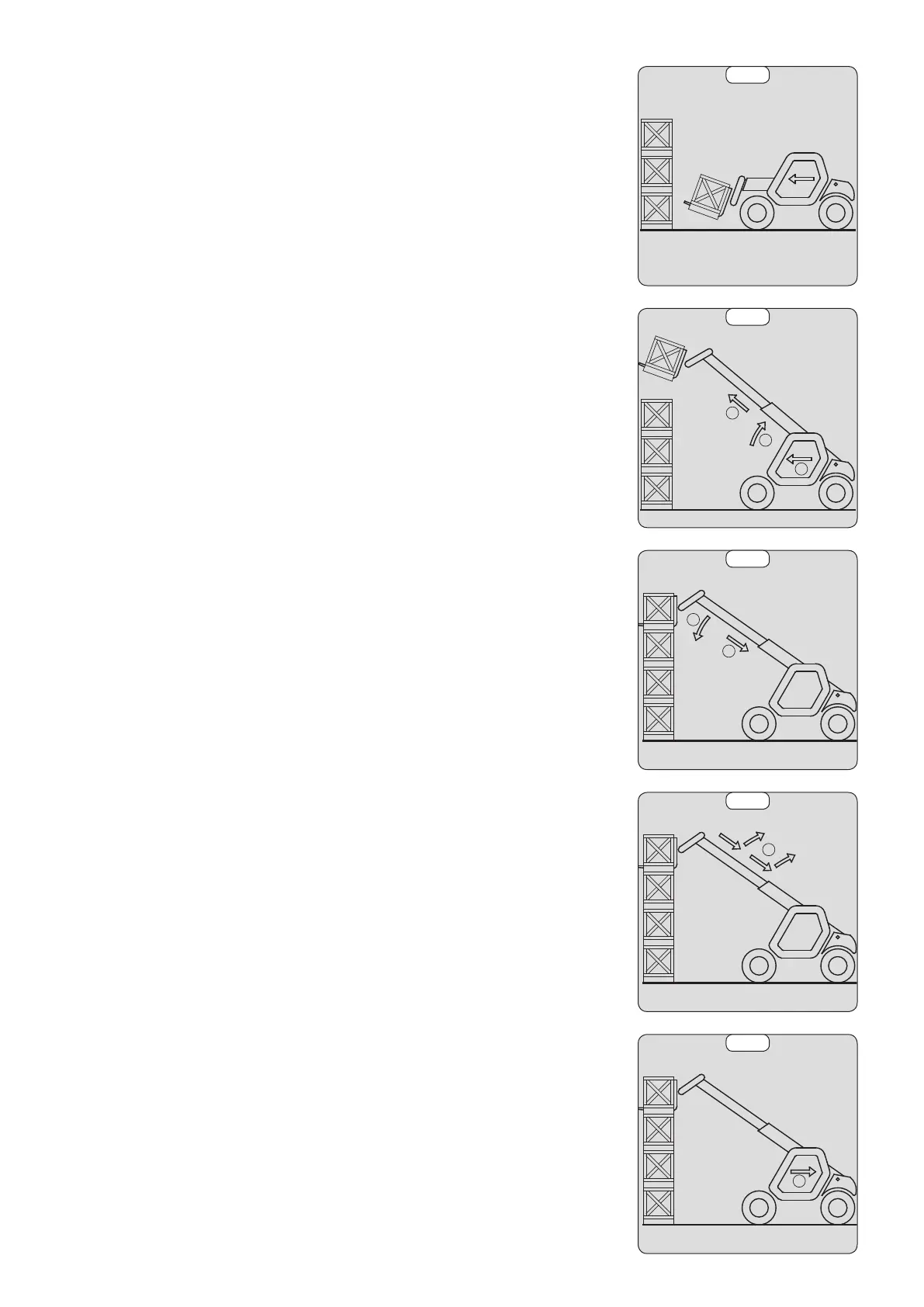

F6
1
2
3
F7
1
2
F8
1
F9
1
F10
