LOADING THE TRAILER

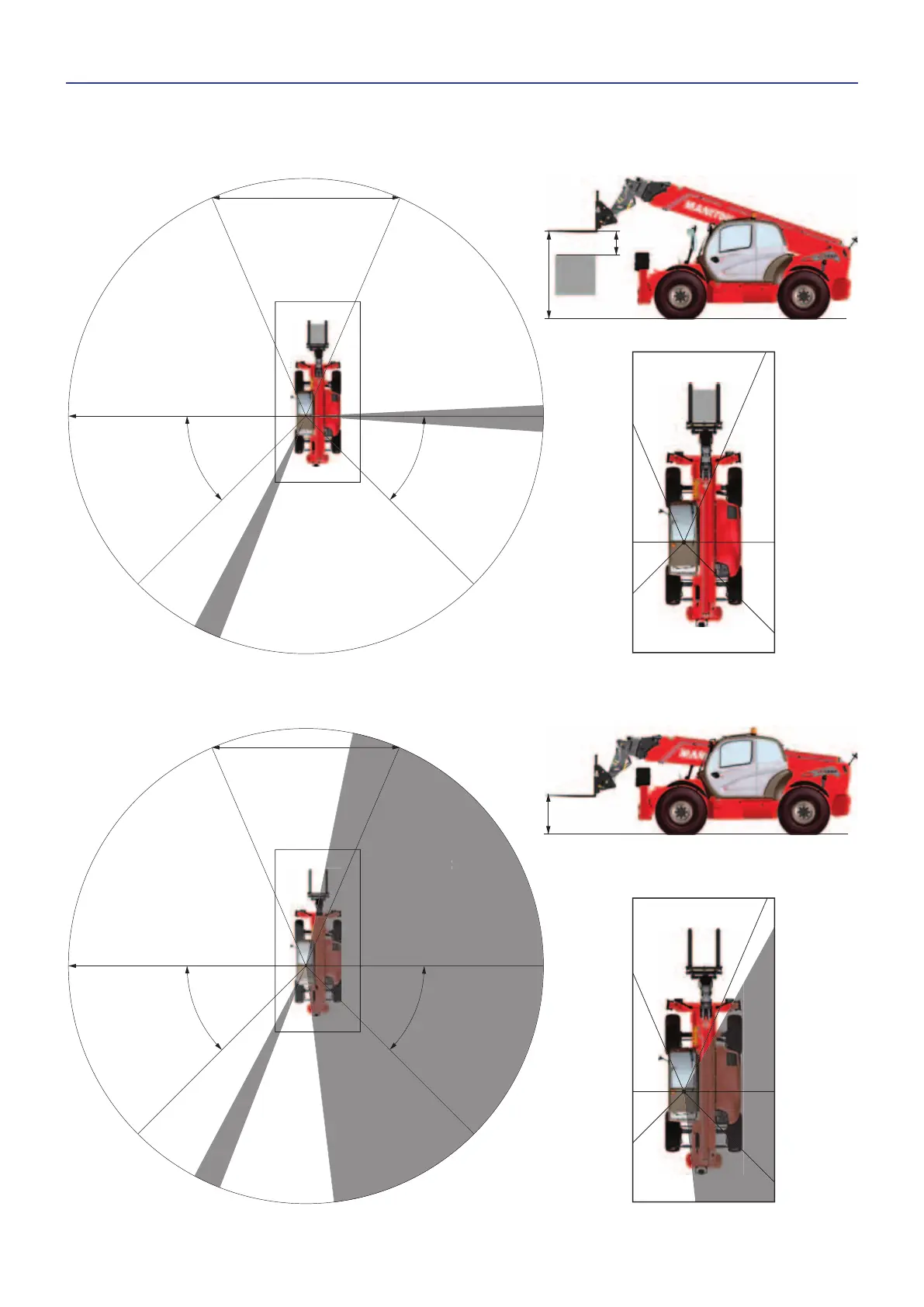

DIRECT AND/OR INDIRECT VISIBILITY BLIND SPOT ZONES
In accordance with EN15830, the two diagrams indicate blind spot zones on the visibility test circle (r 12m) and the 1m
rectangular zone around the lift truck.
HANDLING SUSPENDED LOADS
r 12 m
9,5 m
45° 45°
A
F
ED
BC
45°
E
C
2200 ± 50
600 mm
1 m3
1000 ± 50
r 12 m
9,5 m
45° 45°
A
F
ED
BC
B
D
A
C
E
F
B
D
A
C
E
F
