1 - DRIVER'S SEAT

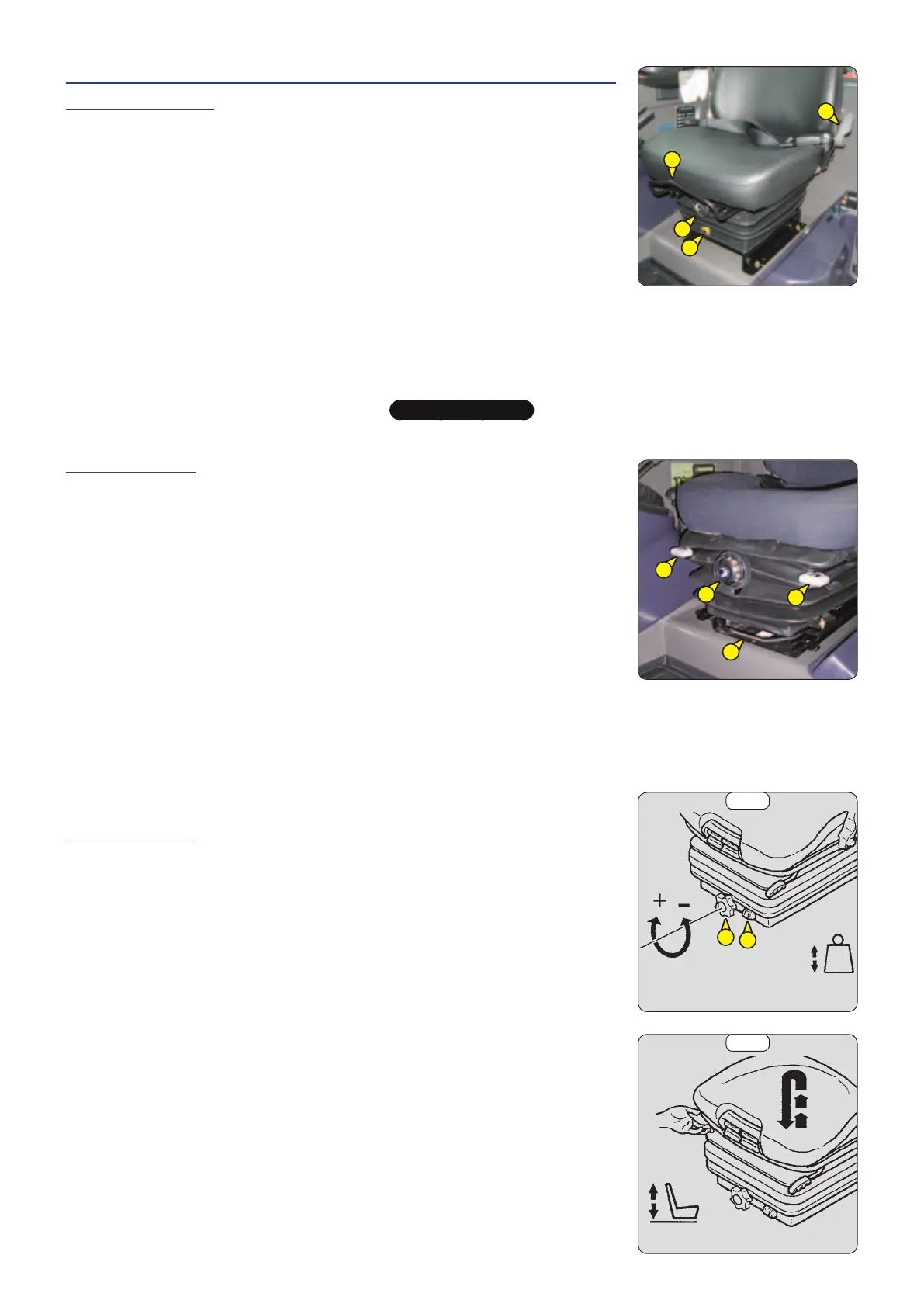

DRIVER’S SEAT (STANDARD)
DESIGNED FOR MAXIMUM COMFORT, THIS SEAT CAN BE ADJUSTED AS FOLLOWS.
LONGITUDINAL ADJUSTMENT
- Unlock the locking lever 1.
- Slide the seat to the desired position.
- Release the lever and be sure it returns to the lock position.
SEAT HEIGHT ADJUSTMENT
- Sit down correctly in the seat.
- Turn the knob 2 according to the desired height, clockwise to rise, anti-clockwise
to lower.
SEAT SUSPENSION ADJUSTMENT
- Make sure that the indicator 3 is in the green zone.
BACK-REST ANGLE ADJUSTMENT
- Hold the back-rest, push the lever 4 backwards and tilt the back-rest to the desired position.

IMPORTANT

If you do not support the back-rest when making adjustments, it swings completely forwards.
DRIVER'S SEAT (OPTION)
DESIGNED FOR MAXIMUM COMFORT, THIS SEAT CAN BE ADJUSTED AS FOLLOWS.
LONGITUDINAL ADJUSTMENT
- Pull lever 1 upwards.
- Slide the seat to the desired position.
- Release the lever and be sure it returns to the lock position.
SEAT CUSHION ADJUSTMENT
The front and the back of the seat cushion can be adjusted separately.
- To adjust the front, push the lever 2 downwards.
- Release it into one of the five possible positions.
- Same procedure to adjust the back by pulling the lever 2 upwards.
SEAT SUSPENSION ADJUSTMENT
- Turn the button 3 and adjust according to your weight.
BACK-REST ANGLE ADJUSTMENT
- Lean the back against the back-rest.
- Pull the lever 4 and place the back-rest into one of the possible positions.
DRIVER'S SEAT (OPTION)
DESIGNED FOR MAXIMUM COMFORT, THIS SEAT CAN BE ADJUSTED AS FOLLOWS.
WEIGHT ADJUSTMENT (FIG. A)
It is advised that the weight be adjusted when the driver is not sitting in the cab.
- Refer to graduation 1 of the seat.
- Turn handle 2 according to the driver's weight.
NOTE: To avoid any health problems, it is recommended that the weight setting is
checked and adjusted before starting the forklift truck.
SEAT HEIGHT ADJUSTMENT (FIG. B)
- Raise the seat to the desired position, until you hear the ratchet click. If you raise
the seat above the last notch (stop), the seat returns to the lowest position.
B
1
2
4
3
A
2
1
1
2
3
4
