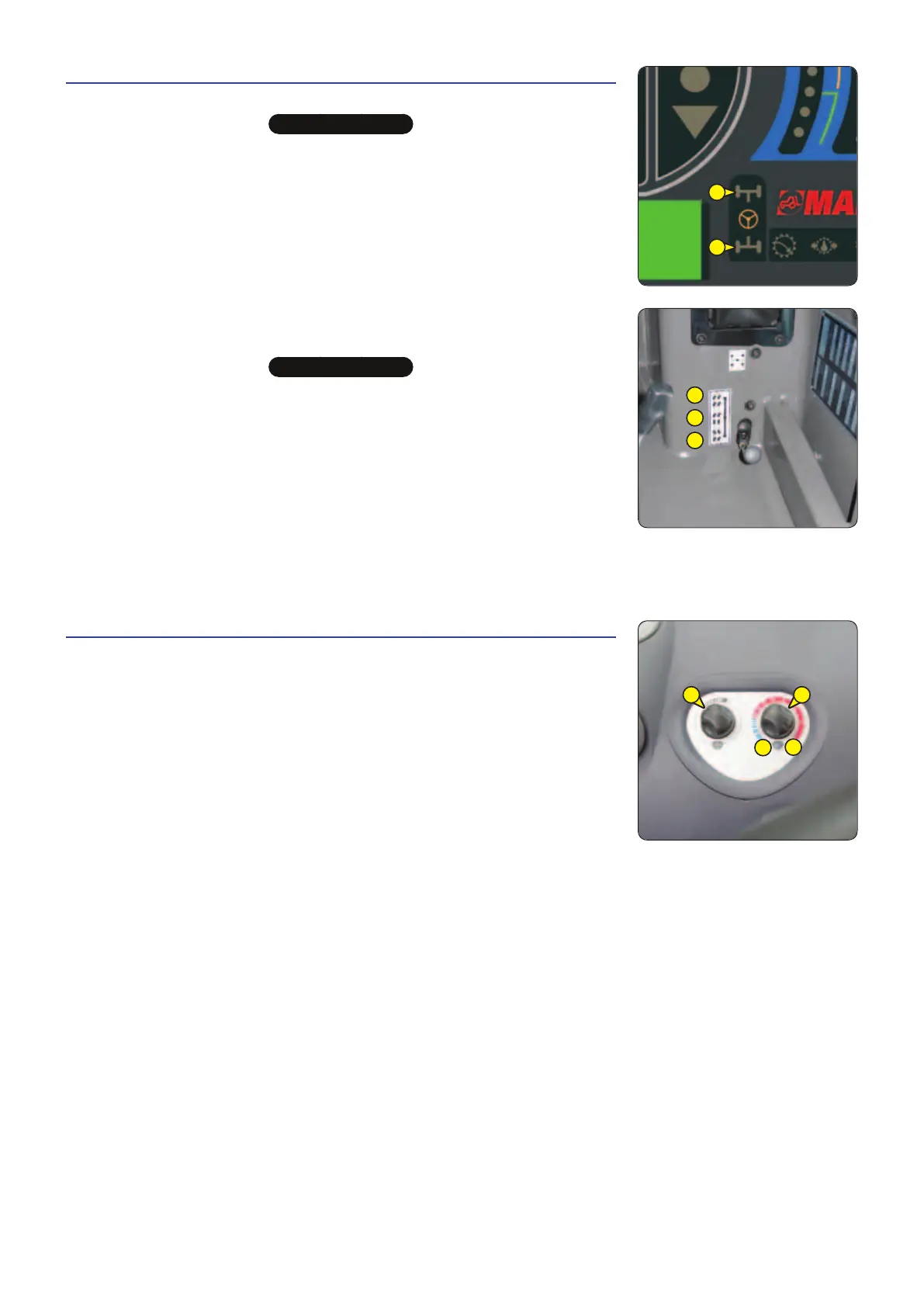

21 - STEERING SELECTION
A - GREEN WHEEL ALIGNMENT INDICATOR LIGHTS

IMPORTANT

Before selecting one of the three possible steering positions, bring all 4 wheels into alignment with the lift truck axis.
Never change the steering mode whilst driving.
These green lamps come on to indicate the alignment of the wheels in relation to the
lift truck. The A1 indicator lamp for the front wheels and the A2 indicator lamp for the
rear wheels.
B - STEERING SELECTION LEVER
• B1 - Front drive wheels (highway traffic).
• B2 - Front and rear drive wheels in opposite direction (short steering lock).
• B3 - Front and rear drive wheels in the same direction (crab steering).
CHECKING WHEEL ALIGNMENT

IMPORTANT

Before driving on roads, it is necessary to check the alignment of the rear wheels and to drive
infrontwheelsteeringmode.
The alignment of the rear wheels must be regularly checked done using the green indicator lamps,
whiledrivingthelifttruck.
In case of anomalies, consult your dealer.
- Shift the steering selection lever B into position B2 (short steering lock).
- Turn the steering wheel and bring the rear wheels into alignment until the A2
indicator lamp comes on.
- Shift the steering selection lever B into position B1 (highway traffic).
- Turn the steering wheel and bring the front wheels into alignment until lamp A1
lights up.
22 - HEATER CONTROL
A - FAN CONTROL
This 3-speed control allows the air to be ventilated through the air vents.
B - TEMPERATURE CONTROL
Adjusts the temperature inside the cab.
• B1 - The fan pumps in the air at ambient temperature.
• B2 - The fan pumps in warm air.
The intermediate positions allow the temperature to be adjusted.
A1
A2
B3
B1
B2
A B
B1
B2
647563 (22/08/2017) MT 1435/1440/1840 EASY 75D ST3B S1
