23 - AIR CONDITIONING CONTROLS (AIR CONDITIONING OPTION)

IMPORTANT

The air conditioning only works if the lift truck has been started up. When using your air conditioning unit you must work with the cab closed.
In winter: So as to ensure correct operation and complete efficiency of the air conditioning unit, start up the compressor once a week, if only for a short spell, so as to
lubricate the internal seals.
In cold weather: Warm the engine before switching on the compressor, so as to allow the coolant that has collected in a liquid state at the lowest point of the compressor
circuit to turn into gas under the effect of the heat given off by the engine, as the compressor is liable to be damaged by coolant in a liquid state.
If your air-conditioning does not seem to be working correctly, have it examined by your dealer (see: 3 - MAINTENANCE: F - EVERY 2000 HOURS OF SERVICE).
Never try to repair any faults yourself.

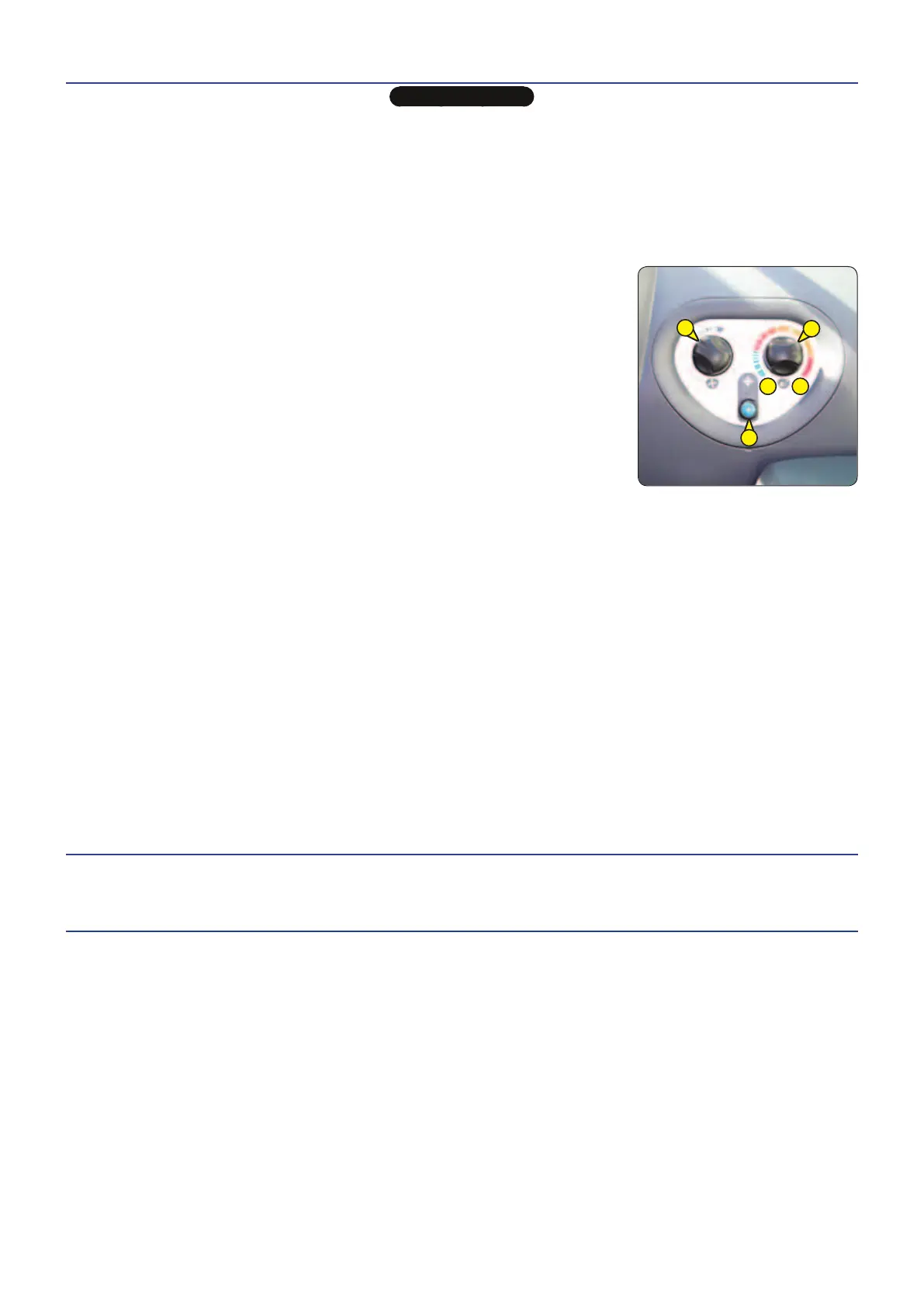

A - FAN CONTROL
This 3-speed control allows the air to be ventilated through the air vents.
B - TEMPERATURE CONTROL
Adjusts the temperature inside the cab.
• B1 - The fan pumps in cold air.
• B2 - The fan pumps in warm air.
The intermediate positions allow the temperature to be adjusted.
C - AIR CONDITIONING CONTROL
This control with a pilot light allows the air conditioning unit to be switched on.
HEATING MODE
- The controls must be adjusted in the following way:
• C - Control with pilot light off.
• B - At the required temperature.
• A - At the desired speed: 1, 2 or 3.
AIR CONDITIONING MODE
- The controls must be adjusted in the following way:
• C - Control with pilot light on.
• B - At the required temperature.
• A - At the desired speed: 1, 2 or 3.
DEMISTING MODE
- The controls must be adjusted in the following way:
• C - Control with pilot light on.
• B - At the required temperature.
• A - At speed 2 or 3.
- For optimum effectiveness, close the heating ventilators.
24 - HEATING VENTS
These swiveling heating vents, which can be shut off, allow you to direct and adjust the flow inside the cab.
25 - DEMIST VENTS
These vents allow the front windscreen and side windows to be demisted. For optimum efficiency, shut off the heating vents.
A
B
B1 B2
C
647563 (22/08/2017) MT 1435/1440/1840 EASY 75D ST3B S1
