G5 - LIFT TRUCK

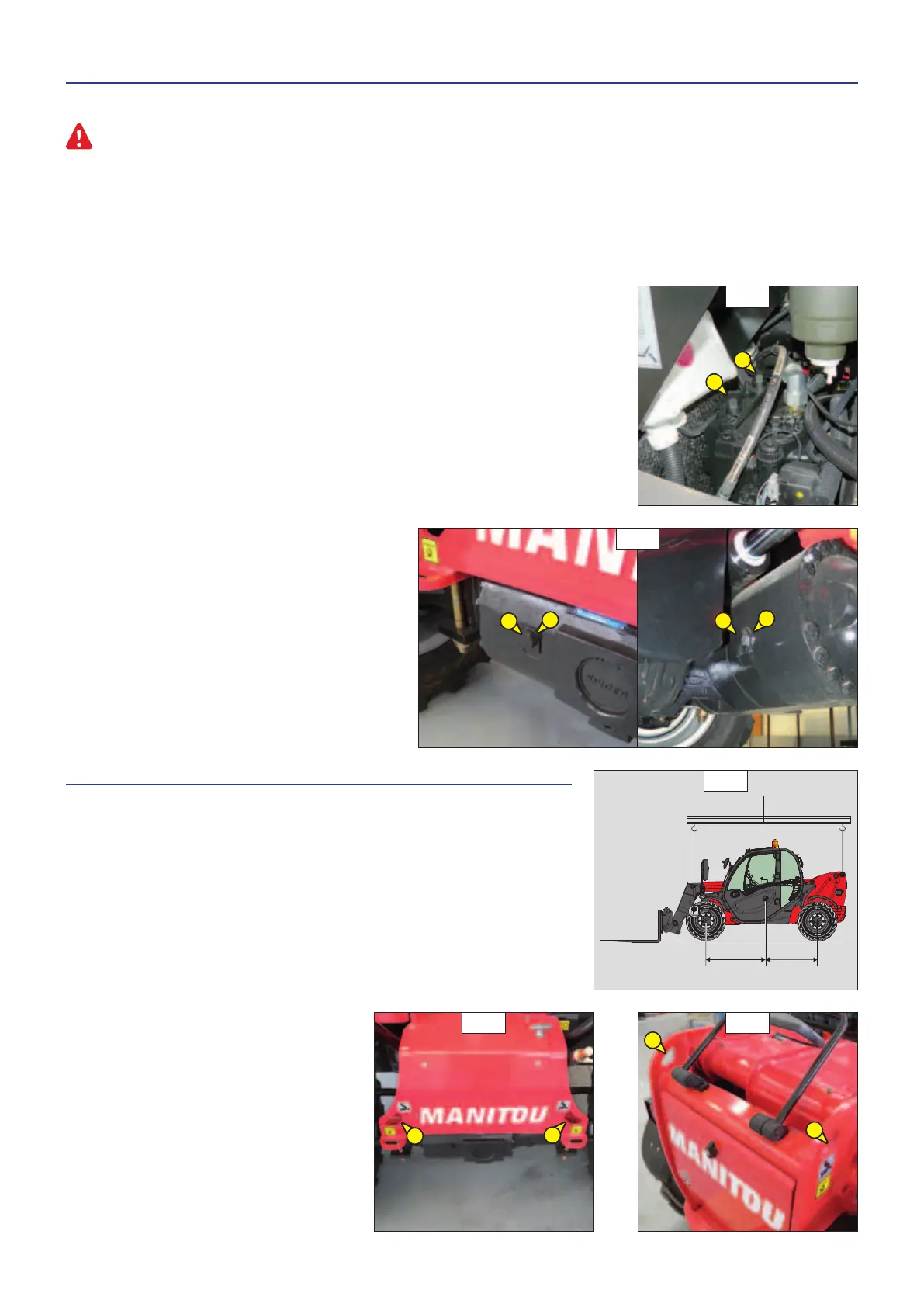

TOWING
If the lift truck is not on horizontal ground, chock its wheels it to prevent it rolling down the slope.
The lift truck must be towed at very slow speed (less than 5 km/h) over the shortest possible distance (less than 100 m).
For towing a lift truck, the high pressure limiters must be unlocked to avoid damaging the hydrostatic transmission, and the parking brake
on the front axle must be released.
- Switch on lift truck ignition.
- Set the forward/reverse selector to neutral.
- Release the parking brake.
UNLOCKING THE HIGH PRESSURE LIMITERS
- Open the I.C. engine bonnet.
- Loosen nuts 1 (fig. G5/1) on the hydrostatic pump by no more than three turns.
RELEASING THE PARKING BRAKE ON THE FRONT AXLE
- Unscrew the screws 2 (fig. G5/2) on the front axle, remove the shims 3 (fig. G5/2) and fully
retighten the screws 2 (fig. G5/2).
TOWING
- Switch on the warning lights.
- If the I.C. engine is not running there will be no steering or braking assistance. Operate the steering
and pedal slowly avoiding sudden jerky movements.
- After towing, retighten screws 1 (fig. G5/1) (tightening torque 70 N.m).
- Unscrew the screws 2 (fig. G5/2), refit the 3 shims (fig.
G5/2) and retighten the screws 2 (fig. G5/2) (tightening
torque 95 - 115 N.m).
G6 - LIFT TRUCK
SLINGING
- Take into account the position of the lift truck centre of gravity for lifting (fig. G6/1).
A = 1220 mm B = 1080mm
- Place the hooks in the fastening points provided (fig. G6/2 and G6/3).
1
1
G5/1
1
1
G5/2
2
2
3
3
G6/3G6/2
AB
G6/1
647421 (22/08/2017) MT-X 625 Série 2-E3 + COMFORT
