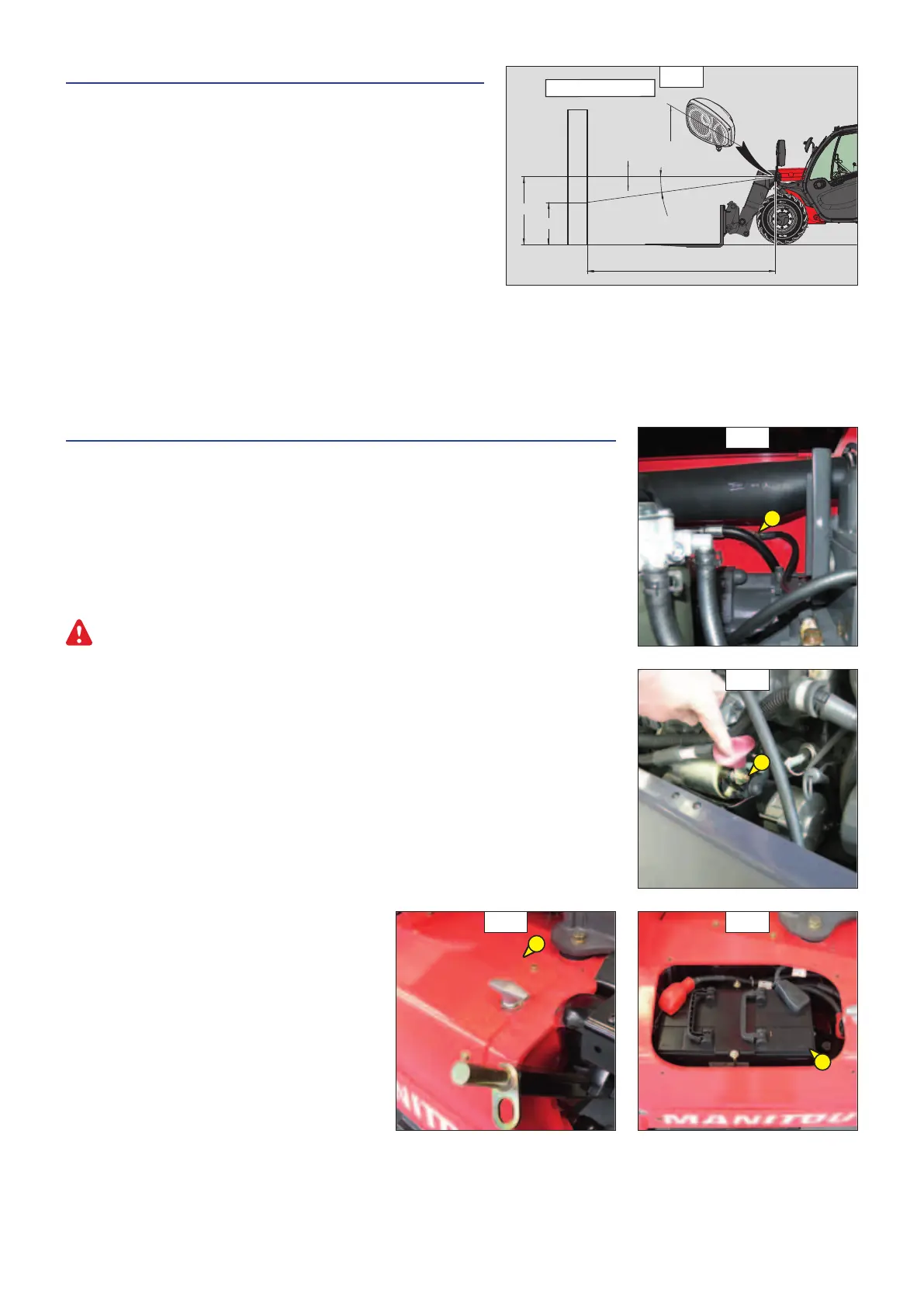

G3 - FRONT HEADLAMPS
ADJUSTING
RECOMMENDED SETTING
(as per standard ECE-76/756 76/761 ECE20)
Set to - 2 % of the dipped beam in relation to the horizontal line of the
headlamp.
ADJUSTING PROCEDURE
- Place the lift truck unloaded and in the transport position and
perpendicular to a white wall on flat, level ground (fig. G3).
- Check the tyre pressures (see: 2 - DESCRIPTION: CHARACTERISTICS).
- Place the forward/reverse selector in neutral and release the parking
brake.
Calculating the height of the dipped beam (h2)
• h1 = Height of the dipped beam in relation to the ground.
• h2 = Height of the adjusted beam.
• l = Distance between the dipped beam and the white wall.
G4 - BREAKDOWN OF BATTERY
CHANGE
- Open the I.C. engine bonnet.
- Bring a floating battery of the same type as the one used for the lift truck and battery cables.
- Connect the floating battery according to the correct polarity with the (-) on the engine earth
1 (fig. G4/1) and the (+) on the (+) of starter 2 (fig. G4/2).
- Start the lift truck and remove the cables as son as the I.C engine is running.
- Raise the jib.
- Lift out protective casing 3 (fig. G4/3).
- Replace battery 4 (fig. G4/4).
Handling and servicing a battery can be dangerous, take the following precautions:
- Wear protective goggles.
- Keep the battery horizontal.
- Never smoke or work near a naked flame.
- Work in a well-ventilated area.
- In the event of electrolyte being spilled onto the skin or splashed in the eyes, rinse thoroughly with
cold water for 15 minutes and call a doctor.
G4/2
2
G4/3
3
G4/1
1
G4/4
4
+%
-%
l
h1
h2
-2%
h2 = h1 - (l x 2 / 100)
h1
G3
647421 (22/08/2017) MT-X 625 Série 2-E3 + COMFORT
