Manitou MT-X 625 2-E3 Series User Manual

3-21

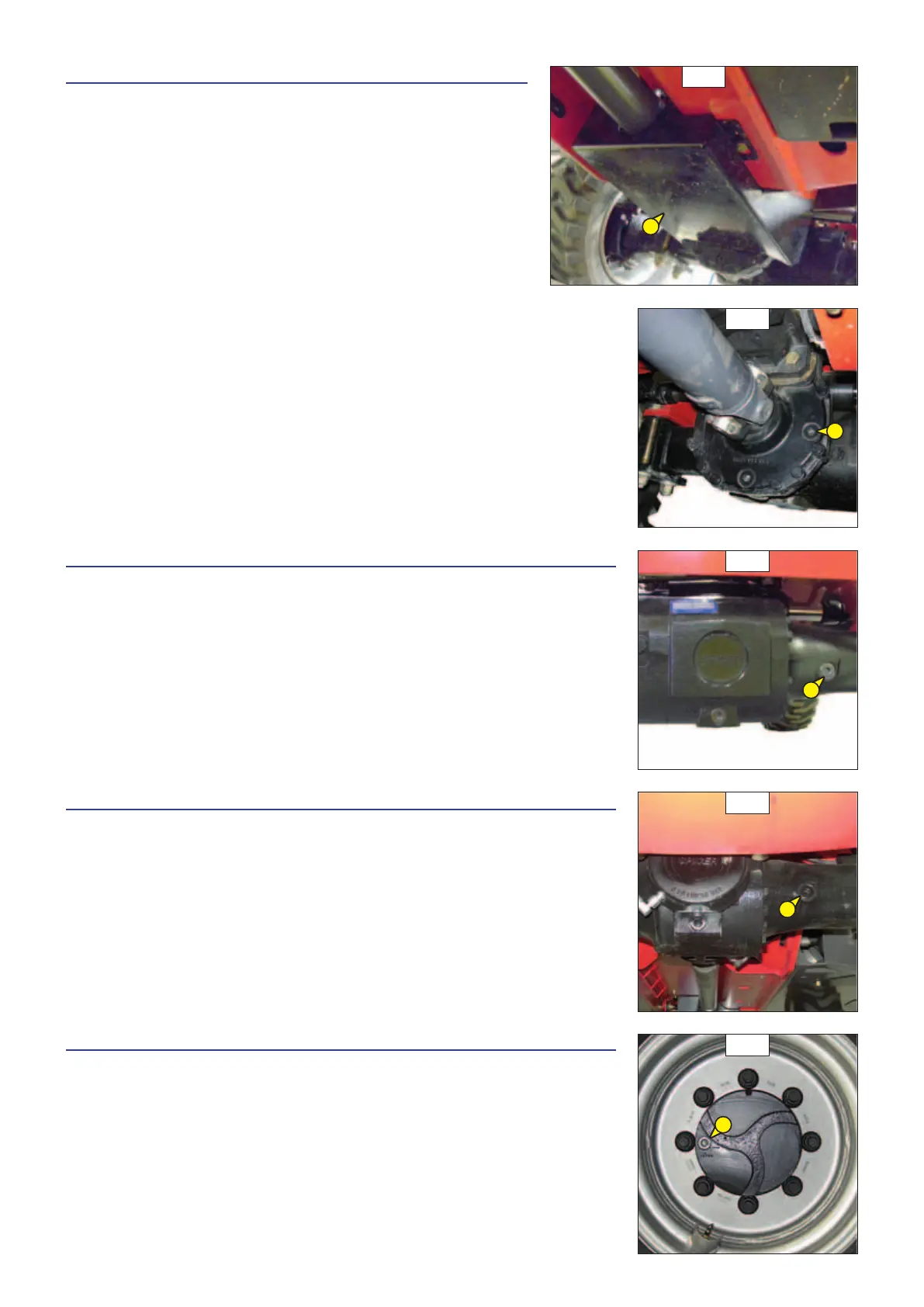

C5 - TRANSFER BOX OIL LEVEL
CHECK
Place the lift truck on level ground with the I.C. engine stopped.
- Remove the access panel 1 (fig. C5/1).
- Remove level plug 2 (fig. C5/2). The oil should be flush with the edge of the
hole.
- If necessary, add oil (see: 3 - MAINTENANCE: LUBRICANTS AND FUEL) by the
same hole.
- Replace and tighten the level plug 2 (fig. C5/2) (tightening torque 34 to 49 N.
m).
- Refit access panel 1 (fig. C5/1).
C6 - FRONT AXLE DIFFERENTIAL OIL LEVEL
CHECK
Place the lift truck on level ground with the I.C. engine stopped.
- Remove level plug 1 (fig. C6). The oil should be flush with the edge of the hole.
- If necessary, add oil (see: 3 - MAINTENANCE: LUBRICANTS AND FUEL) by the same hole.
- Replace and tighten the level plug 1 (fig. C6) (tightening torque 34 to 49 N.m).
C7 - REAR AXLE DIFFERENTIAL OIL LEVEL
CHECK
Place the lift truck on level ground with the I.C. engine stopped.
- Remove level plug 1 (fig. C7). The oil should be flush with the edge of the hole.
- If necessary, add oil (see: 3 - MAINTENANCE: LUBRICANTS AND FUEL) by the same hole.
- Replace and tighten the level plug 1 (fig. C7) (tightening torque 34 to 49 N.m).
C8 - FRONT AND REAR WHEELS REDUCERS OIL LEVEL
CHECK
Place the lift truck on level ground with the I.C. engine stopped.
- Check the level on each wheel reducer.
- Place level plug 1 (fig. C8) in the horizontal position.
- Remove the level plug ; the oil should be flush with the edge of the hole.
- If necessary, add oil (see: 3 - MAINTENANCE: LUBRICANTS AND FUEL) by the same hole.
- Refit and tighten the level plug (tightening torque 34 to 49 N.m).
C5/2
2
C6
1
C5/1
1
C7
1
C8
1
647421 (22/08/2017) MT-X 625 Série 2-E3 + COMFORT
