50960025/CP0514 34 PRINTED IN U.S.A.
Windshield Washer Fluid Reservoir: Located out-
side the right front of the operator station as shown.
The fluid level is visible through the reservoir.

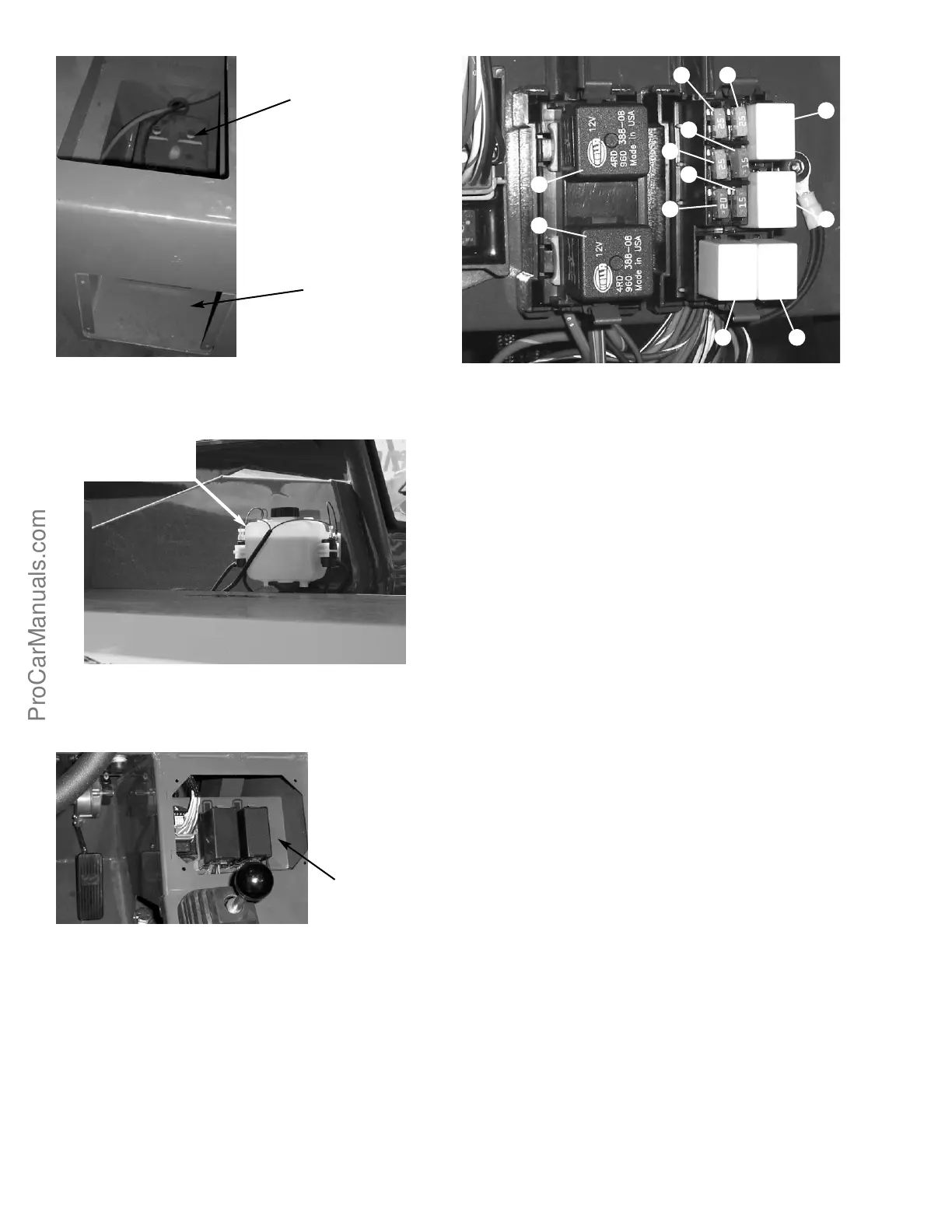

Fuse and Relay Compartment: This compartment is
located under the load chart panel. Remove the four
screws to gain access to the fuses and relays.
Fuses and Relays Functions: Refer to the illustration
and following description for the fuse and relay func-
tions.
FUSES:
1. 15 AMP fuse: Ignition Switch, Horn, Brake Lights,
and Clutch Cutout
2. 20 AMP fuse: Transmission, Park Brake, PWP,
Steer Mode, and Backup Alarm
3. 15 AMP fuse: Lights, Ether, and Outriggers
4. 25 AMP fuse: Heater and Gauges
5. 25 AMP fuse: Top Wiper Motor
6. 25 AMP fuse: Front Wiper Motor
RELAYS:
A. 20/40 AMP change-over relay: Ignition
B. 20/40 AMP change-over relay: Ignition
C. 20 AMP relay: Front Wiper
D. 20 AMP relay: Park Brake
E. 20 AMP relay: Lights
F. 20 AMP relay: Top Wiper
ATTACHMENT TOOLS
Manitou Americas offers a versatile range of attach-
ment tools to meet various lifting and material-han-
dling applications. Contact your Manitou Americas
dealer for specifications and ordering information.
ACCESSORIES
Manitou Americas offers a range of special accessories
for this machine. Contact your Manitou Americas deal-
er for specifications and ordering information.
NOTE: All accessories are field-installed unless
otherwise noted. Information and parts for
installing accessories will be provided by the
Manitou Americas or Manitou Americas
Telescopic Handler dealers.
B
6
4
2
1
3
5
C D
E
F
A
Fuse and
Relay Access
Electrolyte
Access
Removal
Access
Windshield Washer
Fluid Reservoir
