50960025/CP0514 54 PRINTED IN U.S.A.
GREASING
Refer to the illustrations and listings for fitting loca-
tions. Wipe dirt from the fittings before greasing them
to prevent contamination. Replace any missing or dam-
aged fittings. To minimize dirt build-up, avoid exces-
sive greasing.
BASIC MACHINE GREASE FITTING
LOCATIONS
Every 50 Hours (or weekly)
Refer to the illustrations on the facing page for loca-
tions.
--- BOOM AREA ---
1. Boom-to-frame upright pivot pins (2)
2. Rod end slave cylinder pivot pins (2)
3. Rod end lift cylinder pins (2)
4. Extend cylinder pin
5. Chain sheaves pins, (2)
6. Dynattach-to-boom nose pivot pin
7. Tilt cylinder pivot pins (2)
8. Boom slide pads - as required, front and rear
--- CHASSIS AREA ---
9. Brake pedal linkage
10. Wheel spindle pins (4 per axle)
11. Stabilizer cylinder pivot pins (3)
12. Axle pivot pins (2 per axle)
13. Drive shafts (3 per drive shaft)
14. Leveling cylinder pivot pins (2)
15. Base end lift cylinder pivot pins (2)
16. Base end slave cylinder pivot pins (2)

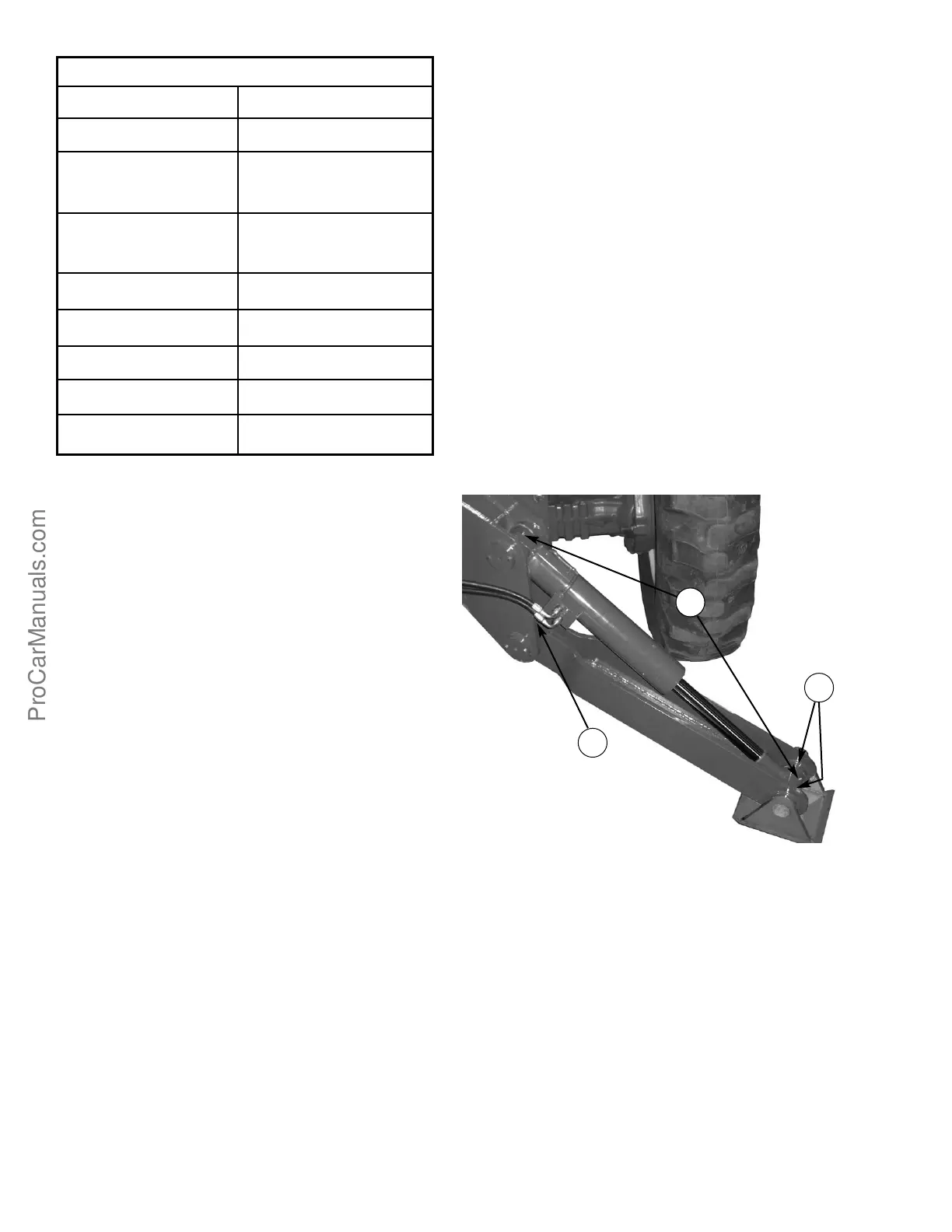

--- OUTRIGGERS ---
Refer to the illustration below.
17. Outrigger pad (2 per pad)
18. Outrigger cylinder (2 per cylinder)
19. Outrigger leg pivot (1 per leg)
17
19
18
FILTER REFERENCE CHART
TYPE PART NUMBER
Engine Oil 808000
Engine Fuel Primary 50220174
Secondary 50220173
Air Filter Primary 809825
Secondary 809826
Crankcase Vent 50220168
Hydraulic Return 808005
Hydraulic Strainer 808006
Transmission Oil 808004
Cab Ventilation 51200000
