PRINTED IN U.S.A. 49 50960025/CP0514

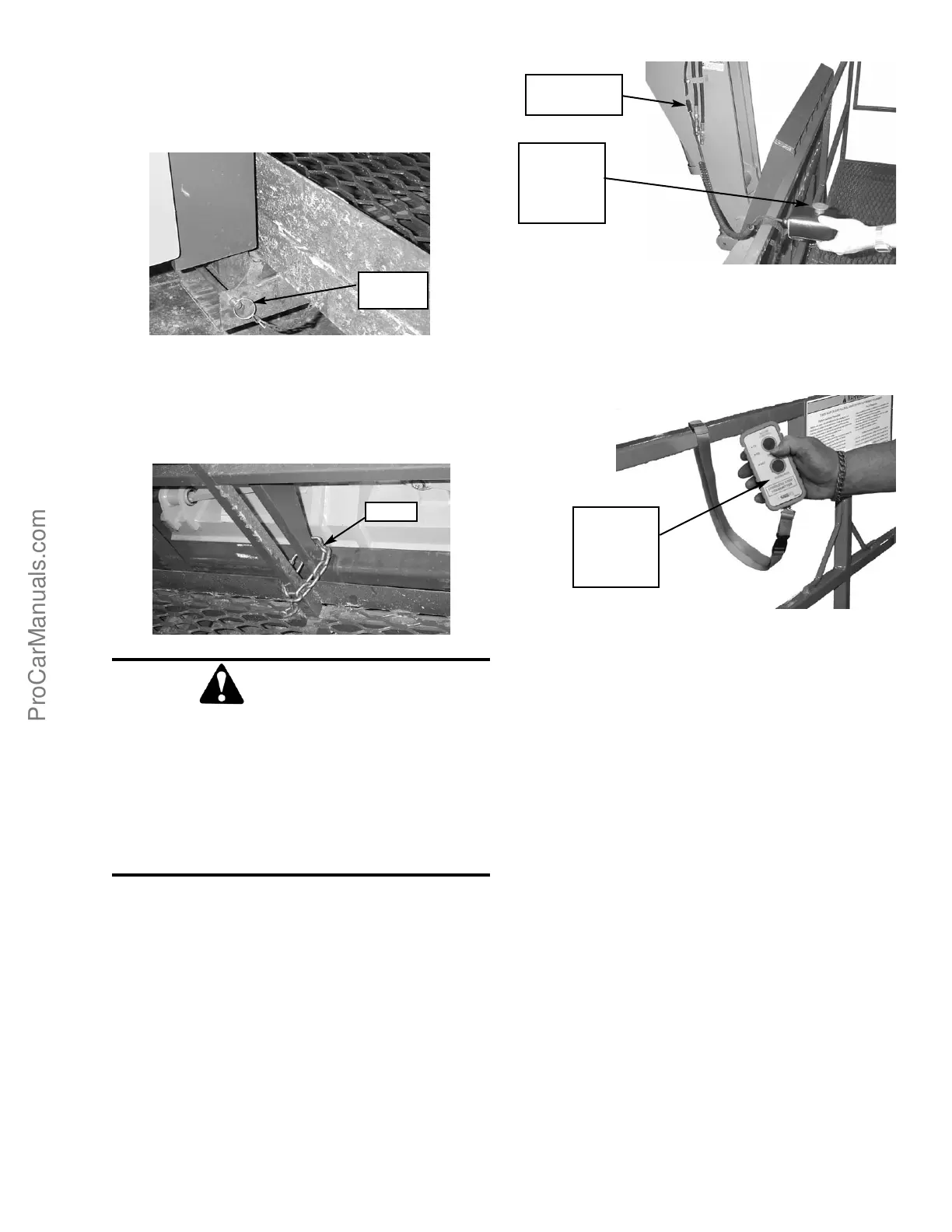

2. After the forks are fully engaged in the PWP,
secure the PWP to the forks. This can be accom-
plished by means of a retaining pin behind the
heel of the forks, as shown.
3. Secure the forks from pivoting upward in case the
PWP is lowered onto an obstruction. This can be
accomplished by using the chain supplied with
the PWP, to secure the lower portion of the PWP
to the bottom of the carriage, as shown below.
4. For machines with a 42-foot or 44-foot boom:
Connect the coiled wire from the remote shut-
down switch to the connector on the end of the
boom. Secure the remote shutdown switch to the
PWP using the strap attached to the switch, as
shown.
5. For machines with a 55-foot boom: The remote
shutdown switch is wireless-operated. Secure the
remote shutdown switch to the PWP using the
strap attached to the switch, as shown.
6. Secure the lanyard from the body harness to the
PWP or the boom. Each person in the PWP should
have a body harness with a lanyard attached to the
PWP.
Elevating Personnel
This Telescopic Handler is primarily intended for use
as a material handler. It should only be used to elevate
personnel if it is equipped with the (optional) PWP
System when there is no other practical option. If this
machine is to be used to elevate personnel, then use
only an approved work platform, lift personnel only
with the PWP System activated, and follow the
“Mandatory Work Platform Safety Rules” (p. 15,
Safety chapter).
If this Telescopic Handler is equipped with a PWP
System and is to be used for elevating personnel, the
system must be activated, by the "PWP System" mode
switch, which is located in the instrument and switch
panel. To activate the system, apply and hold the ser-
Chain
Retaining
Pin
WARNING
The PWP must meet ANSI/ITSDF B56.6-2005,
Section 8.24. (See page 16 in the Safety chap-
ter for PWP design requirements.) If the PWP
being used does not offer means to secure the
PWP to the forks and to secure the forks from
pivoting, as shown in steps 2 and 3, then an
alternate method must be used.
PWP
Remote
Shutdown
Switch
Electrical
Connection
Remote Shutdown Switch
with Coiled Wire Connector
Wireless Remote Shutdown Switch
on 55’ Model
PWP
Remote
Shutdown
Switch
To Next Page
