50960025/CP0514 24 PRINTED IN U.S.A.

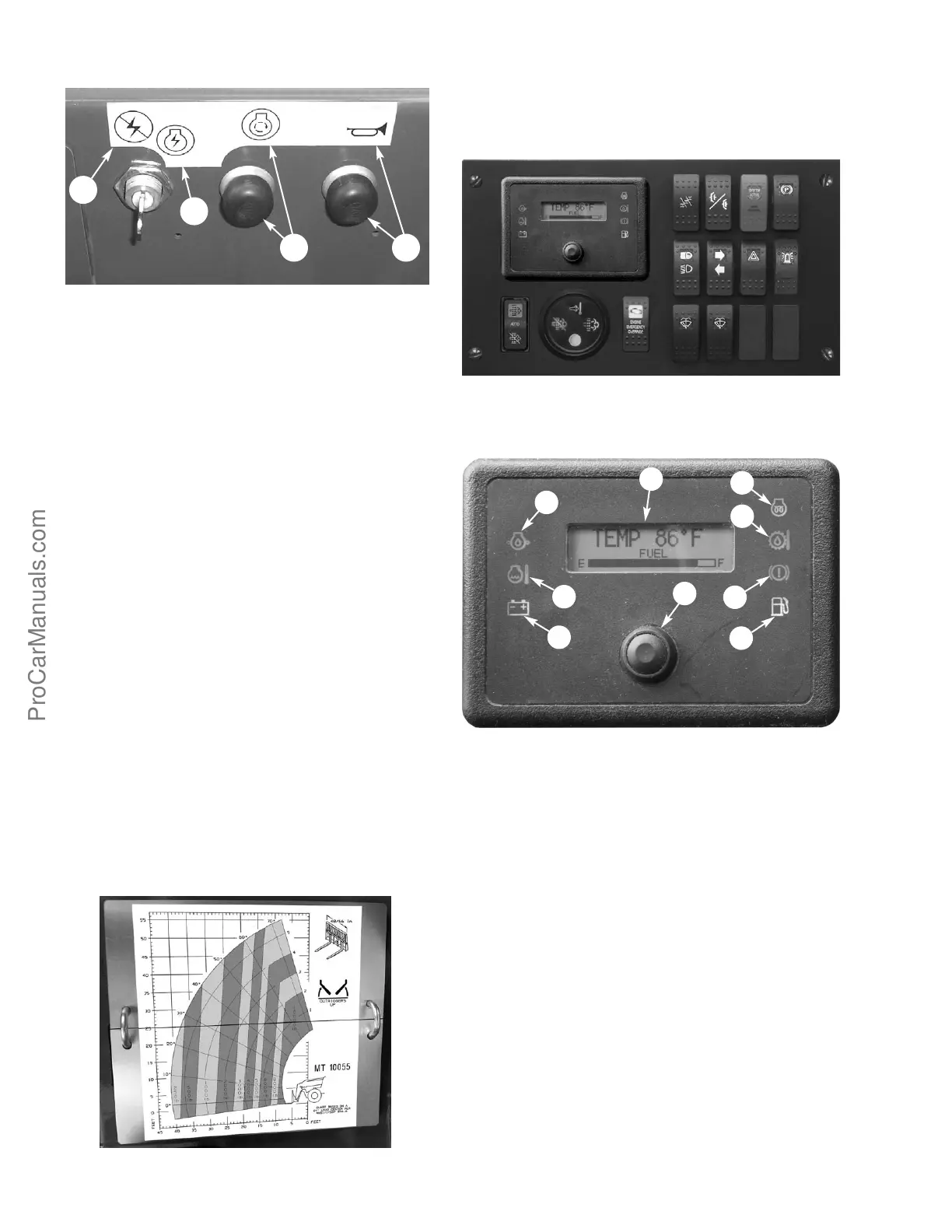

INSTRUMENT AND SWITCH PANEL
Located to the right of the steering wheel, this panel
contains the instrument gauges, indicator lamps and
function switches.
Instrumentation
A - Multi-Function Display Screen: This screen dis-
plays the following functions:
• fuel level at all times,
• engine coolant temperature,
• engine oil pressure,
• voltmeter
• hourmeter
• 250 hour maintenance reminder
• error fault codes
B - Scroll Button: Pressing this button changes the
function displayed in the gauge display panel.
A1 - Fuel Level Gauge: The fuel level is displayed at
all times in the lower portion of the display. It indicates
the amount of fuel remaining in the fuel tank.
DASH PANEL AREA
A1 - Key Switch OFF: When the key is vertical in the
keyswitch, power from the battery is disconnect-
ed to the control and instrument panel electrical
circuits. Also, this is the only position in which
the key can be inserted and removed.
A2 - Key Switch ON: When the key is turned one
position clockwise from the vertical (OFF) posi-
tion, power from the battery is supplied to all con-
trol and instrument panel electrical circuits. All
indicator lamps in the instrument panel, exhaust
filter gauge and switch and the engine emergency
override switch will illuminate momentarily as a
lamp check.
NOTE: If the engine requires repeated attempts
to start, the key MUST be returned to the OFF
position between starting attempts to prevent bat-
tery run down.
B - Start Button: With key switch in ON position,
press the button to activate the starter. Release it
as soon as the engine starts.
C - Horn Button: With the key switch ON, press the
horn button to activate warning sound.
Load Zone Charts: A series of flip charts show lift
height and reach limits relative to the load weight
being handled with various attachment tools.
Instrument and Switch Panel
A
B
C
G
H
I
D
E
Ignition Switch, Start and Horn Button
A1
CB
A2
F
