HYDRAULIC SYSTEM 14000 SERVICE MANUAL
2-12
Published 09-10-14, Control # 065-24

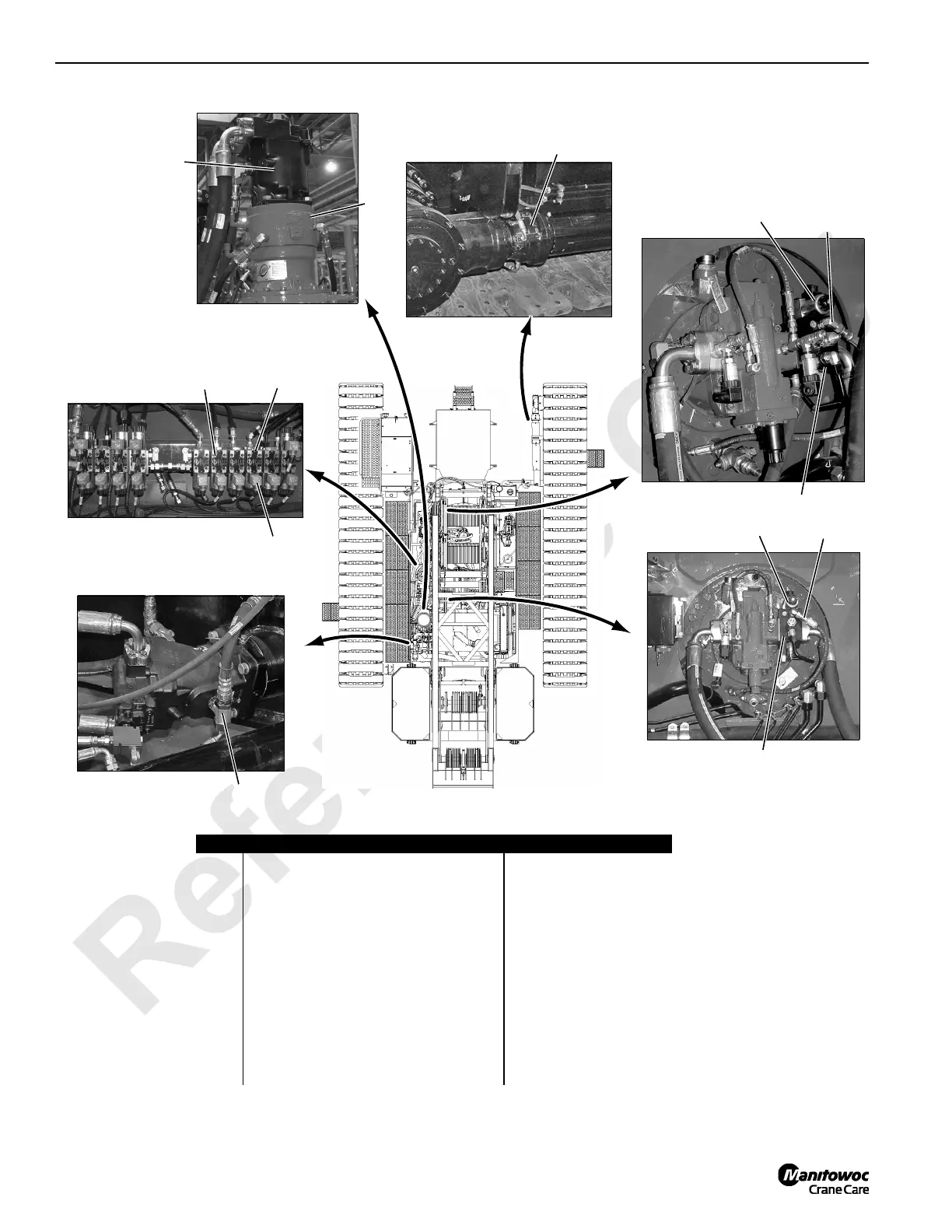

FIGURE 2-13
P2271
4
P2381
P2252a
P2370
7b
6b
P2298
7a
6a
9b
9a
P2378
Left Side Enclosure
14COM5-2
2
3
5
8a
8b
1
Item Description Description Area
1 Swing Motor Case Drain Ports
2 Load Drum Motors (1 each drum) Case Drain Ports
3 Boom Hoist Motor Case Drain Ports
4 Travel Motors (2 places) Case Drain Ports
5 Electrical (DIN) Connector (typical) Brake Solenoid Valve
6a Swing Brake solenoid Valve
6b Swing Brakes
7a Travel Brake Solenoid Valves
7b Travel (2 places) Brakes
8a Load Drums (typical 1 motor each) Brake Solenoid Valves
8b Load Drum (1 each drum) Brakes
9a Boom Hoist (1 motor) Brake Solenoid Valves
9b Boom Hoist Brakes
