POWER TRAIN 14000 SERVICE MANUAL

7-8

Published 09-10-14, Control # 065-24

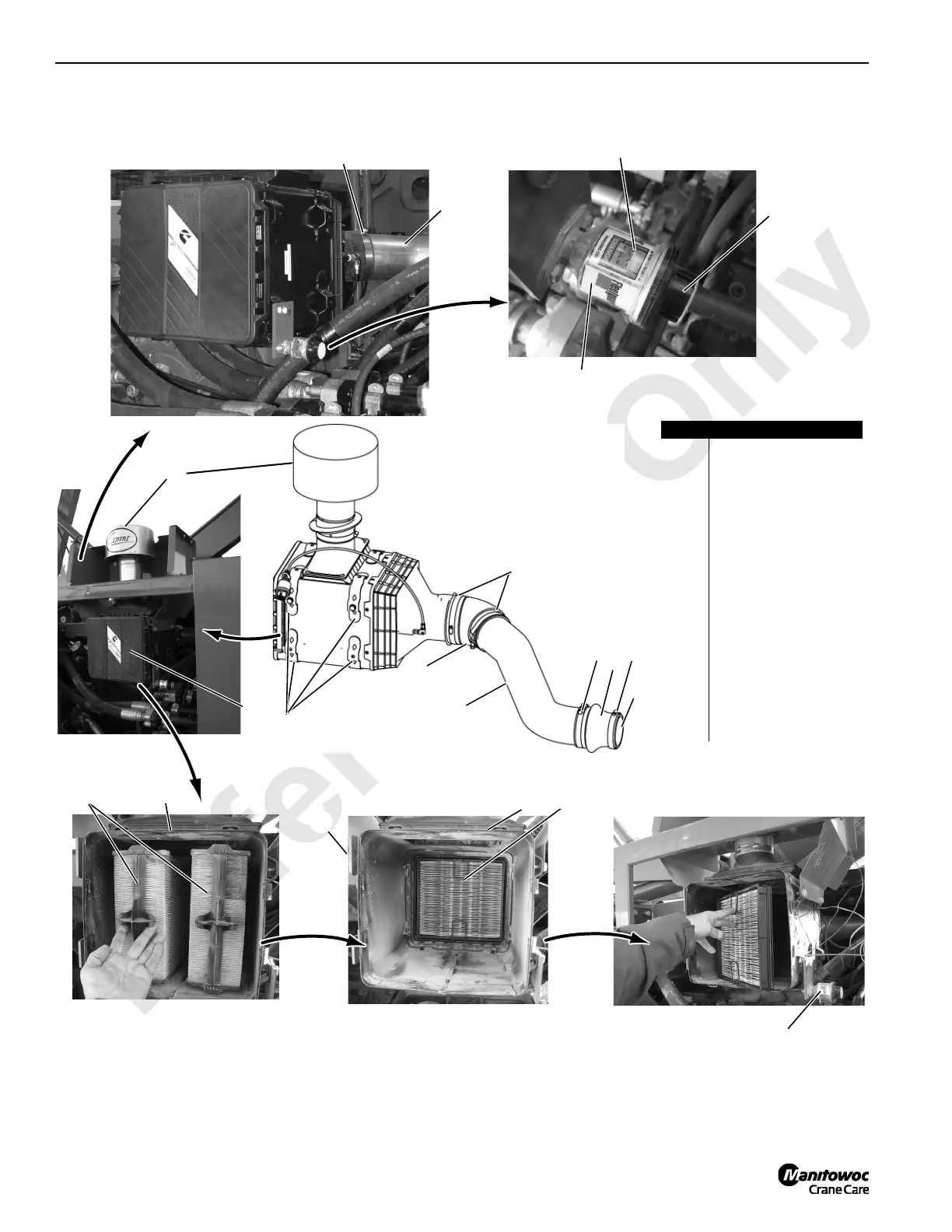

FIGURE 7-5

Item Description

1 Air Cleaner Assembly

1a Service Cover

1b Latch

1c Primary Filter (2)

1d Secondary Filter

1e Housing

2 Air Inlet Cap with

Pre-Cleaner

3Clamp

4 Rubber Reducer

5 Rubber Elbow

6Steel Tube

7 Mounting

8 Service Indicator

8a Service Window

8b Reset Button

9Steel Tube

7 (8 places,

Secondary Filter Removal Tabs

4 on opposite side)

Right Side of Upperworks

IMG_4774

IMG_6048

81007947

IMG_6041

IMG_5656

IMG_5658

IMG_5661

Current Production Tier 3/4
