14000 SERVICE MANUAL POWER TRAIN
7

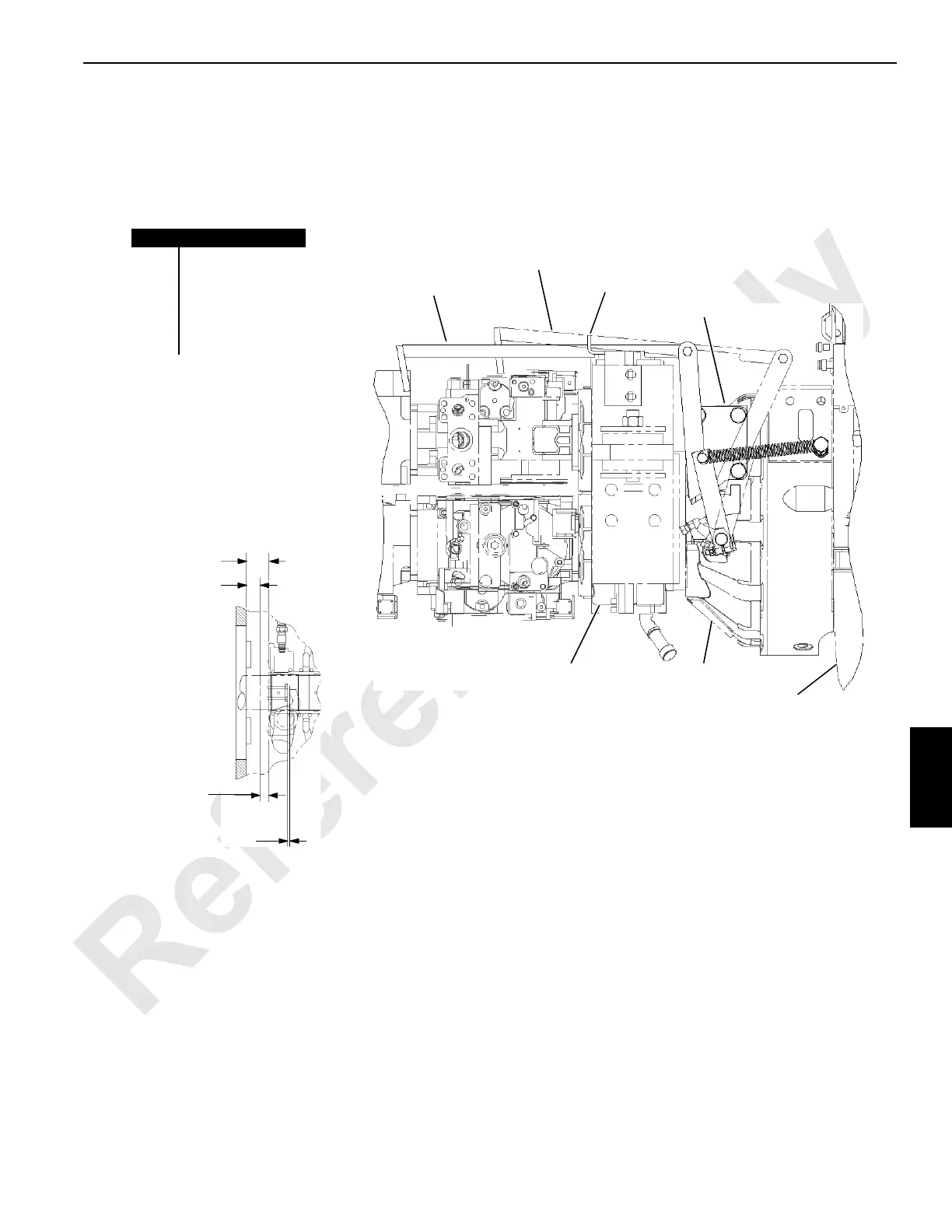

FIGURE 7-6
View From Rear of Crane
Item Description
1 Handle
2 Latch
3Engine
4Clutch
5 Hand Hole Cover
6Pump Drive
1 – DISENGAGED
1 – ENGAGED
3
14CSM7-4
14CSM7-4b
2
4
6
4
Engaged
Disengaged
0.5 in (12.7 mm) to
0.56 (14.2 mm)
Release Travel
Free Travel Between
Yoke and Wear Pads
0.13 in (3,3 mm)
Clutch
Adjustment
