POWER TRAIN 14000 SERVICE MANUAL
7-22
Published 09-10-14, Control # 065-24
19
o
43
o
View B
Inlet End
Item Description
1 Lifting Hook
2 Temperature Sensor 1
3 Temperature Sensor 2
4 Lifting Hook Band
5 Inlet V-Band Clamp
6 Pressure Sensor
7 Outlet V-Band Clamp
8 DPF Outlet Section
9 DPF Center Section
10 DPF Inlet Section
M100030
M100017
View A
9
3
2
6
1
8
10
4
5
7

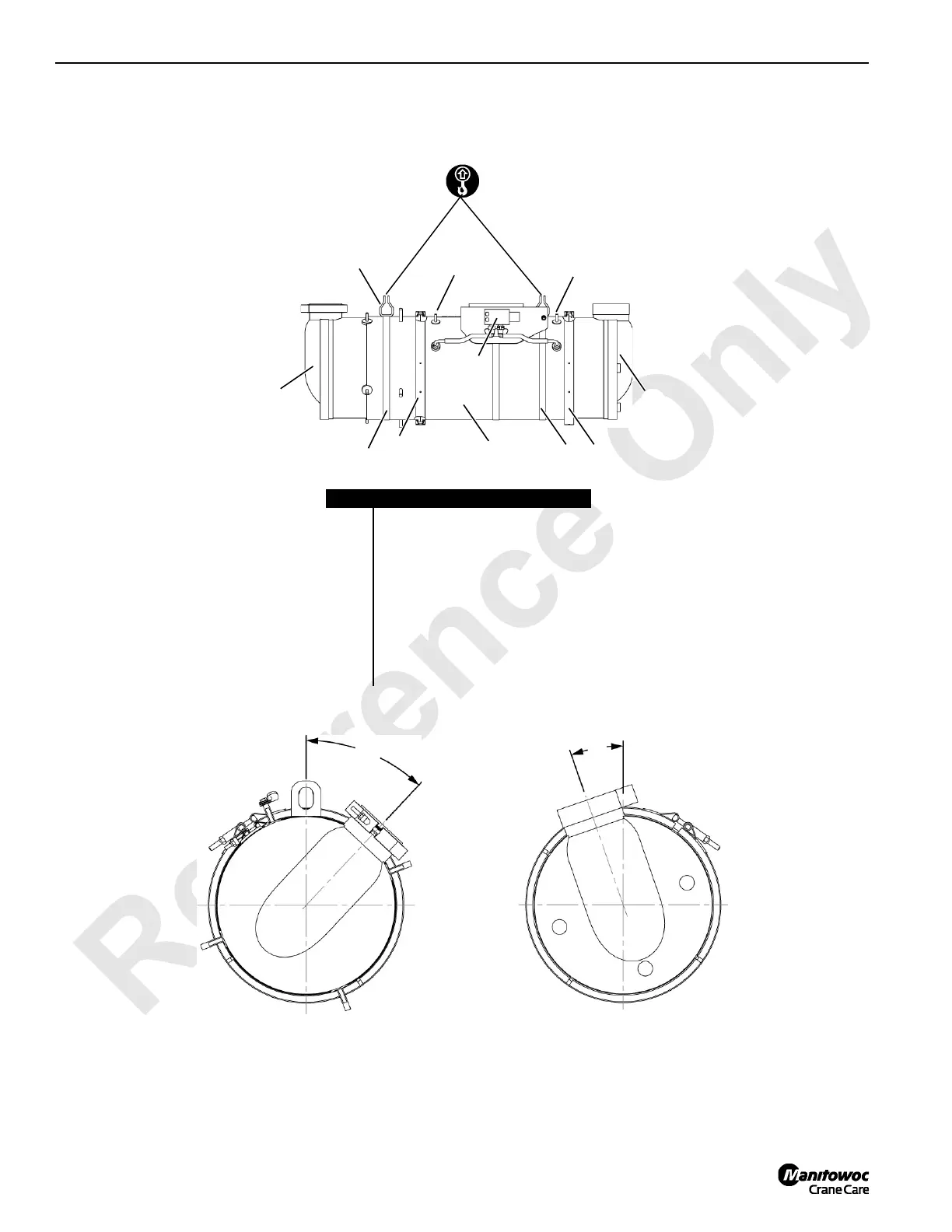

FIGURE 7-15
4
View C
Outlet End
M100029
