Manitowoc 14000 Service Maintenance Manual

Reference Only
Manitowoc Published 09-05-14, Control # 226-02 5-19
14000 SERVICE MANUAL HOISTS
5
PLASTIC SHEAVE DATA
Sheave
Part No.
A
Outside
Diameter
B
Tread Diameter
C
Width
D
Rope Diameter
inch mm inch mm inch mm inch mm
912738
13.19 335.0 11.42 290.1 1.77 45.0 5/8 16
631056
631054 13.19 335.0 11.42 290.1 1.77 45.0 7/8 22
631065 16.00 406.4 13.37 339.6 2.17 55.1 9/16 14
631071 16.00 406.4 13.88 352.6 2.17 55.1 5/8 16
631526 19.25 489.0 16.63 422.4 1.94 50.8 7/8 22
631527 19.25 489.0 16.63 422.4 1.94 50.8 5/8 16
631055 19.69 500.1 17.60 447.0 1.85 47.0 7/8 22
631067 19.69 500.1 17.75 450.9 1.97 50.0 3/4 19
631529 20.00 508.0 17.00 431.8 3.00 76.2 1 25
631519
23.00 584.2 20.13 511.0 2.25 57.2 7/8 22
631520
631084
23.00 584.2 20.13 511.0 2.50 63.5 7/8 22
A00083
631102 23.00 584.2 20.13 511.0 2.50 63.5 1 25
631082
27.00 685.8 23.00 584.2 3.00 76.2 1 25631103
A00051
631096
27.00 685.8 23.00 584.2 3.00 76.2 1.18 28
A00050
631100 30.00 762.0 27.00 685.8 3.00 76.2 1-1/8 29

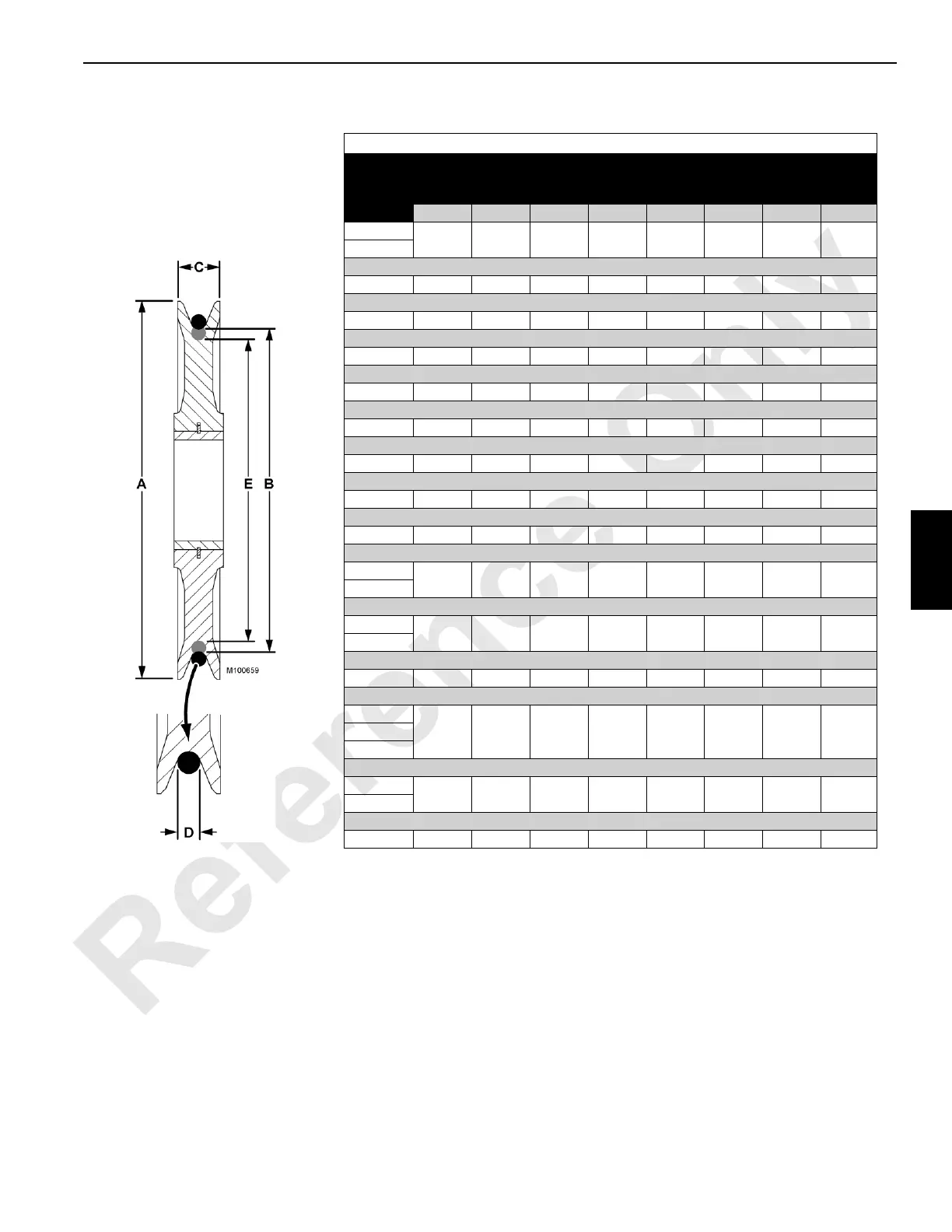

FIGURE 5-15
E = Replacement dimension
E = B – 3/16 in (5 mm) (maximum)
If tread print exists in root of sheave
groove, measure to maximum tread
diameter.
