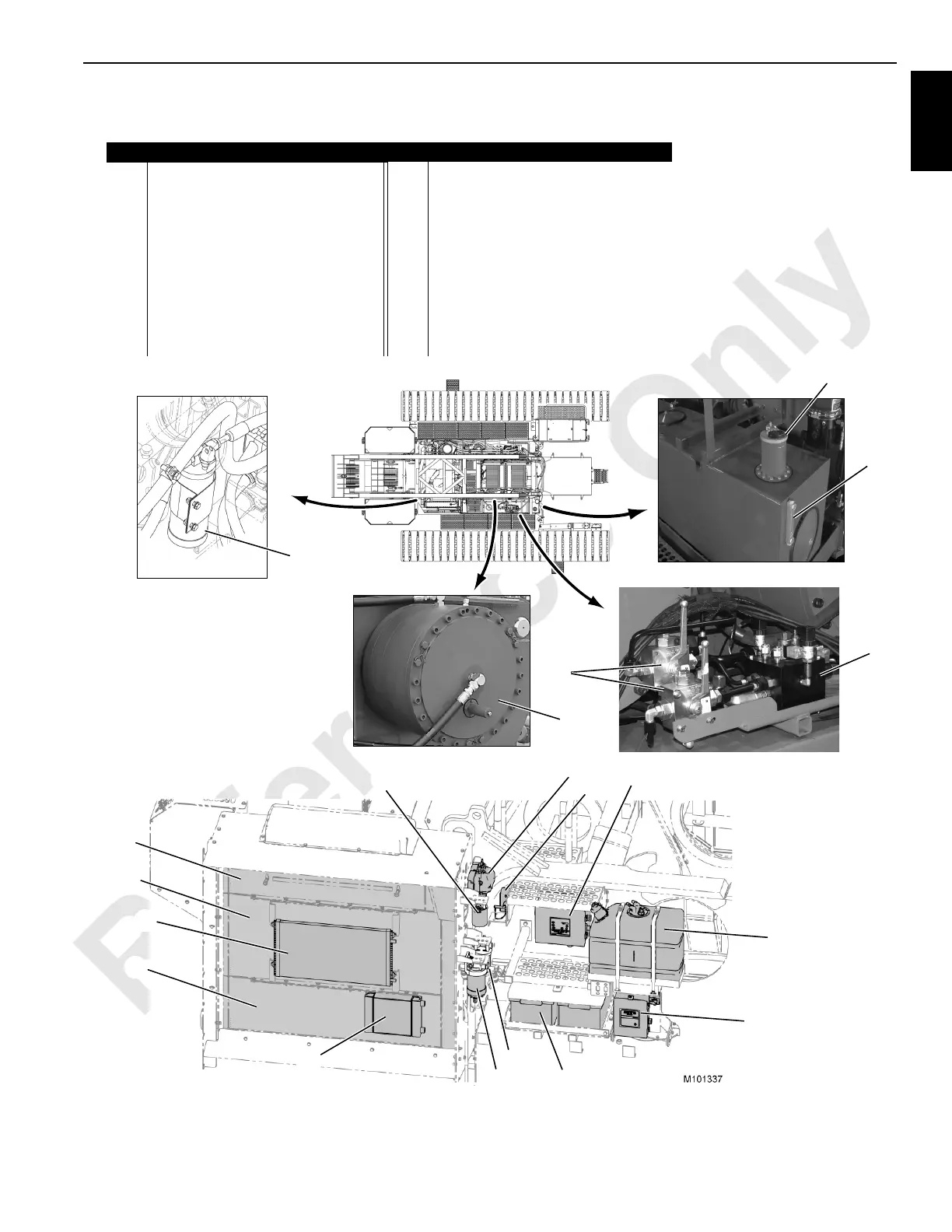

Right Side Components
Item Description Item Description
1 Fuel Fill Cap 11 DEF Tank
2 Fuel Level Sight Gauge 12 Circuit Breaker Box, Heaters (Optional)
3 Free Fall Proportional Valve (optional) 13 Batteries
4 Free Fall Enable Valves (optional) 14 Secondary Fuel Filter
5 Free Fall Drum Clutch/Brake (optional) 15 Primary Fuel Filter
6 Air Conditioning Drier 16 Fuel Cooler
7 Engine Coolant Filter 17 Hydraulic Oil Cooler
8 DEF Supply Module 18 Air Conditioning Condenser
9 Battery Disconnect Switch 19 Engine Radiator
10 Engine Controller (Node 0) 20 Engine Charge Air Cooler
