Manitowoc Published 09-05-14, Control # 226-02 2-3
14000 SERVICE MANUAL HYDRAULIC SYSTEM
Storing and Handling Parts
• Store new parts (valves, pumps, motors, hoses, tubes)
in clean, dry indoor location.
• Do not unpack parts or remove port plugs until parts are
needed.
• Once unpacked, carefully inspect each part for damage
that may have occurred during shipping. Remove all
shipping material from ports of parts before installing
them.
• Fittings, hoses, and tubes that are not equipped with
shipping caps or plugs must be carefully cleaned before
they are used. Flush fittings, hoses, and tubes with clean
hydraulic oil. Then seal all openings until use at
assembly.
• Do not use rags to plug openings. Use clean plastic
shipping plugs and caps.

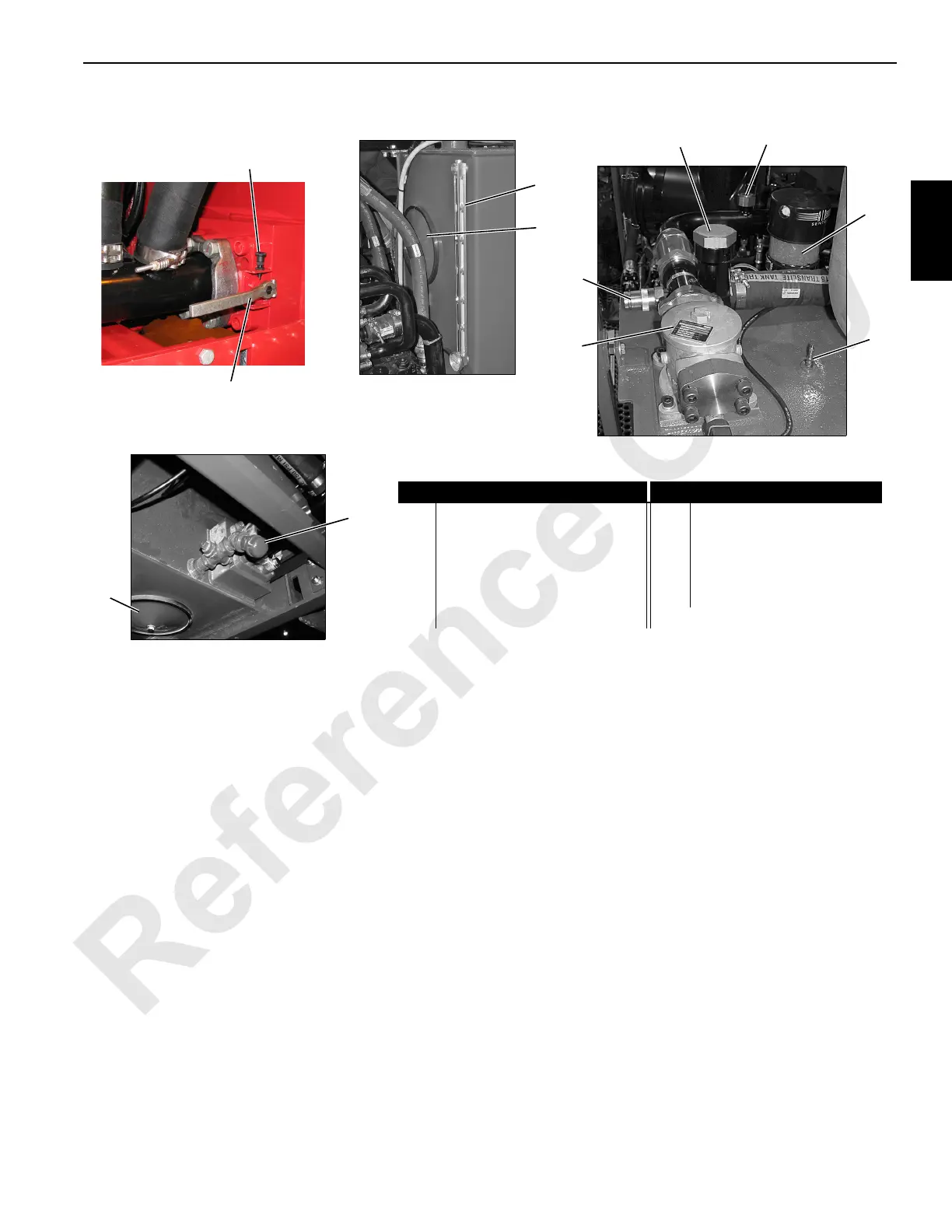

Item Description Item Description
1 Return Filter 6a Tank Suction Shut-Off Valve
2a Stand Pipe (in return line) 6b Locking Pin
2b Power Fill Coupling 7 Drain Valve
3 Desiccant Breather 8 Return Line Cap
4 Air Valve (for venting air) 9 Hydraulic Tank Level Gauge
5 Access Cover (sides and bottom)
FIGURE 2-1
P2404
3
4
8
6a
Shown OPEN
6b
Pull Up to Unlock
1
2b
P2377
5
9
2a
P2373
5
7
M100818
