SWING 14000 SERVICE MANUAL

6-4

Published 09-05-14, Control # 226-02

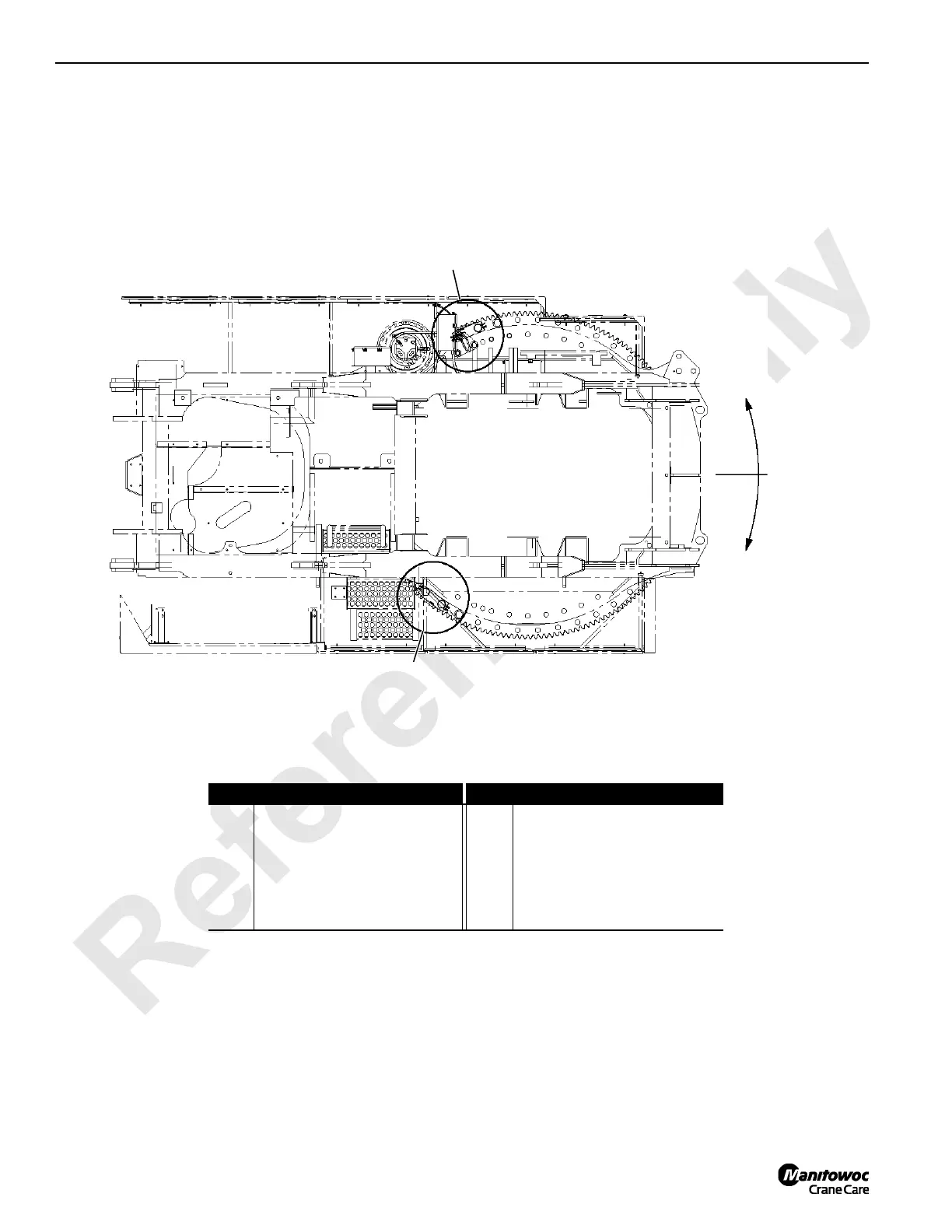

FIGURE 6-3

14CSM6100

View A

Top View of Rotating Bed

FRONT

Swing

Left

Swing

Right

See

Views C and F

See

Views D and F

Item Description Item Description

1 Swing Planetary 7 Clamp (2)

2 Limit Switch Bracket (1) 8 Set Screws (8)

3 Limit Switch (1) 9 Cap Screws (4)

4 Inner Turntable Bearing Bolts 10 Actuator (2)

5 Swing Limiter Bracket (2) 11 Limit Switch Lever (1)

6 Outer Turntable Bearing Bolts

Quantities given in parenthesis.
