999 SERVICE/MAINTENANCE MANUAL ELECTRIC SYSTEM
3
268436_1

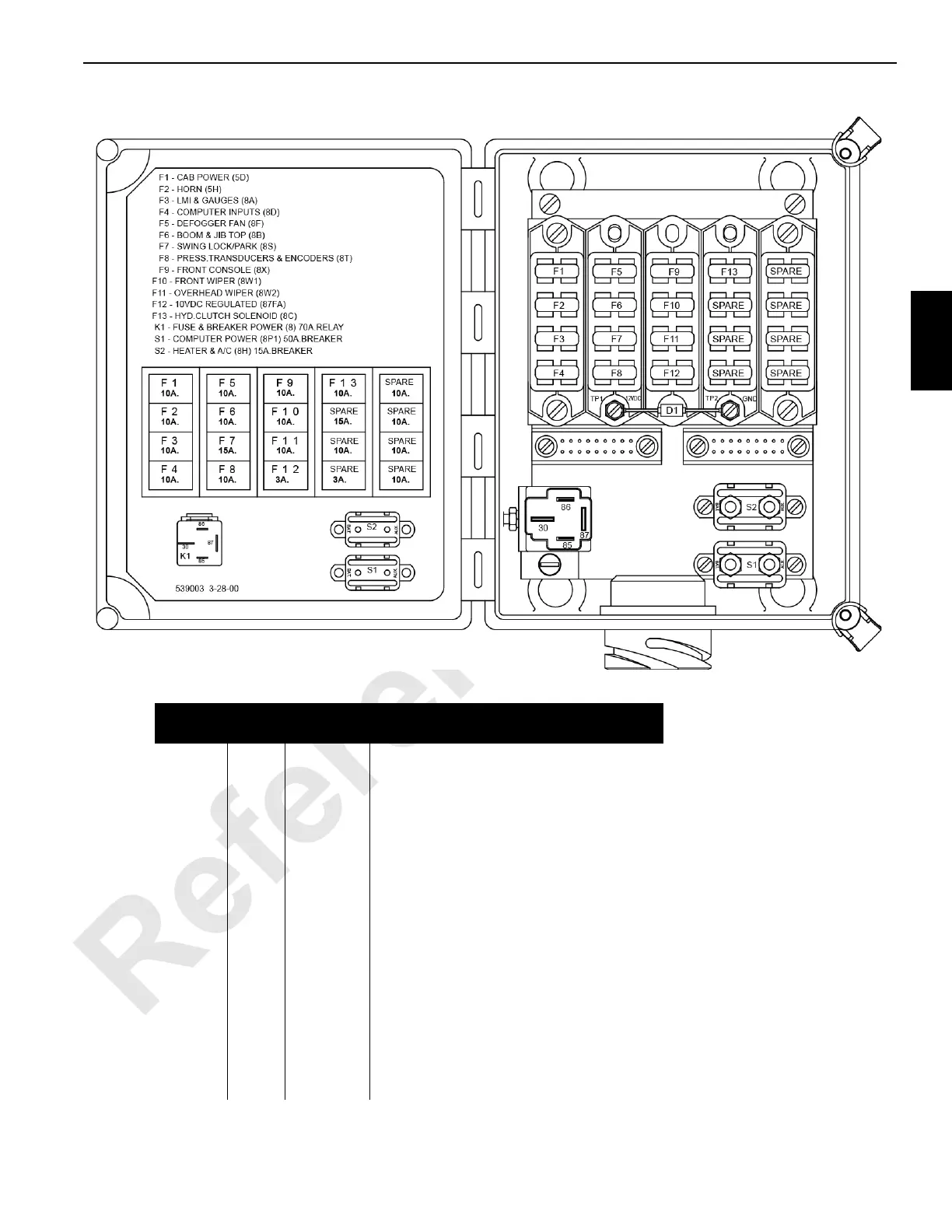

Fuse Junction Box in Operator’s Cab
Fuse or
Relay
Amps Wire No. Description of Items Protected
D1 Transient Suppressor Diode
F1 10 5D Cab Power
F2 10 5H Horn
F3 10 8A LMI & Gauges
F4 10 8D Computer Inputs
F5 10 8F Defogger Fan
F6 10 8B Boom & Jib Top
F7 15 8S Swing Lock / Park
F8 10 8T Pressure Transducers & Encoders
F9 10 8X Front Console
F10 10 8W1 Front Wiper
F11 10 8W2 Overhead Wiper
F12 3 87FA 10VDC Regulated
F13 10 8C Hydraulic Clutch Solenoid
K1 70 8 Fuse & Breaker Power (Relay)
S1 50 8P Computer Power (CB7)
S2 15 8H Heater & Air Conditioner (CB6)
FIGURE 3-2
