Manitowoc 999 Service And Maintenance Manual

Reference Only
TROUBLESHOOTING 999 SERVICE/MAINTENANCE MANUAL
10-46
Published 05-16-17, Control # 233-03

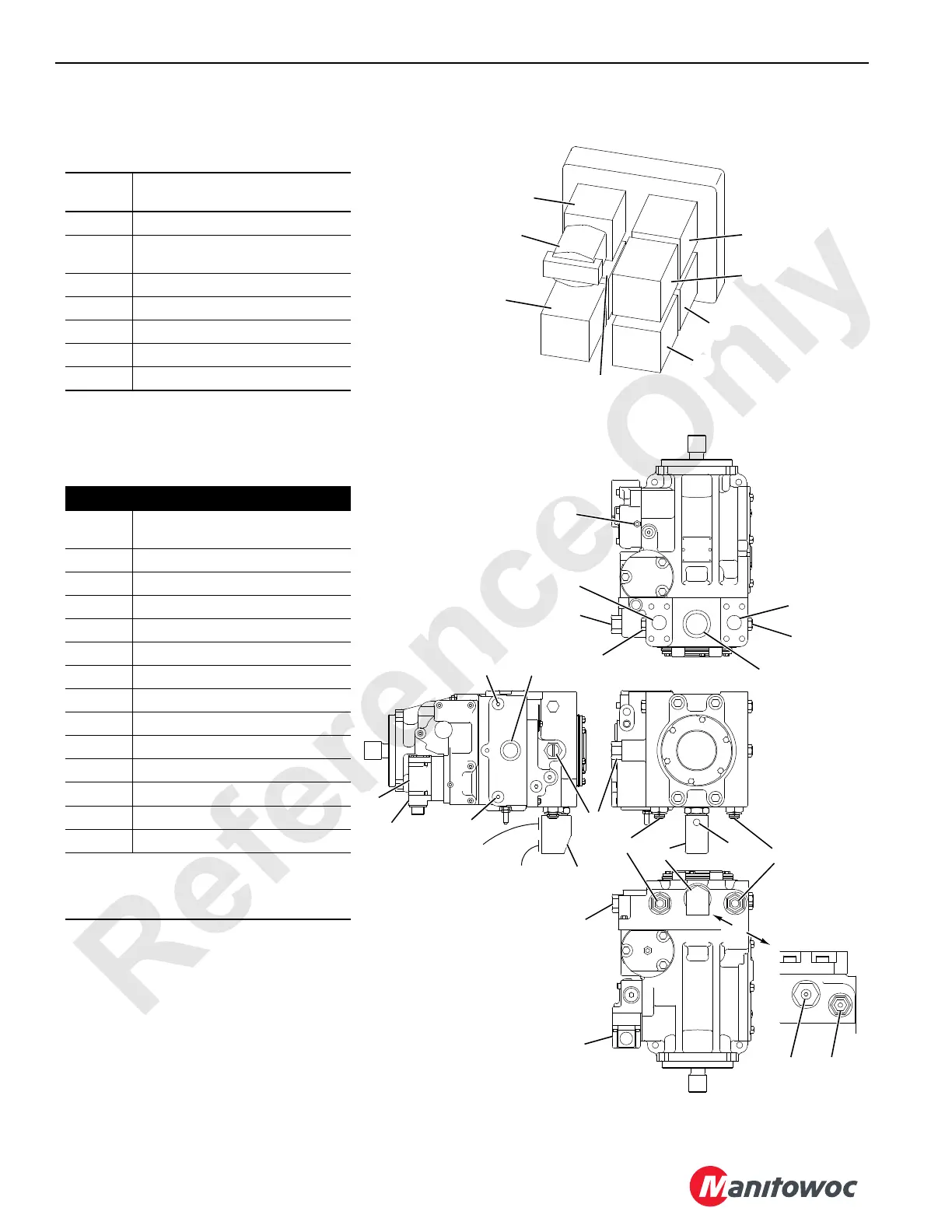

Test 14 – Location of Pump Ports
or
8
12
11
10
4
9
13
3
2
1
5
4
6
5
7
6
7 6
4
1
To F il te r
From Filter
Pump Components
2
5
1
4
0
3
10
Supercharge
Pump
A817
A1187
14
14
Pump Identification
Pump Components
Pump
Number
Identification
0 Front Load Drum
1
Rear Load Drum or
Luffing Hoist
2 Boom Hoist
3Swing
4 Right Crawler
5 Left Crawler
10 Auxiliary Load Drum
Item Description
1
EDC (Electronic Displacement
Control)
2 Manual Override Control
3 Case Drain Port (Note 1)
4 Charge Pressure Relief Valve
5 Filter Adapter (Note 2)
6 Multi-Function Valve (Note 3)
7 Charge Pressure Gauge Port
8 Charge Pump Inlet Port
9 Pump Port B
10 Pump Port B Gauge Port
11 Pump Port A
12 Pump Port A Gauge Port
13 Neutral Adjusting Screw
14 Servo Pressure Gauge Port
NOTE 1: Both Sides of Pump.
NOTE 2: Auxiliary Drum Pump Only.
NOTE 3: Valve is Directly Opposite Port it
Protects.
