HOISTS 999 SERVICE/MAINTENANCE MANUAL
5-4
Published 05-16-17, Control # 233-03

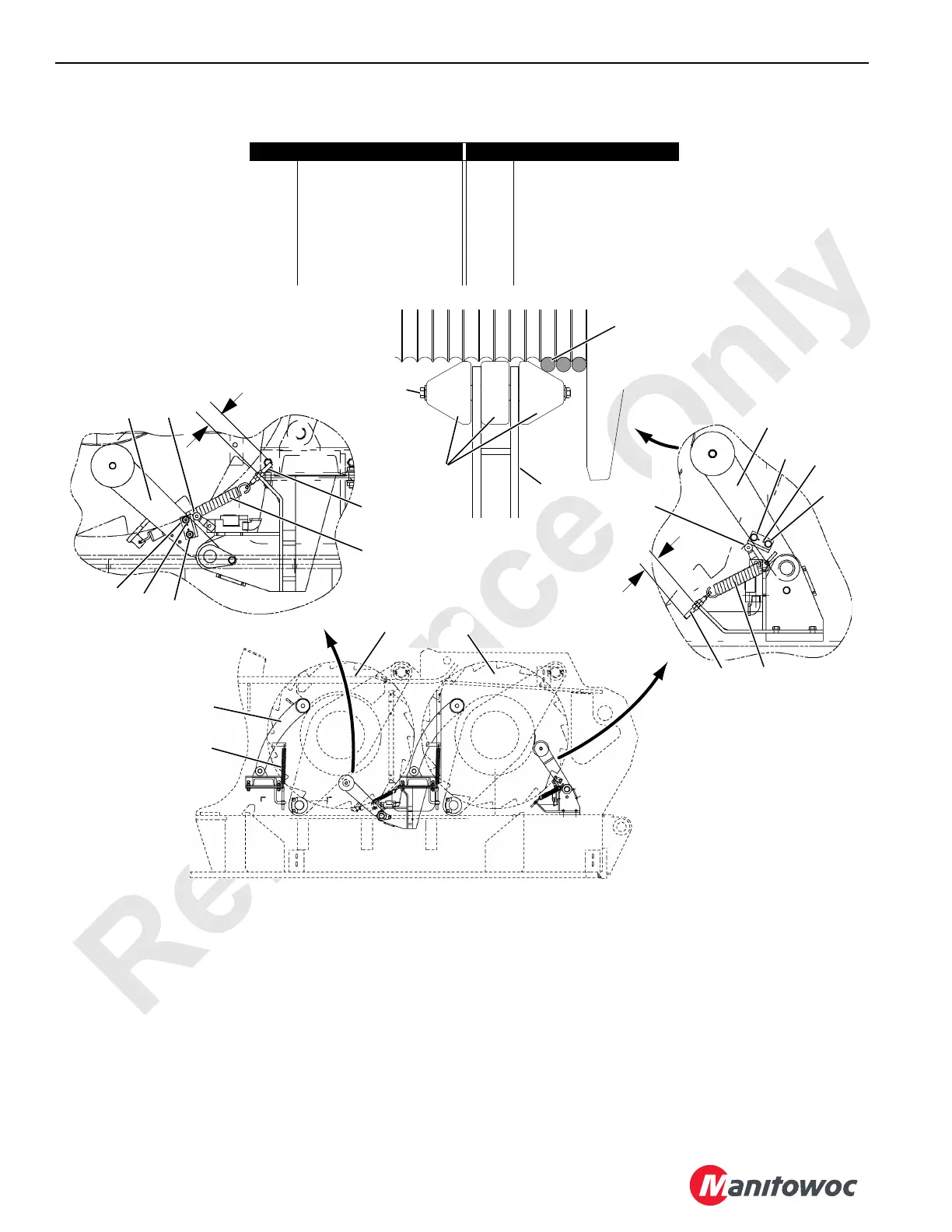

3 to 4 Wraps of
Wire Rope Remaining
on Either Load Drum
FIGURE 5-2
A1081
3
11
10
3
9
12
Item Description Item Description
1 Front Load Drum 8 Return Spring
2 Rear Load Drum 9 Return Spring Eyebolt
3 Limit Switch Roller 10 Cap Screw
4 Actuator 11 Bail Limit Rollers
5 Actuator Adjusting Screws 12 Bail Limit Lever
6 Pins 13 Drum Pressure Roller
7 Lever 14 Pressure Roller Spring
1.6 in
(40mm)
8
4
5
6
7
2
1
1.6 in
(40mm)
4
5
6
7
9
8
13
14
A17578e
A17578d
A17578
