6 Installation
Operating and Installation Instructions UL 50
6.

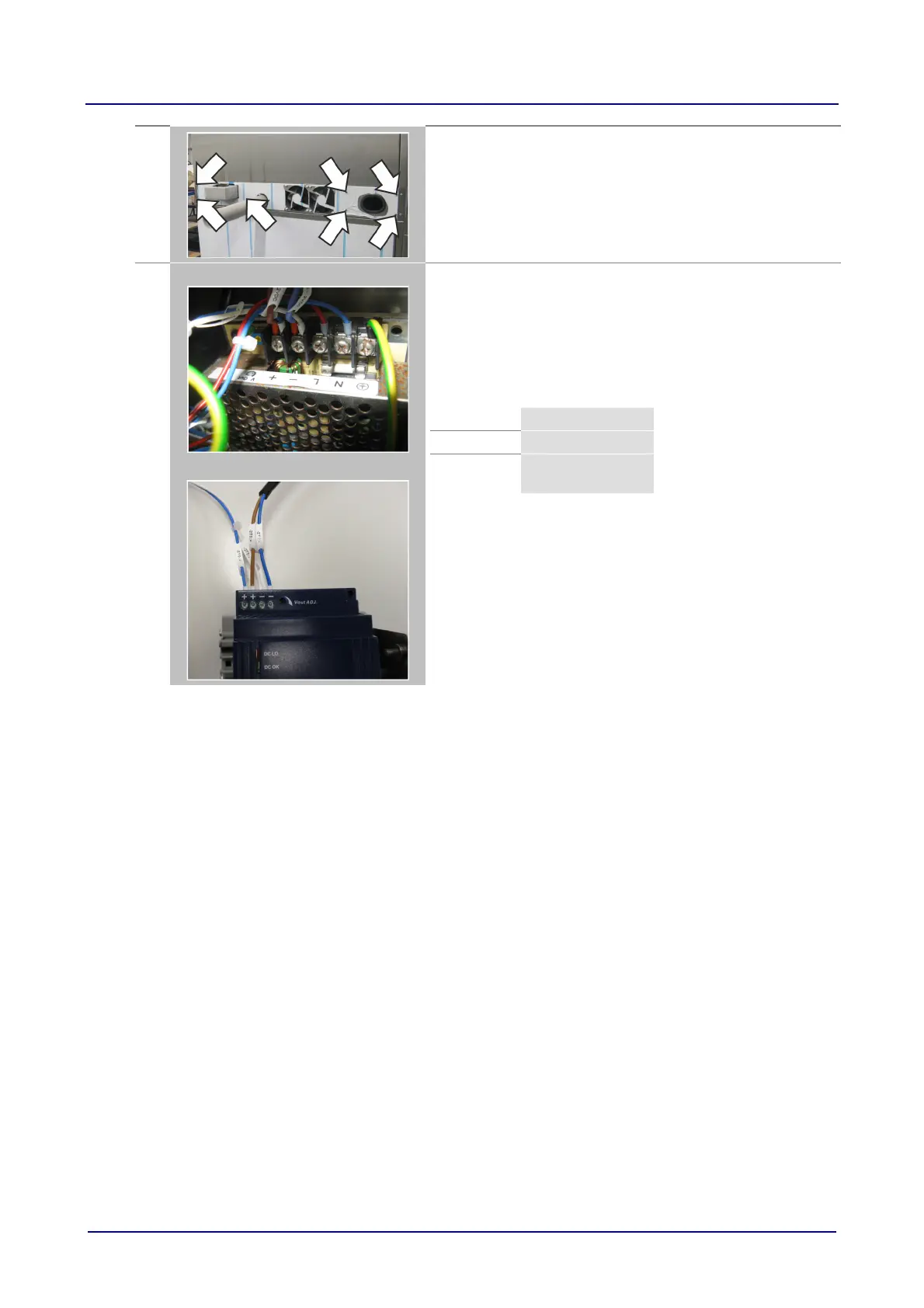

Insert the rear cover and attach it using the seven pan head
screws.
Make sure that the drain connection is installed correctly.
The wastewater pipe needs to go out towards the back through
the intended opening on the rear cover.
7.
CE:
UL (North America):
Connect the stacking kit’s fan cable to the supply module’s 12 V
terminals (+ and -).
Caution: 12V!
Make sure to connect each wire to the correct terminal (i.e., with
the correct polarity) and to route the cable properly inside the
wiring compartment.
Unit Stacking kit
Blue: + Brown: +2T0
White
:
- Blue: -2T0
To Next Page
Loading...
