6 Installation
Operating and Installation Instructions UL 49
8.

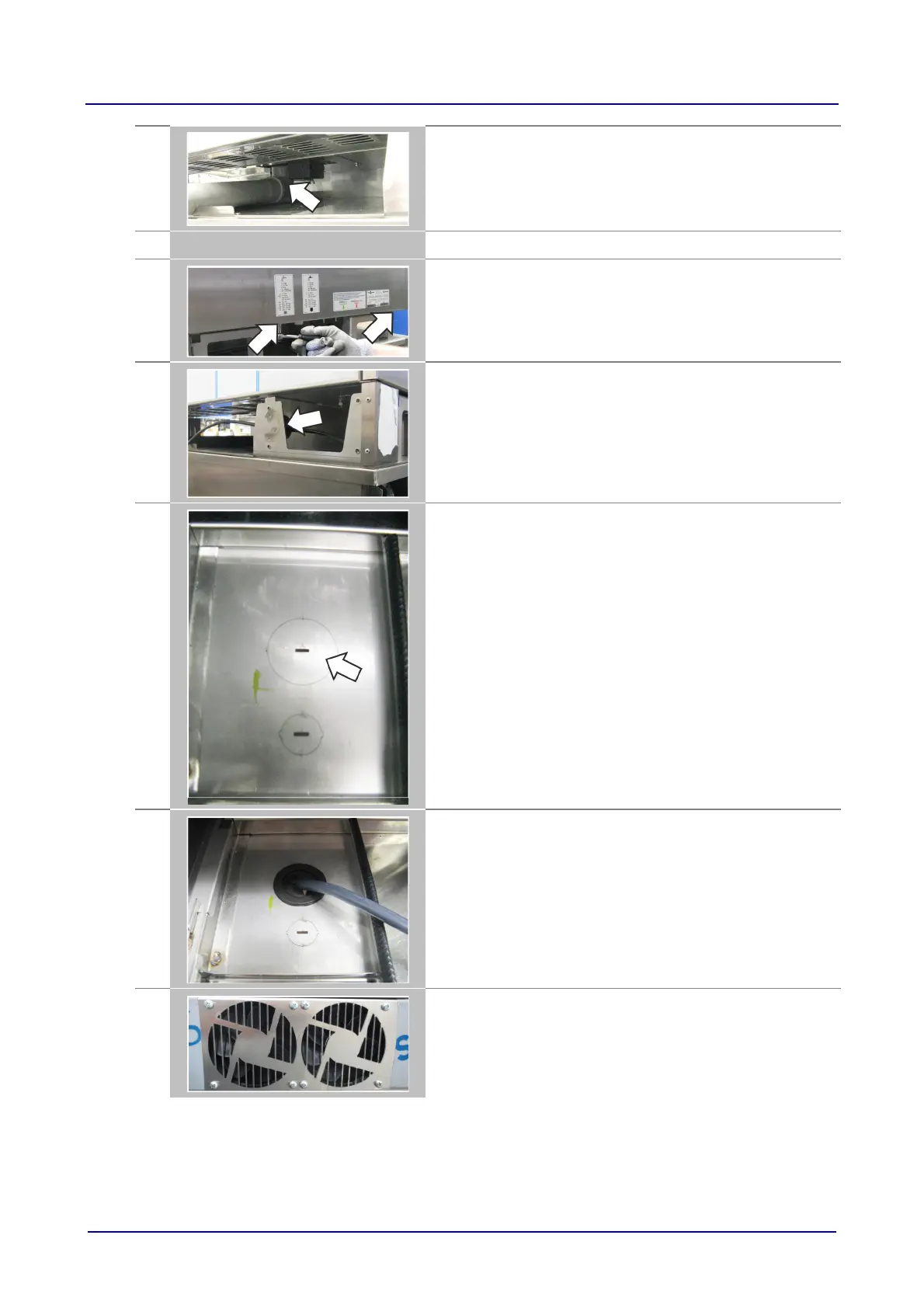

Connect the top unit’s drain pipe to the trap elbow fitting.
Establishing an electrical connection:
1.
Remove the top unit’s left side panel.
2.
Pull the cooling fan’s connection cable (12V) through the
grommet.
Make sure not to damage the connection cable.
3.
The top unit’s wiring compartment features a perforated opening
at the bottom, on the left side. Knock it out.
4.
Push the grommet into the opening and guide the cable through
it.
Caution! 12V!
5.
Use the eight screws to screw the two fans onto the rear cover.
