MLC90A-1/MLC100-1 OPERATOR MANUAL SETUP AND INSTALLATION
3
1
4

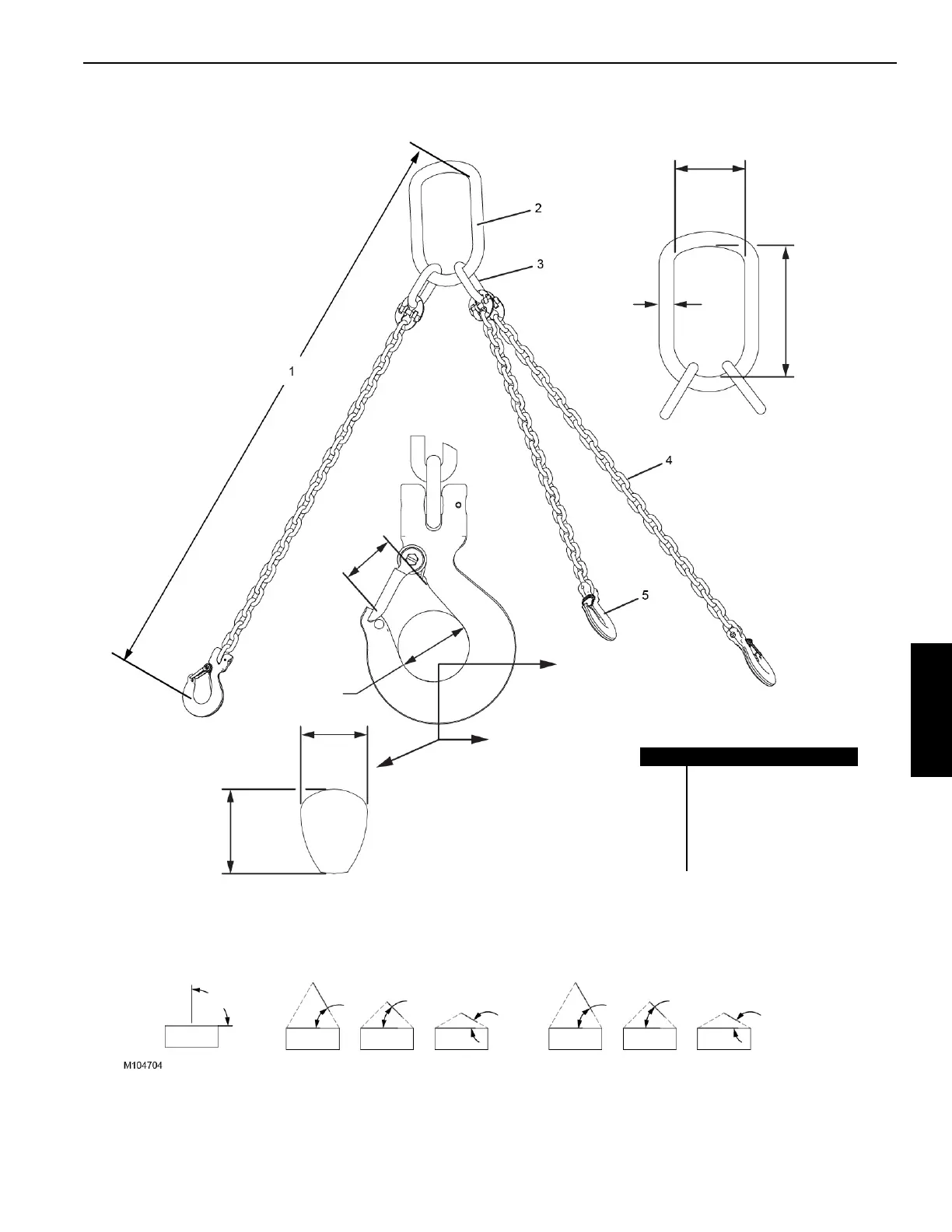

LIFTING SLING
Item Description
1 Lifting Sling: 3-leg chain —
10 mm (3/8 in) Grade 100
2 Master Link
3 Connecting Link (3)
4 Chain Leg (3)
5 Hook (3)
Single
3 990 kg
(8,800 lb)
Double
6 890 kg
(15,200 lb)
Double
5 620
(12,400 lb) kg
Double
3 990 kg
(8,800 lb)
Triple and Quadruple
10 390 kg
(22,900 lb)
Triple and Quadruple
8 480 kg
(18,700 lb)
Triple and Quadruple
5 990 kg
(13,200 lb)
90°
60°
45°
30°
30°
45°
60°
1 370 mm
(4 ft 6 in)
135 mm
(5-5/16 in)
250 mm
(9-27/32 in)
39,1 mm
(1-5/8 in)
50,8 mm
(2 in)
23,9 mm
(15/16 in)
30,1 mm
(1-3/16 in)
Figure 4-2
28 mm
(1-3/32 in)
