MLC90A-1/MLC100-1 OPERATOR MANUAL OPERATING CONTROLS AND PROCEDURES
3
1
3
Foot Pedals

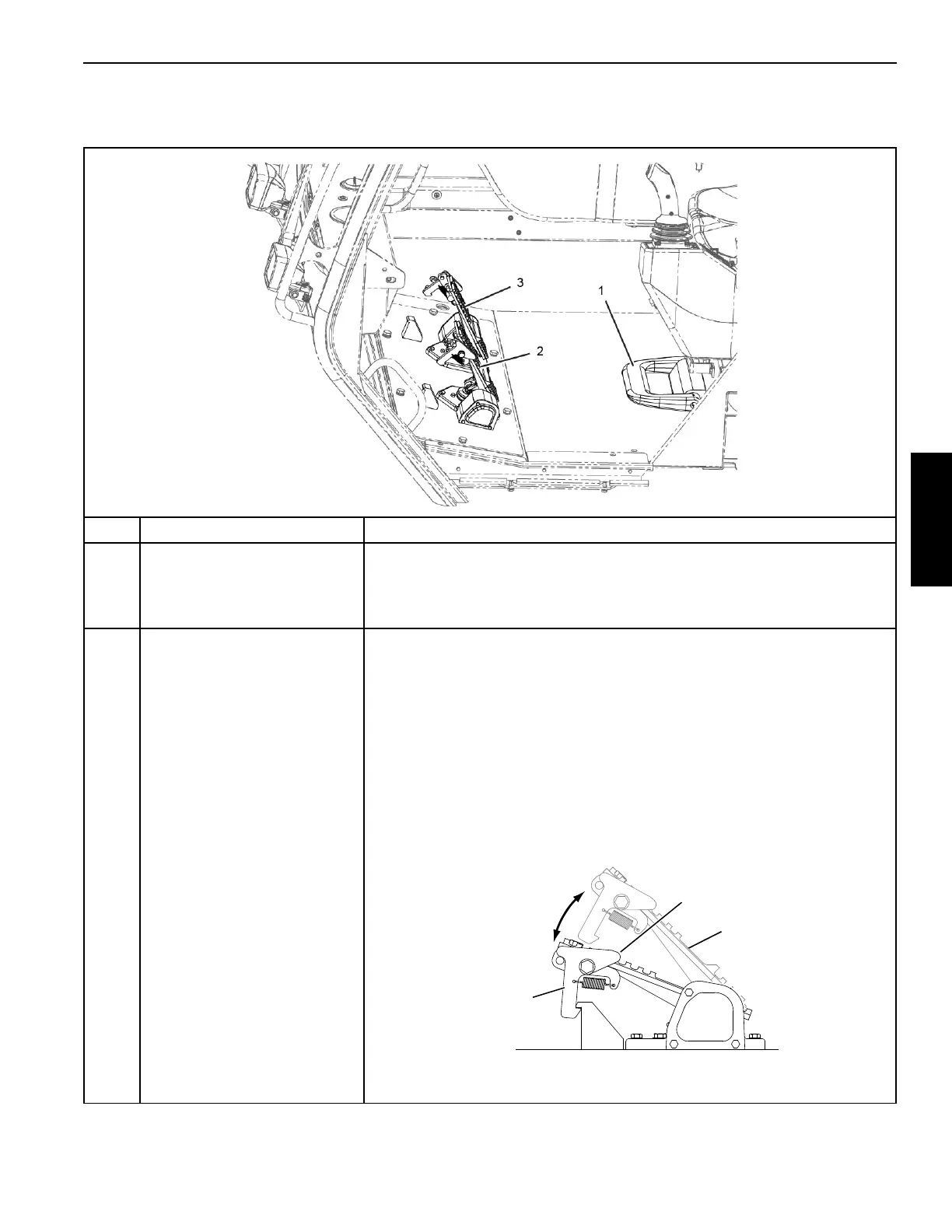

Table 3-7. Foot Pedals
Item Name Description
1 Engine Foot Throttle
• Press DOWN on the foot throttle to INCREASE engine speed above the hand
throttle setting.
• RELEASE the foot throttle to DECREASE engine speed to idle or to the hand
throttle setting.
2
3
Drum 1 Free Fall Brake Pedal
Drum 2 Free Fall Brake Pedal
Each free fall equipped drum has a spring-applied, hydraulically-released free
fall brake controlled by a brake pedal. When free falling a load, the free fall
brake can be applied at any time to slow down and stop the load.
The brake pedals have no function and are inoperable when operating with free
off.
• Depress to apply the free fall brake in relation to pedal movement. Fully
depress and latch the pedal to fully apply the brake.
• Depress the heel of the latch to unlatch the pedal and then release the pedal
(ease up) to release the free fall brake gradually as the pedal rises.
Pedal
Brake
Applied
Brake
Released
A1182
Latch
Press Here
to Unlatch
