SETUP AND INSTALLATION MLC90A-1/MLC100-1 OPERATOR MANUAL

4-56

Published 12-10-19, Control # 258-05

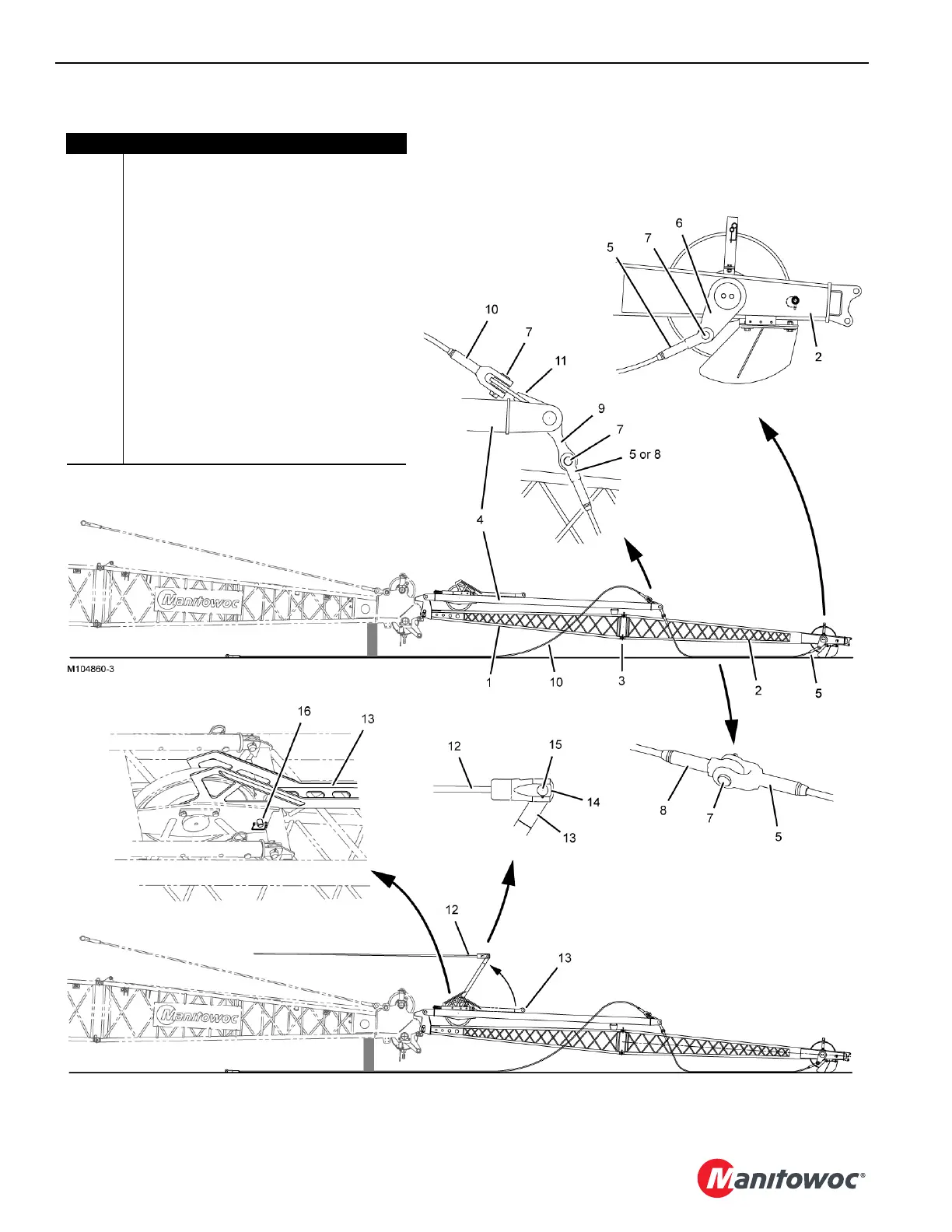

Figure 4-38

Item Description

1Jib Bottom

2 Boom Top

3 Jib Insert (if equipped)

4Jib Strut

5 Jib Top Pendant (Qty 2)

6Link (Qty 2)

7 Pin with Cotter Pin (Qty 1 or 2 each pendant)

8 Jib Insert Pendant (Qty 2 or 4 if installed)

9Link (Qty 2)

10 Backstay Pendant (Qty 2)

11 Link (Qty 2)

12 Whip Line (Drum 1)

13 Strut Raising Arm

14 Button Socket

15 Pin with Cotter Pin

16 Rope Guide Pin with Safety Pin

View A

View C

View D

View E

View F

View G

View B
