SETUP AND INSTALLATION MLC90A-1/MLC100-1 OPERATOR MANUAL
4-74
Published 12-10-19, Control # 258-05

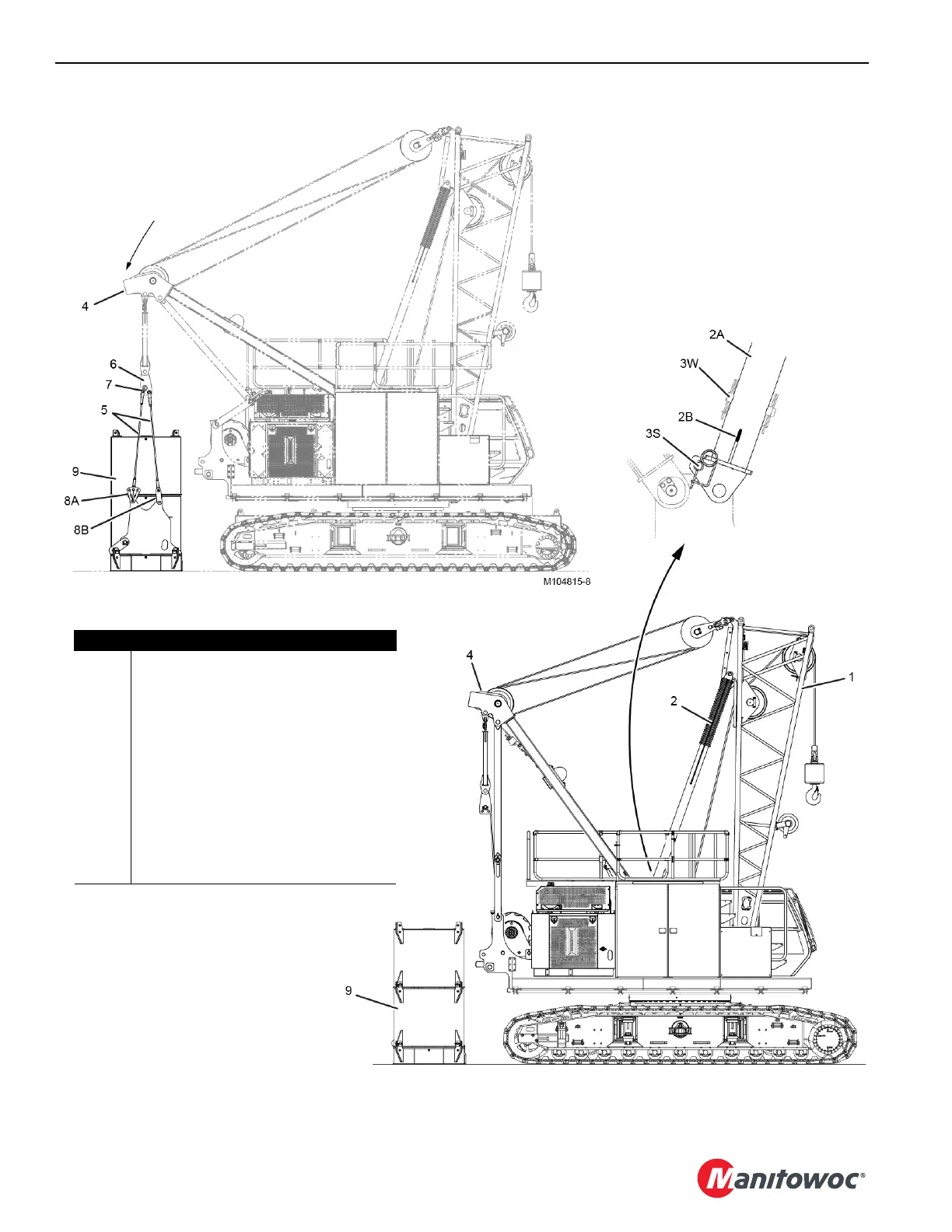

Figure 4-47
Item Description
1Boom Butt
2 Boom Stop (Qty 2)
3 Hold-Back Pin with Hair-Pin Cotter (qty 2)
4Gantry
5 Handling Pendant (Qty 4)
6 Handling Link (Qty 2)
7 Pendant Pin with Cotter Pin (Qty 4)
8A Adjustable Handling Link (Qty 2)
8B Front Handling Link (Qty 2)
9 Crane Counterweight
S Storage Hole
W Working Holes
View A
View B
View C
