SETUP AND INSTALLATION MLC90A-1/MLC100-1 OPERATOR MANUAL
4-76
Published 12-10-19, Control # 258-05

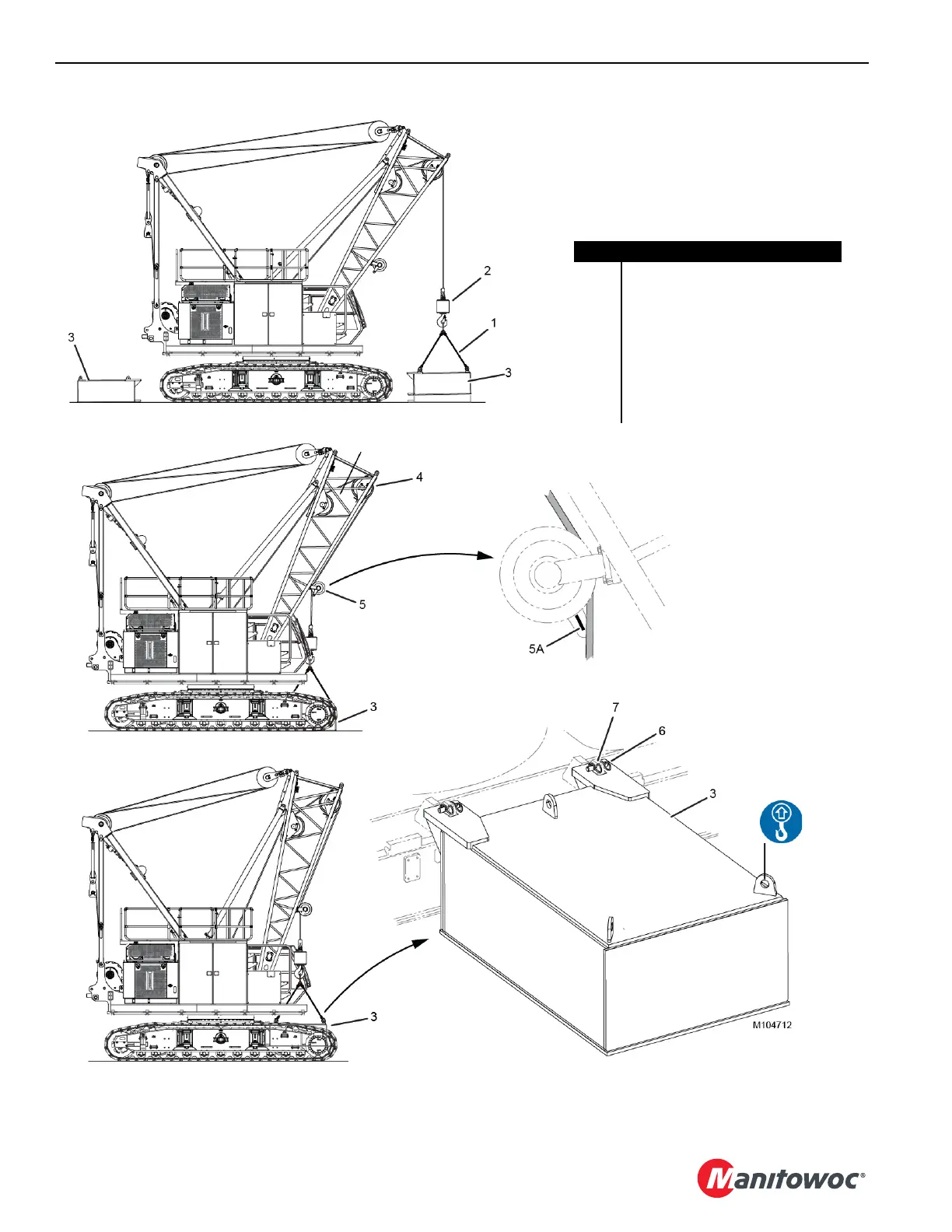

Figure 4-48
Item Description
1 Chain Lifting Sling
2 Hook-and-Weight Ball
3 Carbody Counterweight (2)
4 Boom Butt at Min Angle of 64°
5 Counterweight Handling Sheave
5A Sheave Indicator
6 Pin with Hair-Pin Cotters (4)
7 Hooked Lug (4)
View A
View B
View C
View D
(3)
View E
From Cab Side
of Boom Butt
64°
