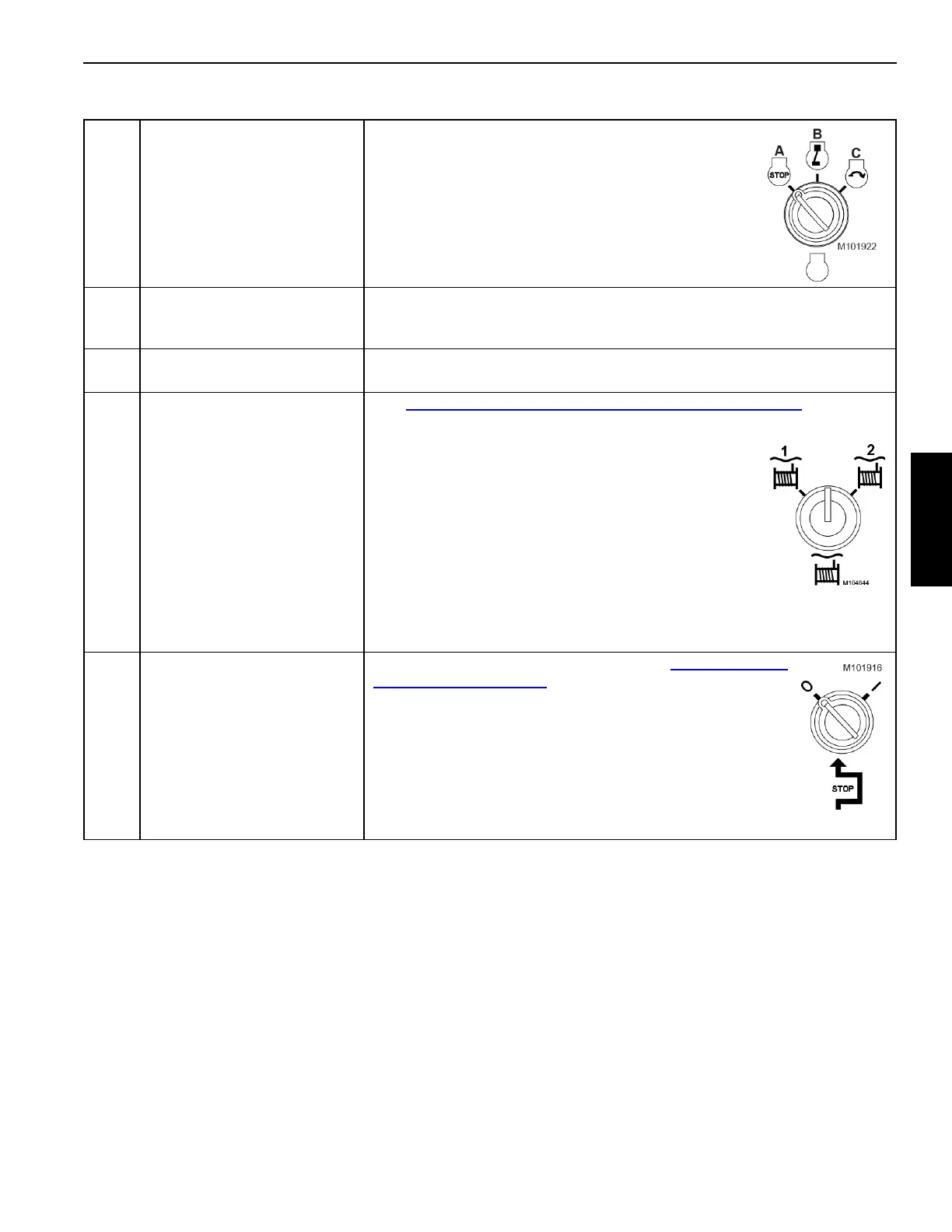

MLC90A-1/MLC100-1 OPERATOR MANUAL OPERATING CONTROLS AND PROCEDURES
3
1
3
2 Engine Ignition Switch
The engine ignition switch has the following positions:
• Stop (A)
• Run (B)
•Start (C)
3
Rated Capacity Limiter (RCL)
and Rated Capacity Indicator
(RCI) Display
Displays load lifting information and alerts the operator to overload conditions.
See the RCL/RCI Operation Manual for detailed information.
4 Main Display
Displays operating conditions, faults, and diagnostic information. See the Main
Display Operation Manual for detailed information.
5 Free Fall Enable Switch
See Load Drum Operation—Liftcrane Free Fall on page 3-41
for detailed
instructions on turning free fall on and off.
This key switch spring returns to center when released.
• Turn COUNTERCLOCKWISE and release to ENABLE
Drum 1 free fall.
• Turn COUNTERCLOCKWISE again and release to
DISABLE Drum 1 free fall.
• Turn CLOCKWISE and release to ENABLE Drum 2 free
fall.
• Turn CLOCKWISE again and release to DISABLE
Drum 2 free fall.
Remove the key to prevent unauthorized operation.
6 Limit Bypass Key Switch
This key bypasses the limits described in Operating Limits
Identification on page 3-31:
• Turn the key to I and hold to BYPASS an operating limit.
• RELEASE the key to O to ENABLE operating limits. This
position allows the limits to stop the crane functions in the
normal matter. The key must be in this position for all
normal operation. Otherwise, structural damage can
occur.
Remove the key to prevent unauthorized operation.
