MLC90A-1/MLC100-1 OPERATOR MANUAL OPERATING CONTROLS AND PROCEDURES
3
1
3
6 Cab Work Lights Switch
• Press the TOP of the rocker to TURN ON the cab work lights.
• Press the BOTTOM of the rocker to TURN OFF the cab work
lights.
For optional gantry and boom work lights see Work Lights on
page 3-54.
7 Console Switch Back Lights
• Press the TOP of rocker to TURN ON the console switch back
lights.
• Press the BOTTOM of rocker to TURN OFF the console switch
back lights.
8 Boom Position Light
• Press the TOP of the rocker to TURN ON the boom position
light.
• Press the BOTTOM of the rocker to TURN OFF the boom
position light.
9 Camera Lights
• Press the TOP of the rocker to TURN ON the camera lights.
• Press the BOTTOM of the rocker to TURN OFF the camera
lights.

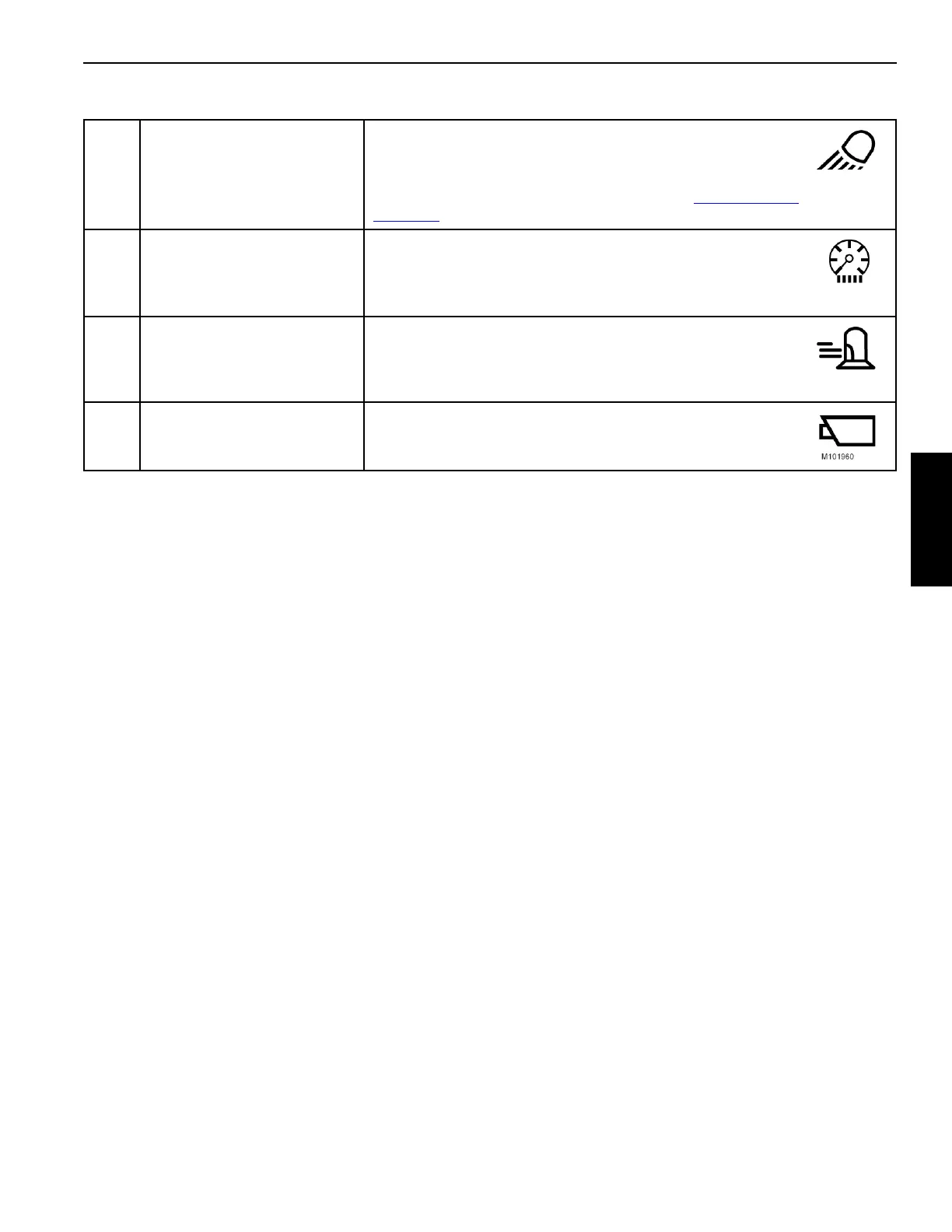

Table 3-6. Overhead Console
M100166
M100165
M100291
