Manitowoc NEO - Electronic Control Board Layout

136 pages

To Next Page

To Next Page

To Previous Page

To Previous Page

Loading...

Part Number STH042 3/14 131

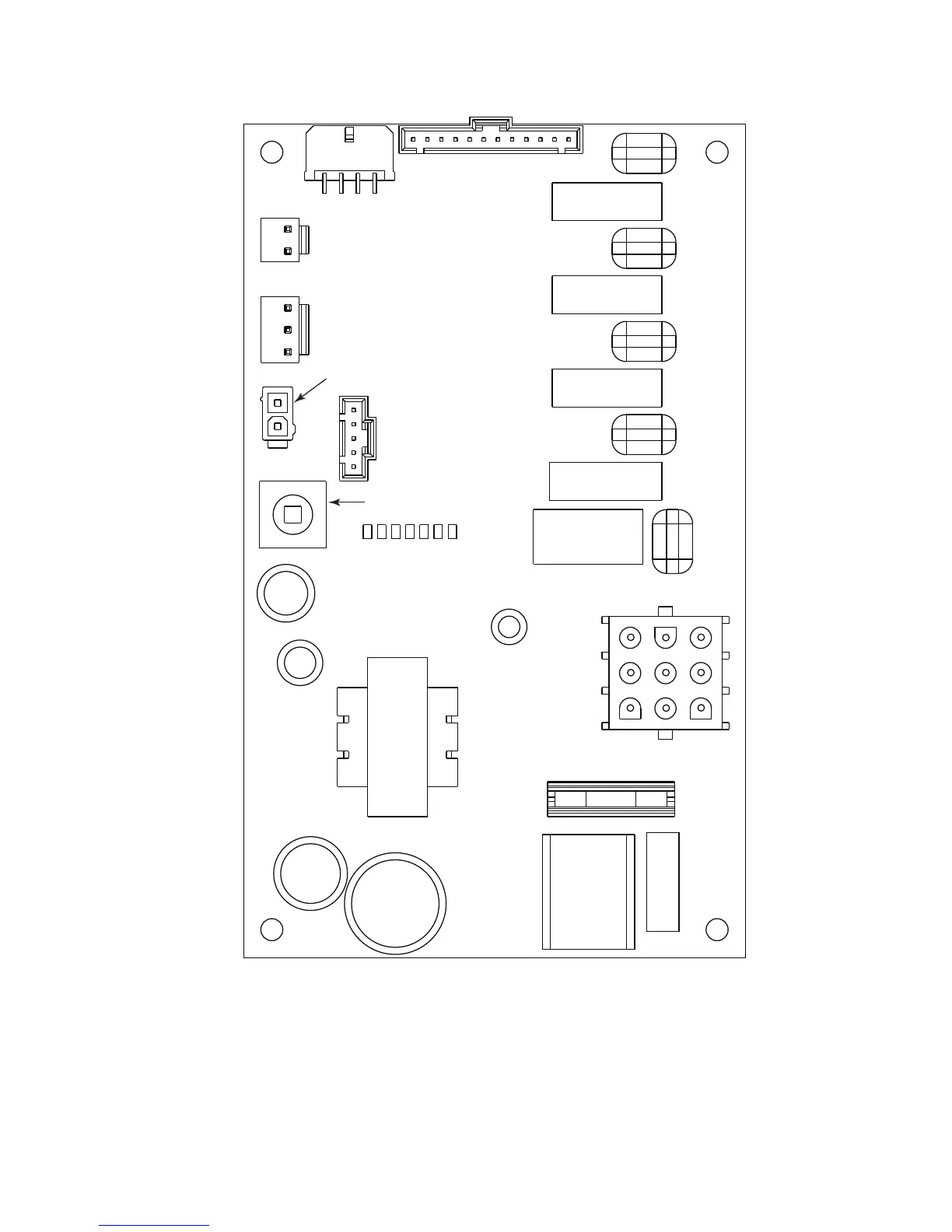

ELECTRONIC CONTROL BOARD

WATER PUMP

MAIN COMP

WATER DUMP

HARVEST

WATER FILL

FUSE

HIGH FLOAT

LOW FLOAT

BIN SWITCH

TEST SWITCH

WATER LEVEL FLOAT

HARVEST

SAFETY 1

SAFETY 2

CURTAIN

TEST MODE

ICE LEVEL FLOAT
