Page 38 (Water Trough Removal Steps)
Manitowoc NEO - Water Trough Removal Steps; Removing the Water Trough
136 pages
Manual
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
38
Part Number STH042 3/14
B.
Remove the W
ater T
rough
•

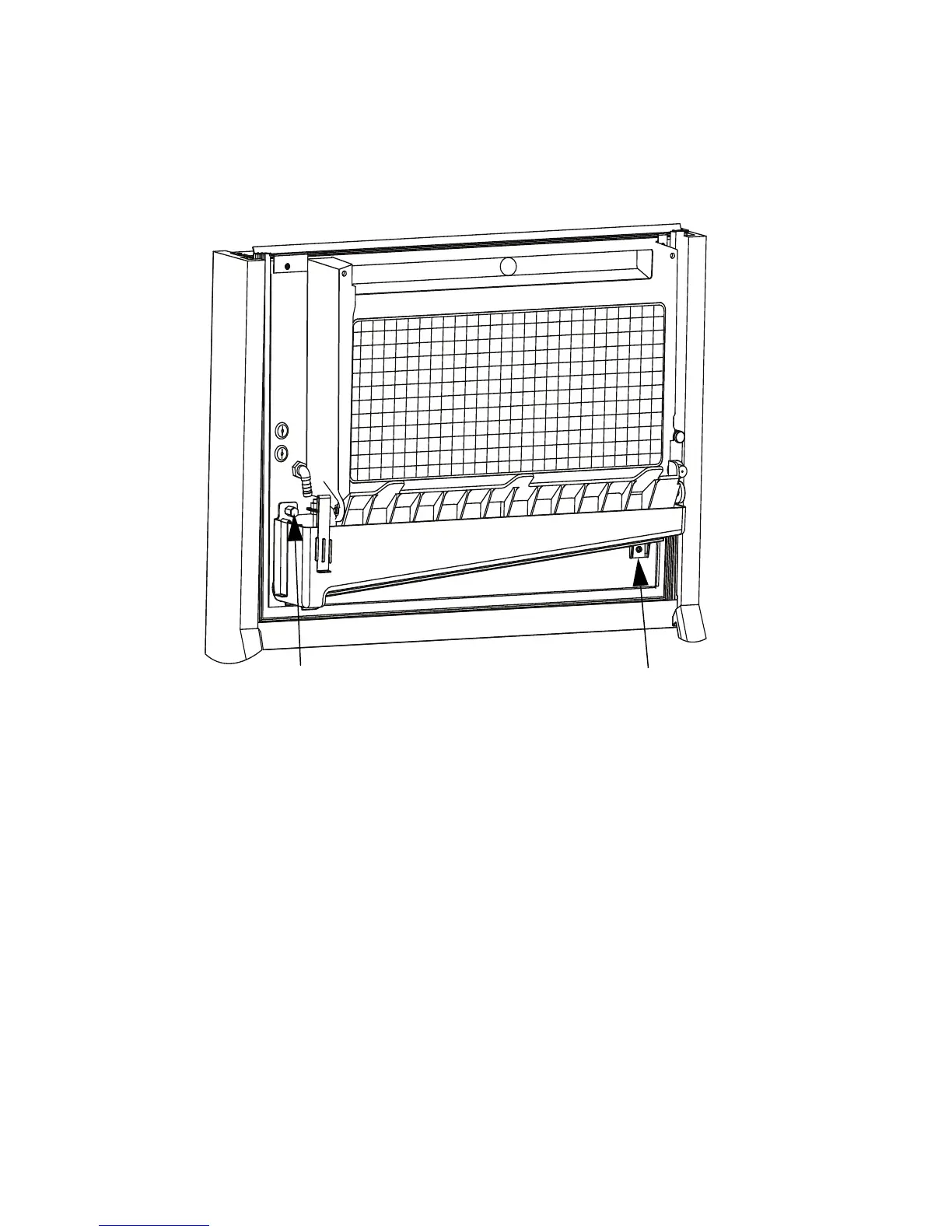

Remove the upper thumbscrew
.
•
While supporting the water tro
ugh remove the
thumbscrew from beneath the water trough.
•
Remove the water trough from the bin area.
UPPER THUMBSCREW
LOWER THUMBSCREW
