Part Number STH042 3/14 99
Ohm Test
Disconnect wire from control board and Ohm touch
pad and interconnecting wire to verify correct
operation. Pressing and depressing the touch pad
must open and close the circuit. A switch that
functions correctly will close as the button is pressed
and open as the button is released.
Do not insert electrical probe into end of connector.
This will stretch the connector and cause intermittent
connection issues. All readings must be taken on the
flat exterior of the connector

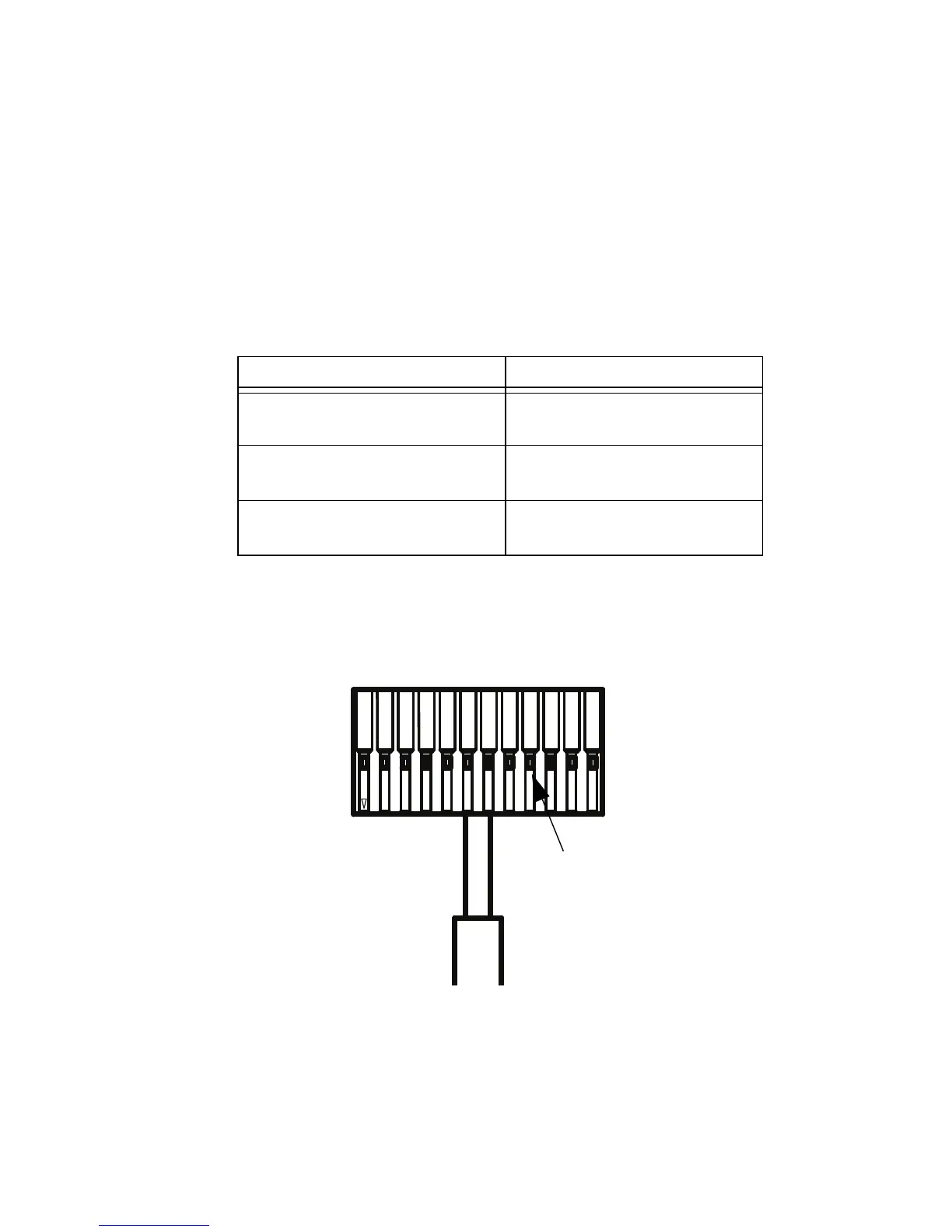

Selection Wires
On/Off #2 & #7
Delay #3 & #7
Clean #4 & #7
1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12
Control Board Connector
TOUCH ELECTRICAL
PROBE TO THESE
LOCATIONS ONLY
DO NOT INSERT IN END
OF CONNECTOR
