Part Number 8001119 10/19 51
Q130 Models
SV1731C
THUMBSCREW
REMOVE ICE
THICKNESS PROBE
THUMBSCREW
DISTRIBUTION
TUBE

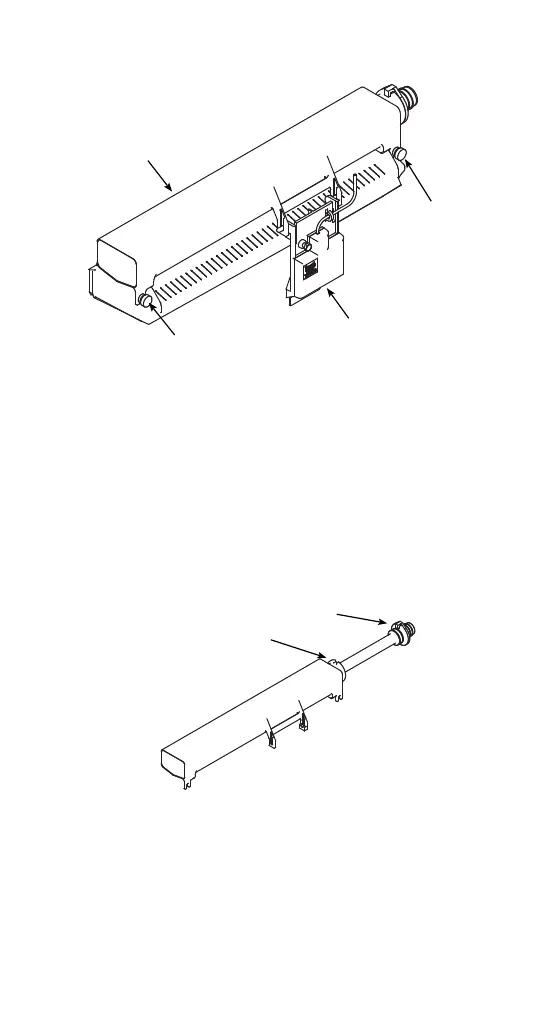

Q130 Water Distribution Tube Removal
• Loosen the two thumbscrews, which secure
the distribution tube.
• Lift the distribution tube up off the
thumbscrews.
Disassembly
• Twist the barbed end until the tab lines up with
the keyway
.
• Pull the inner tube end outward.
Q130 Water Distribution Tube Disassembly
SV1741
KEYWAY
TAB
