F. Remove the Float Valve
• Turn the splash shield counterclockwise one or
two turns.

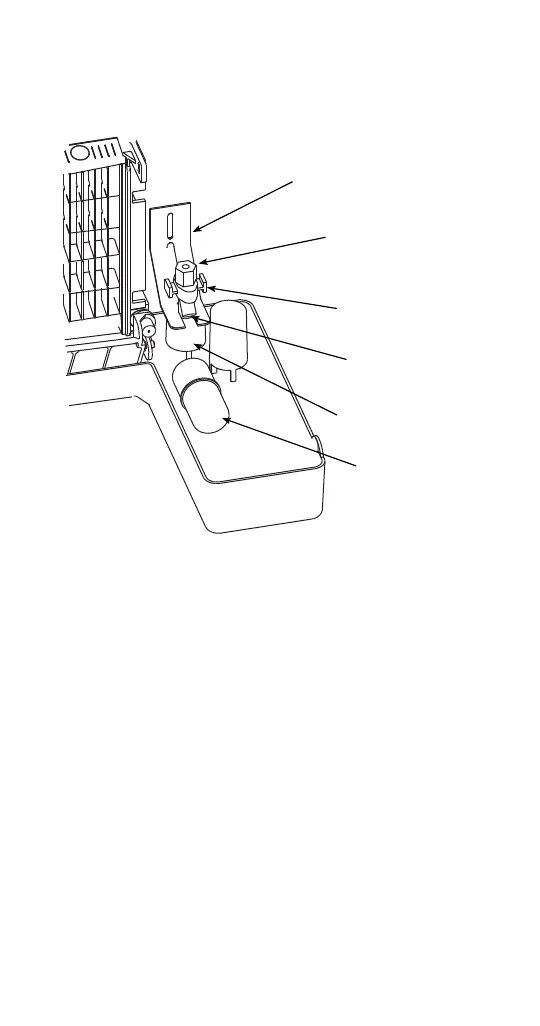

FLOAT VALVE REMOVAL
• Pull the float valve forward and off the mounting
bracket.
• Disconnect the water inlet tube from the float valve
at the compression fitting.
• Remove the cap and filter screen for cleaning.
SV1695-2
FLOAT VALVE
BRACKET
COMPRESSION
FITTING
CAP AND FILTER
SCREEN
SPLASH
SHIELD
SHUT-OFF
VALVE
FLOAT
