6 Operator’s Manual
Assembly

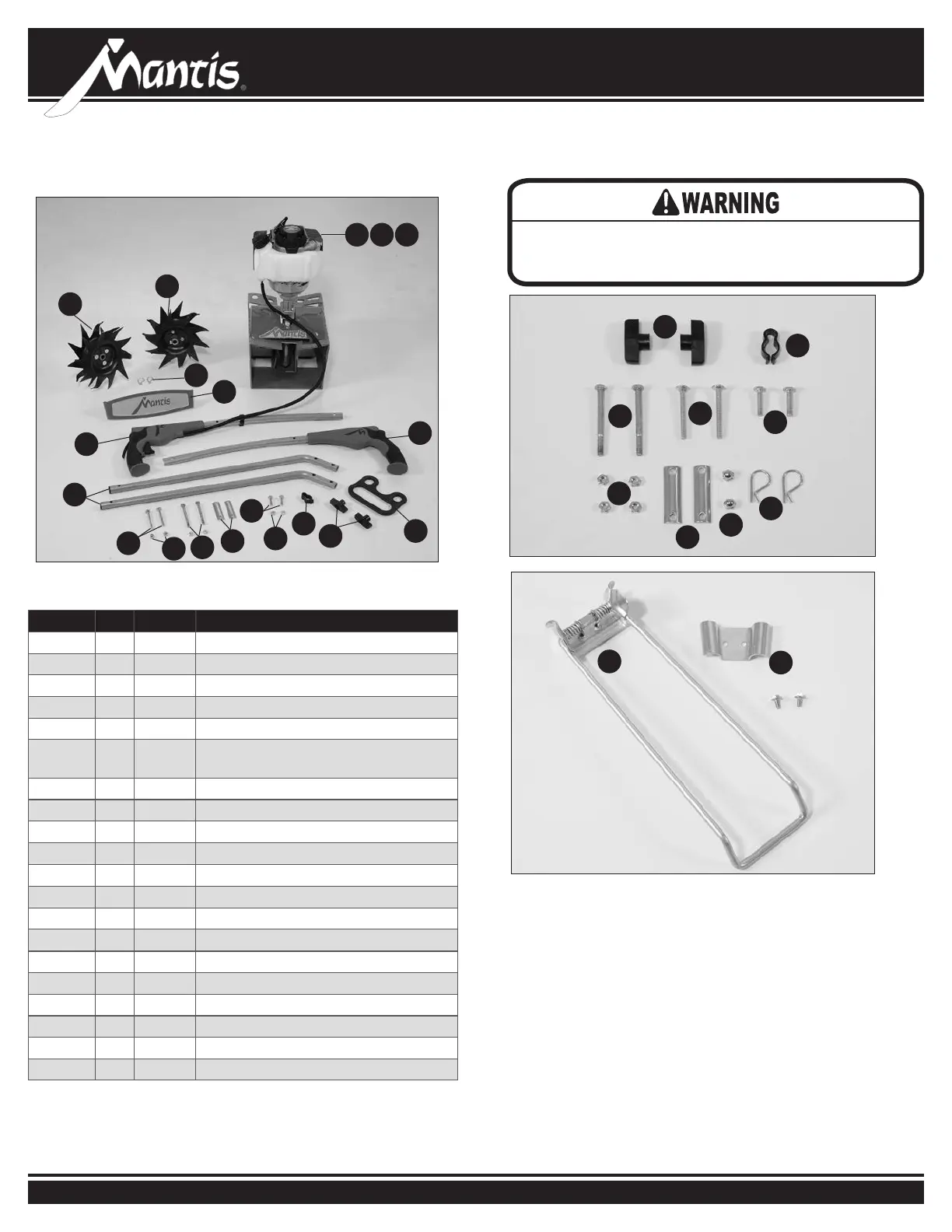

WHAT COMES IN THE BOX
WHAT YOU WILL NEED
TO ASSEMBLE THE TILLER
Prior to removing the contents and assembling, it is important to:
• Have a clean work area
• Make sure all necessary
tools are handy
• Have two 7/16” wrenches
• Have a 3/8” wrench for
kickstand assembly
Improper assembly of this tiller can result in serious injury. Make
sure to follow all instructions carefully. If you have any questions,
contact our factory at 1-800-366-6268 or an authorized Mantis dealer.
Key Qty. Part No. Description
T1 1 Upper Handle Throttle Side Assembly
T2 1 Upper Handle Assembly, Left
T3 2 Lower Handles W/Plug
T4 1 Handle Brace Assembly
T10 1 Plastic Carrying Handle
T21, T20,
T46
1 Engine Assembly (includes Fender Guard &
Worm Gear Transmission)
T39/T40 1 Pair Tiller/Cultivator Tines
1 Bag of Hardware
T7 2 Handle Clamps
T9 1 Throttle Clip
T11 2 Bolts (3” long)
T12 2 Knobs
T13 2 Acorn Nuts
T14 4 Lock Nuts
T15 2 Cap Screws
T41 2 Tine Retaining Pins
T42 2 Carriage Bolts
T49 1 Kickstand, Stand Assembly
T50 1 Kickstand, Bracket and Hardware Bag
Not Shown 1 400206 4-Cycle Oil
Bag Contents
Picture of Model 7940
T40
T41
T41
T4
T10
T15
T15
T39
T1
T3
T20 T46T21
T2
T12
T12
T9
T13
T13
T7
T7
T9
T11
T11
T14
T42
T49
T50
T42
T14
