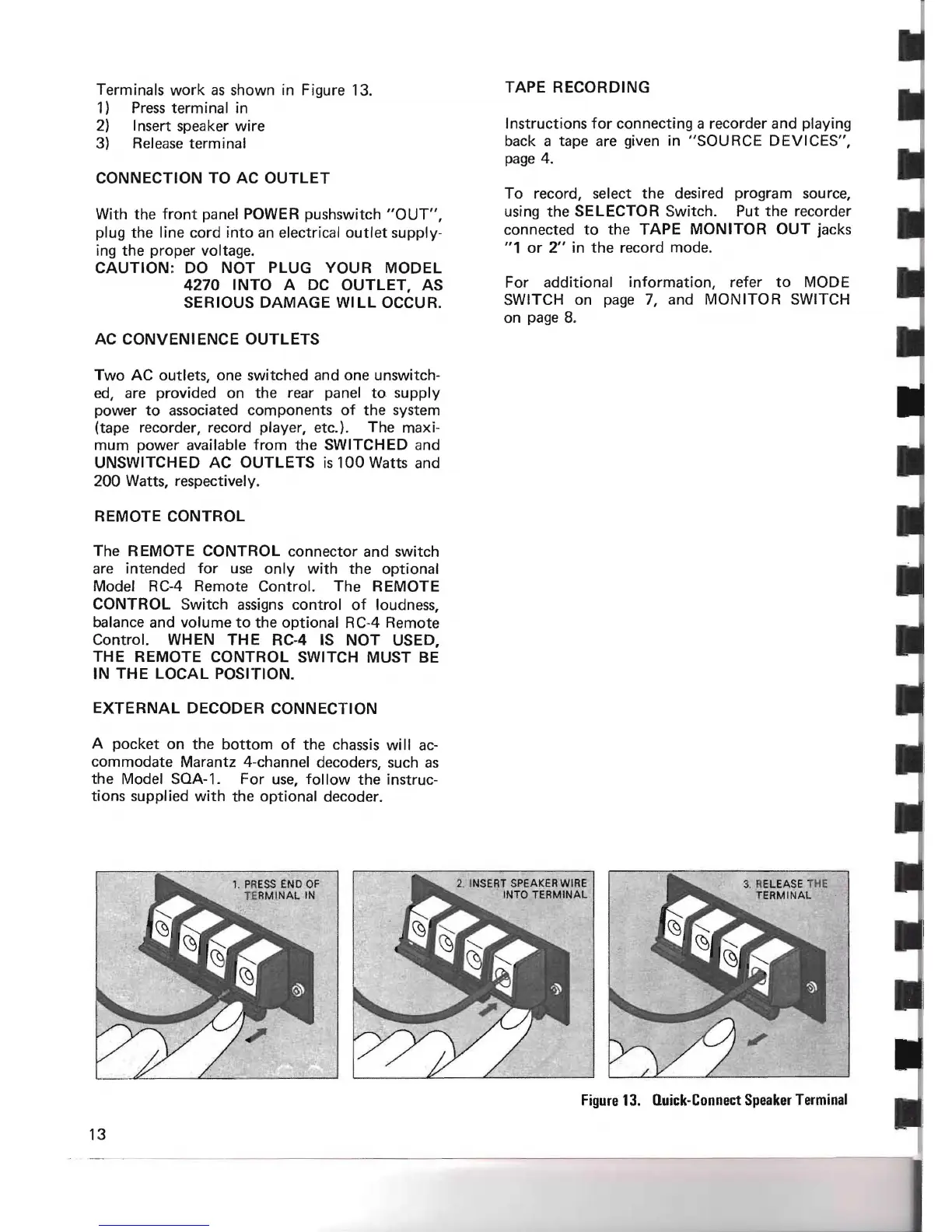

Terminals
work
as shown in Figure 13.
1)
Press
terminal in
2) Insert speaker wire
3)
Release
terminal
CONNECTION TO AC
OUTLET
With the
front
panel POWER pushswitch
"OUT",
plug the line cord
into
an electrical
outlet
supply-
ing the proper voltage.
CAUTION:
DO
NOT
PLUG
YOUR
MODEL
4270
INTO
A DC
OUTLET,
AS
SERIOUS
DAMAGE
WI
LL
OCCUR.
AC CONVENIENCE
OUTLETS
Two
AC outlets, one switched and one unswitch-
ed, are provided on the rear panel
to
supply
power
to
associated components
of
the system
(tape recorder, record player,
etc.), The maxi-
mum power available
from
the SWITCHED and
UNSWITCHED AC
OUTLETS
is
100
Watts and
200 Watts, respectively.
REMOTE
CONTROL
The REMOTE
CONTROL
connector and switch
are intended
for
use
only
with
the optional
Model RC-4 Remote Control. The REMOTE
CONTROL
Switch
assigns
control
of
loudness,
balance and volume
to
the optional
RCA
Remote
Control. WHEN
THE
RC-4 IS
NOT
USED,
THE
REMOTE
CONTROL
SWITCH
MUST
BE
IN
THE
LOCAL
POSITION.
EXTERNAL
DECODER CONNECTION
A pocket on the
bottom
of
the
chassis
will
ac-
commodate Marantz 4-channel decoders, such as
the Model SQA-1. For use,
follow
the instruc-
tions supplied
with
the optional decoder.
TAPE RECORDING
Instructions
for
connecting a recorder and playing
back a tape are given in "SOURCE DEVICES",
page
4.
To record, select the desired program source,
using the SELECTOR Switch. Put the recorder
connected
to
the TAPE
MONITOR
OUT
jacks
"1
or
2"
in the record mode.
For additional
information,
refer
to
MODE
SWITCH on page 7, and
MONITOR
SWITCH
on page 8.
3. RELEASE THE
TERMINAL
Figure
13.
Quick-Connect
Speaker
Terminal
2. INSERT
SPEAKER
WIRE
INTO TERMINAL
1. P
RESS
END OF
TERMINAL IN
13
