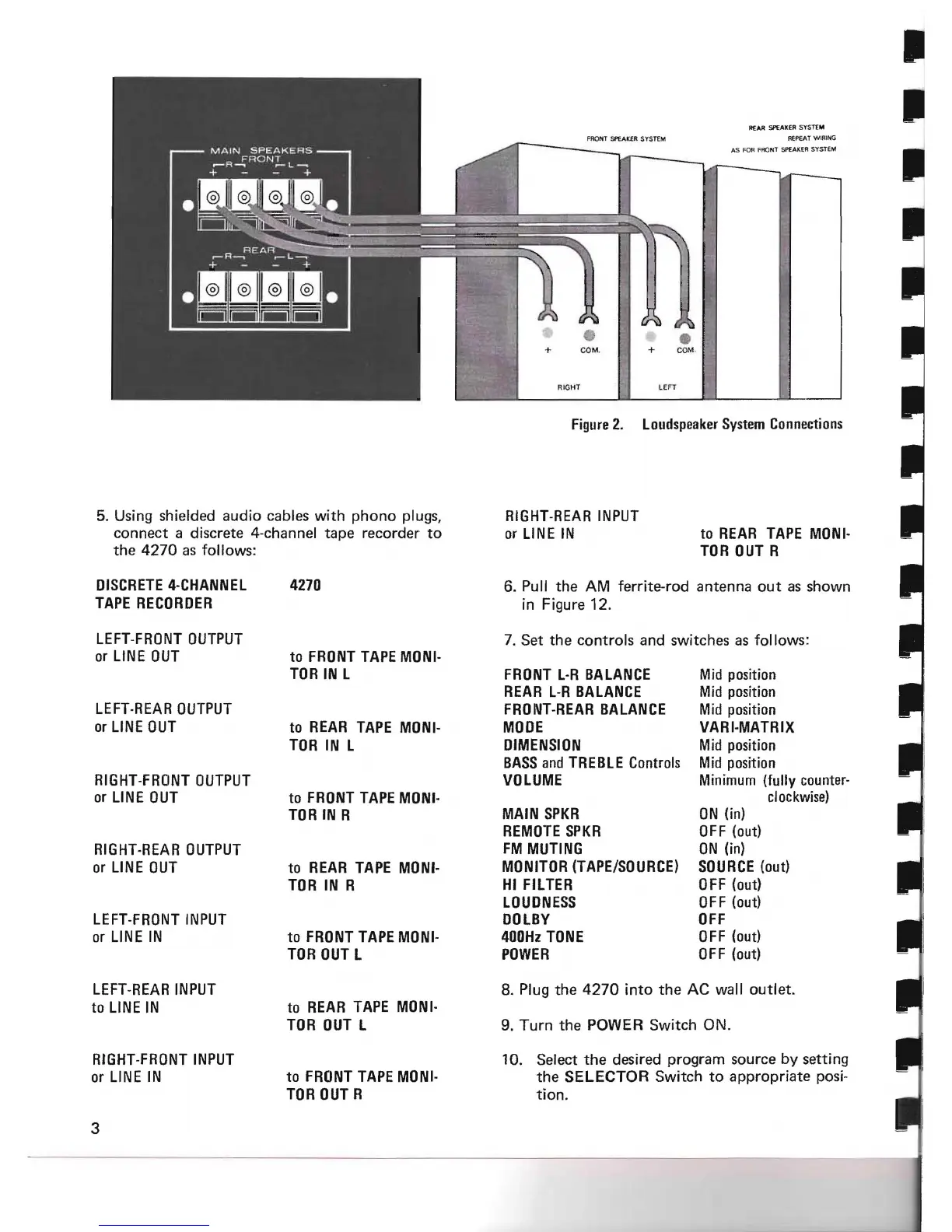

Marantz 4270 - Loudspeaker System Connections

I
II
II
REAR SPEAKER SySTEM
R{PEAT WIRIN G
AS FOR FRONT sPEAKER SYSTEM
LEFT
Figure 2. Loudspeaker System Connections
5. Using shielded audio cables with
phono plugs,
connect a discrete 4-channel
tape recorder to
the 4270 as follows:
DISCRETE 4-CHANNEL 4270
TAPE RECORDER
LEFT-FRONT OUTPUT
or LINE OUT
to FRONT TAPE MONI-
TOR IN L
LEFT-REAR OUTPUT
or LINE OUT
to REAR TAPE MONI-
TOR IN L
RIGHT-FRONT OUTPUT
or LINE OUT
to FRONT TAPE MONI·
TOR IN R
RIGHT-REAR OUTPUT
or LINE OUT
to REAR TAPE MONI-
TOR IN R
LEFT-FROIH
INPUT
or LINE IN
to
FRONT TAPE MONI-
TOR OUT L
LEFT-REAR INPUT
to LINE IN
to
REAR TAPE MONI-
TOR OUT L
RIGHT-FRONT INPUT
or LINE IN to FRONT TAPE MONI-
TOR OUT R
3
RIGHT-REAR INPUT
or LINE IN to REAR TAPE MONI-
TOR OUT R
6. Pull the AM ferrite-rod antenna out as shown
in Figure 12.
7.
Set the controls and switches as follows:
FRONT L-R BALANCE
REAR L-R BALANCE
FROI\lT·REAR BALANCE
MODE
DIMENSION
BASS and TREBLE Controls
VOLUME
MAIN SPKR
REMOTE SPKR
FM MUTING
MONITOR (TAPE/SOURCE)
HI FILTER
LOUDNESS
DOLBY
400Hz TONE
POWER
8. Plug
the 4270 into the AC wall outlet.
9. Turn
the POWER Switch ON.
10. Select
the desired program source by setting
the SELECTOR Switch to appropriate posi-
tion.
Mid
position
Mid position
Mid position
VARI·MATRIX
Mid
position
Mid position
Minimum (fully counter-
clockwise)
ON (in)
OFF (out)
ON (in)
SOURCE (out)
OFF (out)
OFF (out)
OFF
OFF (out)
OFF (out)
