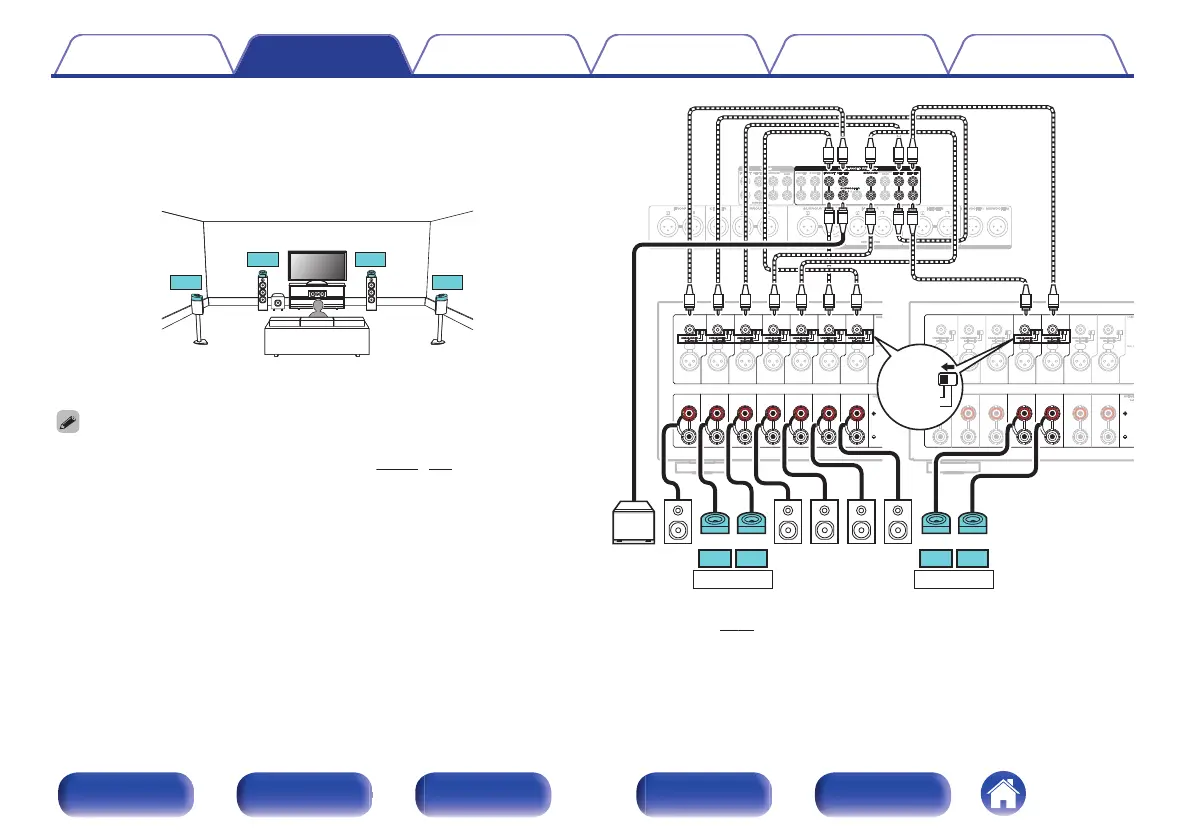

Example connection when using two sets of
Dolby Atmos Enabled speakers
.
C
SW
SL SR
FL
FR
FDL FDR
SDL SDR
0
Set “Floor” - “Layout” to “5ch” or set “5ch & SB” and “Dolby Sp” to “4ch” in the
menu when connecting in this configuration. (v
p. 218, 219)
.
CHANNEL1
(FL)
CHANNEL2
(FR)
CHANNEL3
(SL)
CHANNEL4
(SR)
CHANNEL7
(C)
CHANNEL1
(FL)
CHANNEL2
(FR)
CHANNEL3
(SL)
CHANNEL4
(SR)
CHANNEL7
(C)
CHANNEL5
(SBL)
CHANNEL6
(SBR)
CHANNEL5
(SBL)
CHANNEL6
(SBR)
CHANNEL7
(C)
CHANNEL7
(C)
CHANNEL1
(FL)
CHANNEL2
(FR)
CHANNEL3
(SL)
CHANNEL4
(SR)
CHANNEL1
(FL)
CHANNEL2
(FR)
CHANNEL3
(SL)
CHANNEL4
(SR)
CHANNEL5
(SBL)
CHANNEL6
(SBR)
CHANNEL5
(SBL)
CHANNEL6
(SBR)
SW SR SL FR FLC
SDLSDR
【
MM8077
】
FDLFDR
BALANCED
BALANCED
UNBALANCED
UNBALANCED
HEIGHT 1
z
HEIGHT 2
z
z
You can change the combination of the HEIGHT1 and HEIGHT2 channels in the
settings. (v
p. 66)
