3. DIGITAL PCB
Proceeding : TOP COVER → DIGITAL PCB

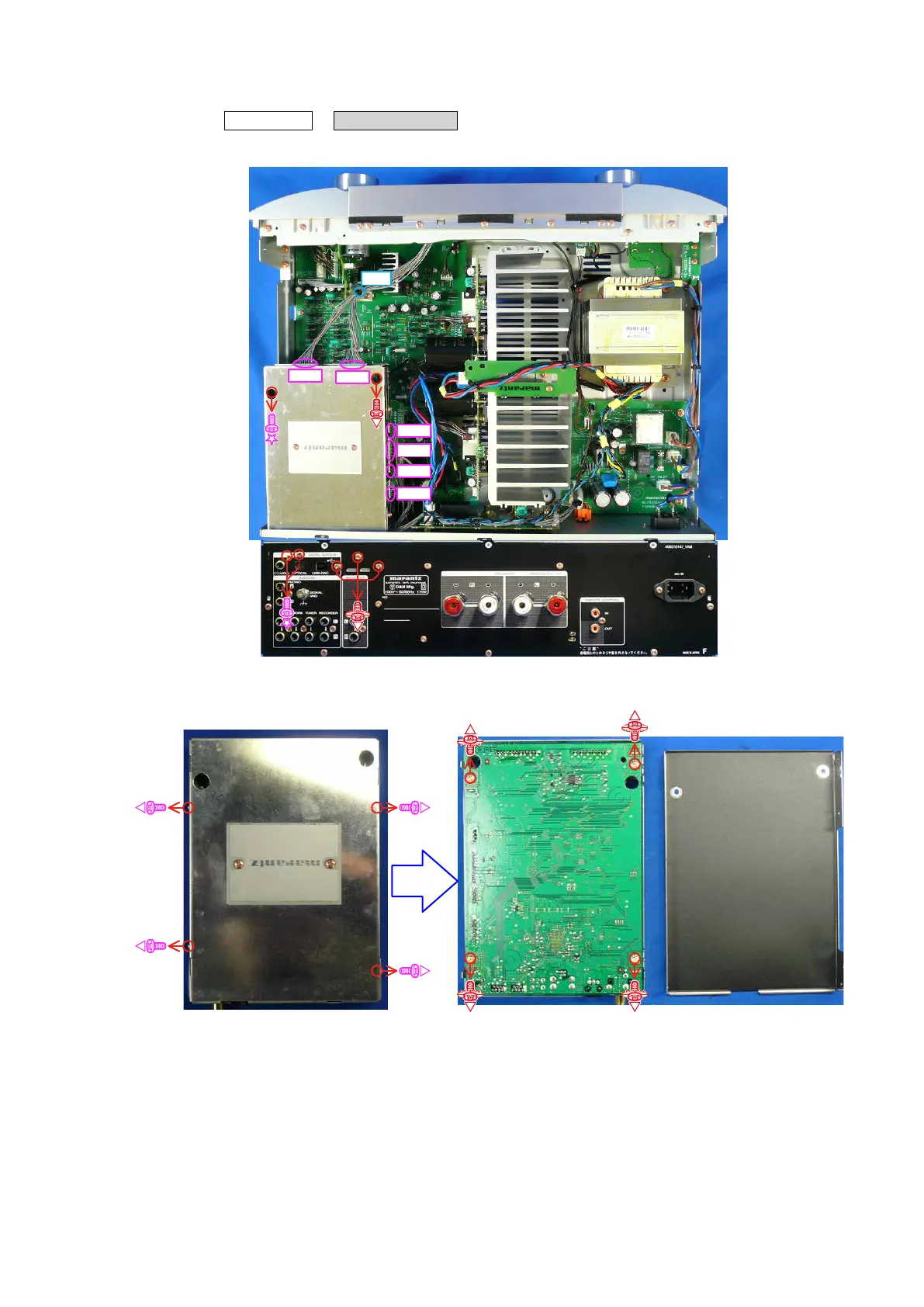

(1) Remove the connector wires. Remove the screws.
(2) Remove the screws.
N101
N701
N301
N105
N104
N102
CUT
