4. PHONO HDAM PCB
Proceeding : TOP COVER → DIGITAL PCB → PHONO HDAM PCB

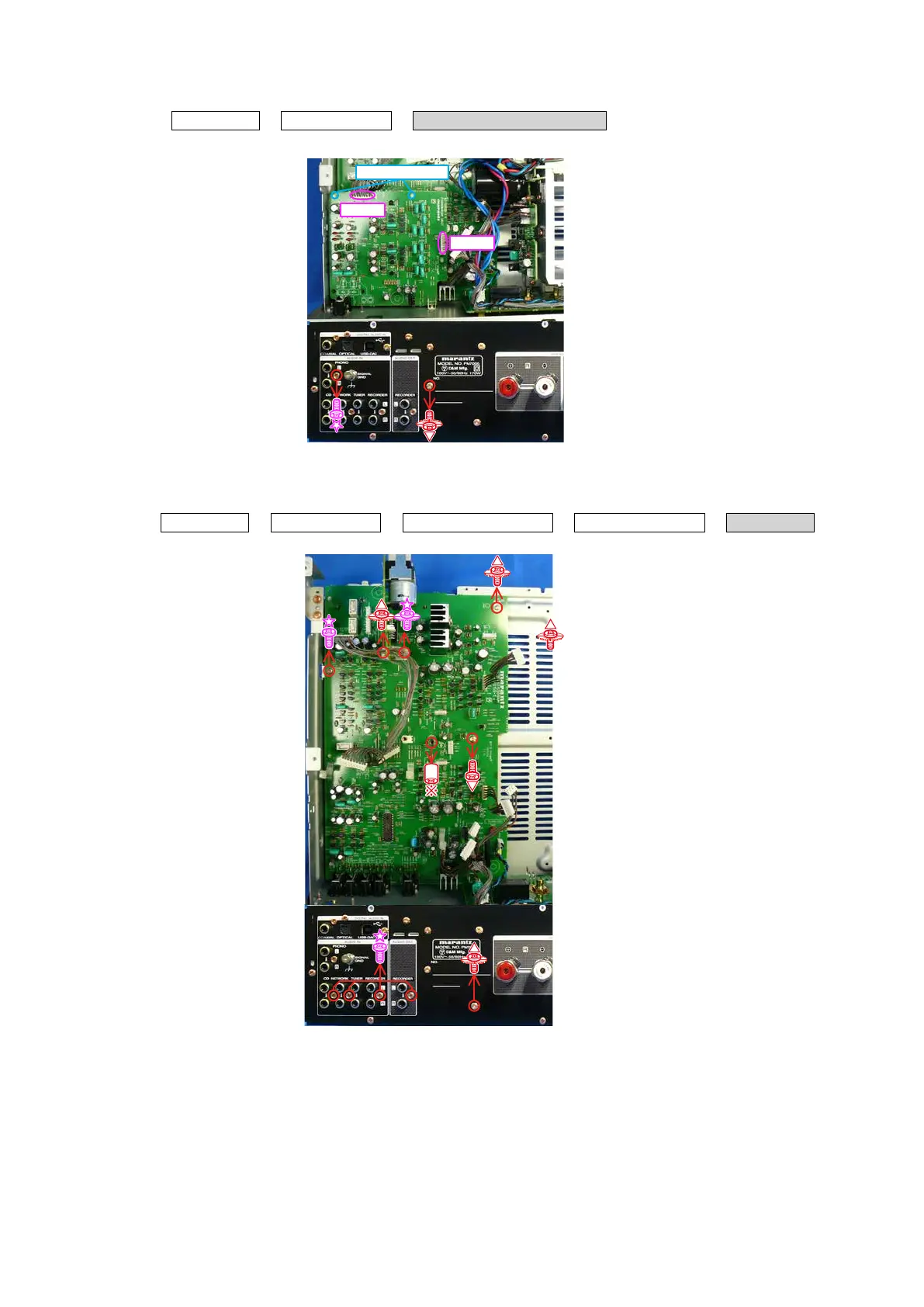

(1) Remove the screws. Remove the connector wires.
5. MAIN PCB
Proceeding : TOP COVER → DIGITAL PCB → PHONO HDAM PCB → HEAT SINK ASSY → MAIN PCB
(1) Remove the screws.
N4002
N4001
PCB HOLDER
16
