Marantz Icemaker - Page 38

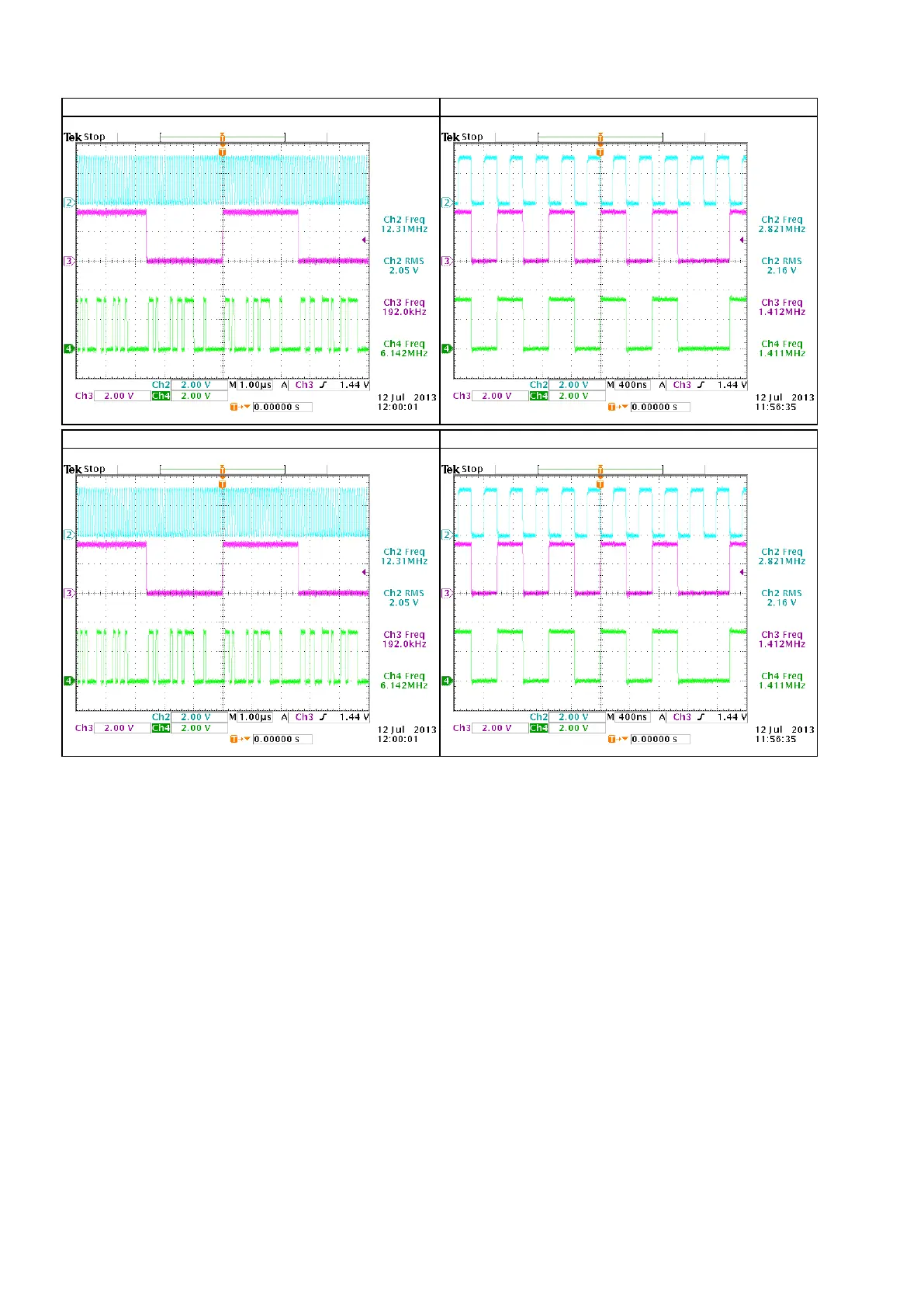

(1)PLD Input signal (Digital Input PCM) (2)PLD Input signal (Digital Input DSD)
(3)PLD Output signal (Digital Output PCM) (4)PLD Output signal (Digital Output DSD)
q
R859
EPM240T100C5N
57pin : DIR1_BCK
w
R858
EPM240T100C5N
58pin : DIR1_LRCK
e
R871
EPM240T100C5N
61pin : DIR1_DATA
y
R867
EPM240T100C5N
67pin : USBB_DSD_BCK
r
R449
EPM240T100C5N
68pin : USBB_DSD_DATA_L
t
R450
EPM240T100C5N
69pin : USBB_DSD_DATA_R
u
R827
EPM240T100C5N
34pin : DAC_BCK
i
R825
EPM240T100C5N
30pin : DAC_LRCK
o
R826
EPM240T100C5N
33pin : DAC_DATA
Q0
R824
EPM240T100C5N
29pin : DAC_DSD_BCK
Q1
R822
EPM240T100C5N
27pin : DAC_DSDDATAL
Q2
R823
EPM240T100C5N
28pin : DAC_DSD_DATAR
38
