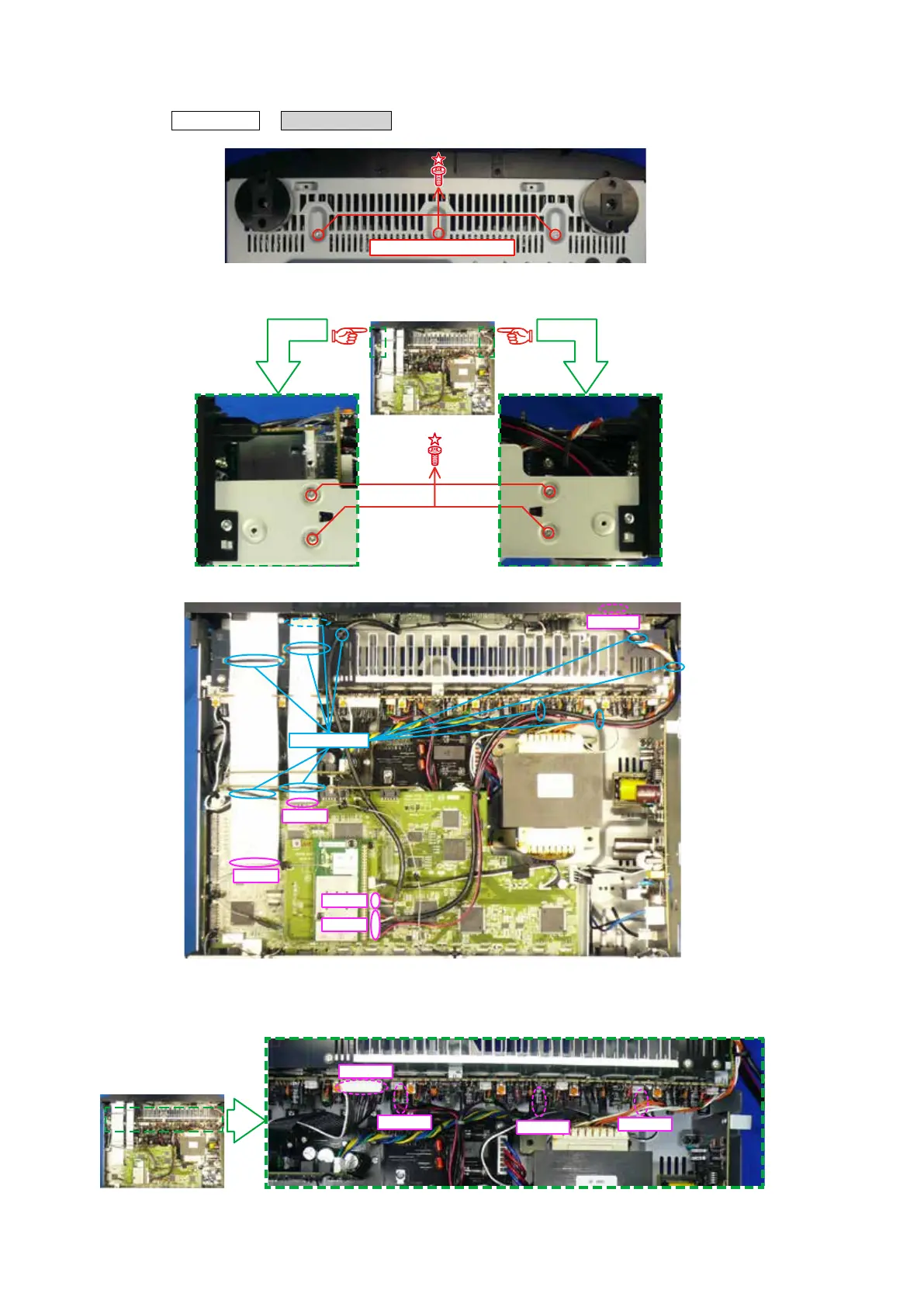

2. RADIATOR ASSY
Proceeding : TOP COVER → RADIATOR ASSY
(1) Remove the screws.
(2) Remove the screws.
(3) Remove the connector wire and STYLE PIN.
(4) Remove the connector wire.
View from the bottom
FFC
FFC
N7005
N7002
CP4401
STYLE PIN
CP4800
CP4801
CP4803
CP4802
14
