Marantz NR1605/U1B - Reg Assy; Hdmi Pcb

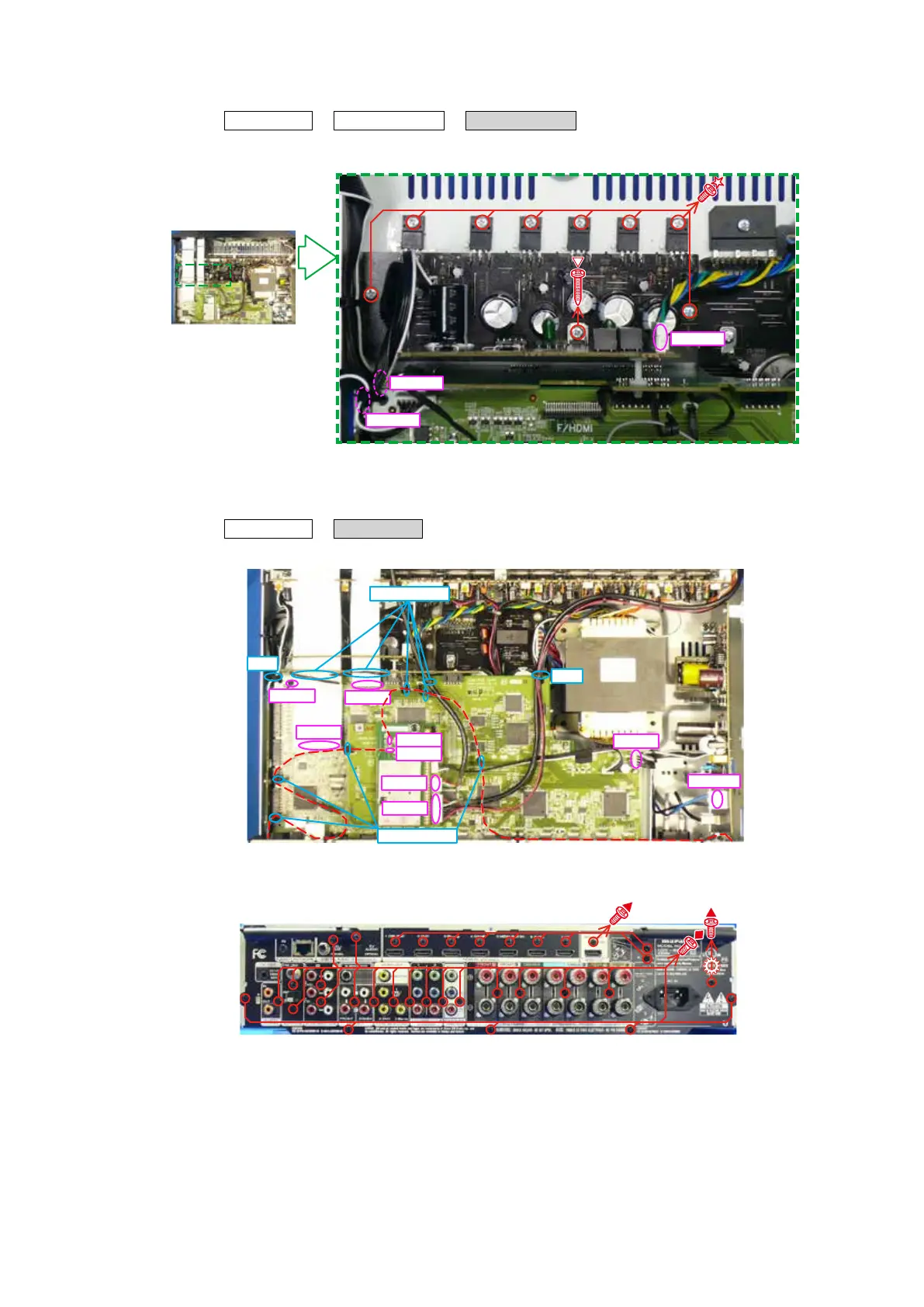

3. REG ASSY
Proceeding : TOP COVER → RADIATOR ASSY → REG ASSY
(1) Remove the screws. Remove the connector.
4. HDMI PCB
Proceeding : TOP COVER → HDMI PCB
(1) Cut the wire clamp, then remove the connector wires and FFC. Remove the STYLE PIN.
(2) Remove the screws.
CP4604
CP4615
CP4614
Front side
FFC
FFC
N7005
N7002
CON1
CON2
N1029
N1019
CP4142
CUT
STYLE PIN
CUT
STYLE PIN
15
