Marantz NR1605/U1B - Spk Pcb; Power Trans

6. SPK PCB
Proceeding : TOP COVER → HDMI PCB → AV PCB → SPK PCB

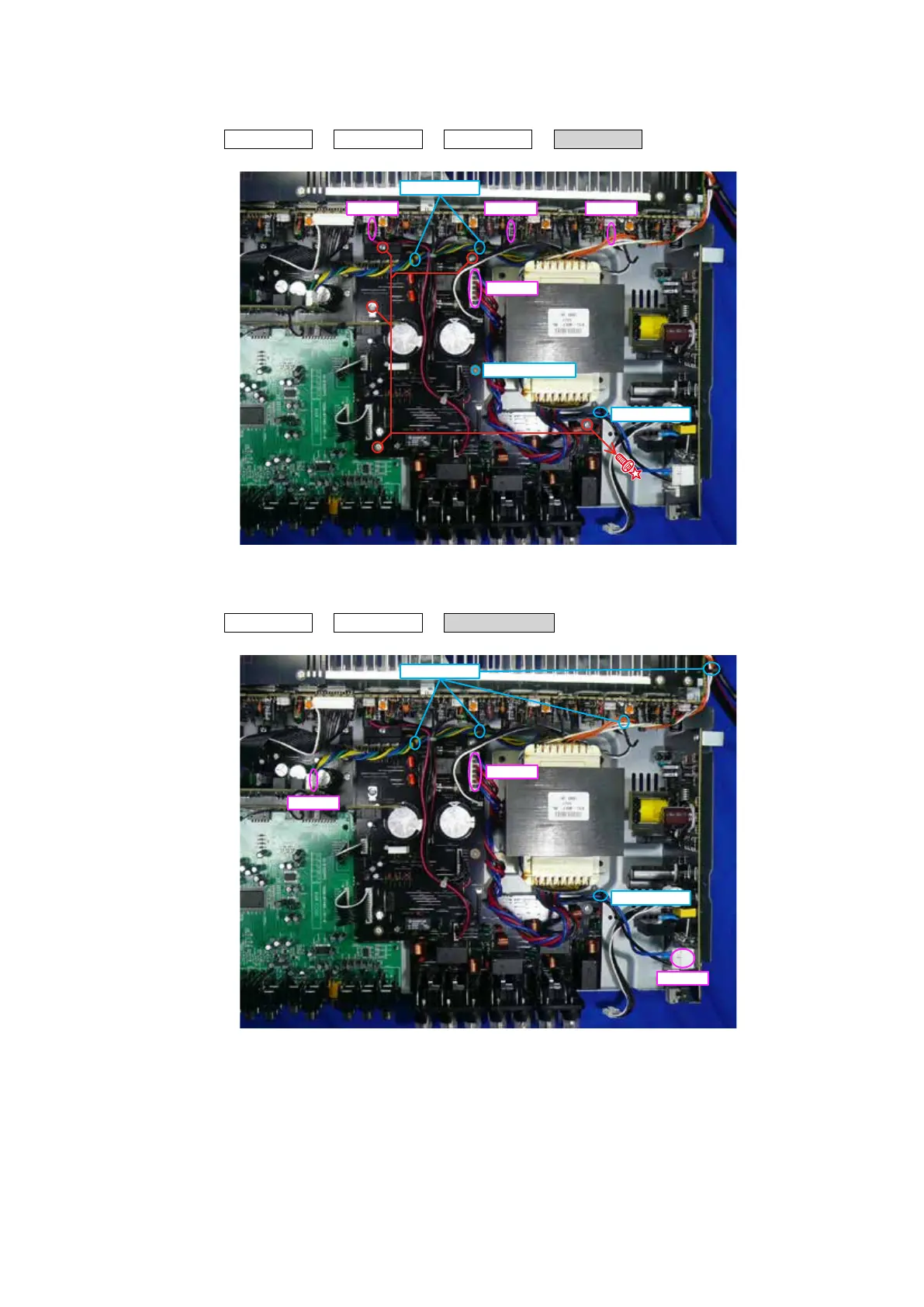

(1) Remove the connector wire and STYLE PIN. Remove the PCB HOLDER and screws.
7. POWER TRANS
Proceeding : TOP COVER → HDMI PCB → POWER TRANS
(1) Remove the connector wire and STYLE PIN.
CP4001
STYLE PIN
CP4800 CP4802 CP4803
STYLE PIN
PCB HOLDER
CP4001
STYLE PIN
CP4604
STYLE PIN
CP4142
