Marantz NR1605/U1B - Smps Pcb

(2) Remove the connector wire and STYLE PIN.
(3) Remove the screws.
NOTE : It will separate and TRANS will fall from SET, if screws is removed.
8. SMPS PCB
Proceeding : TOP COVER → SMPS PCB
(1) Remove the connector wire. Remove the screws.
See "EXPLODED VIEW" for instructions on how to remove each PCB of the "
SMPS PCB
".
CP4401
STYLE PIN

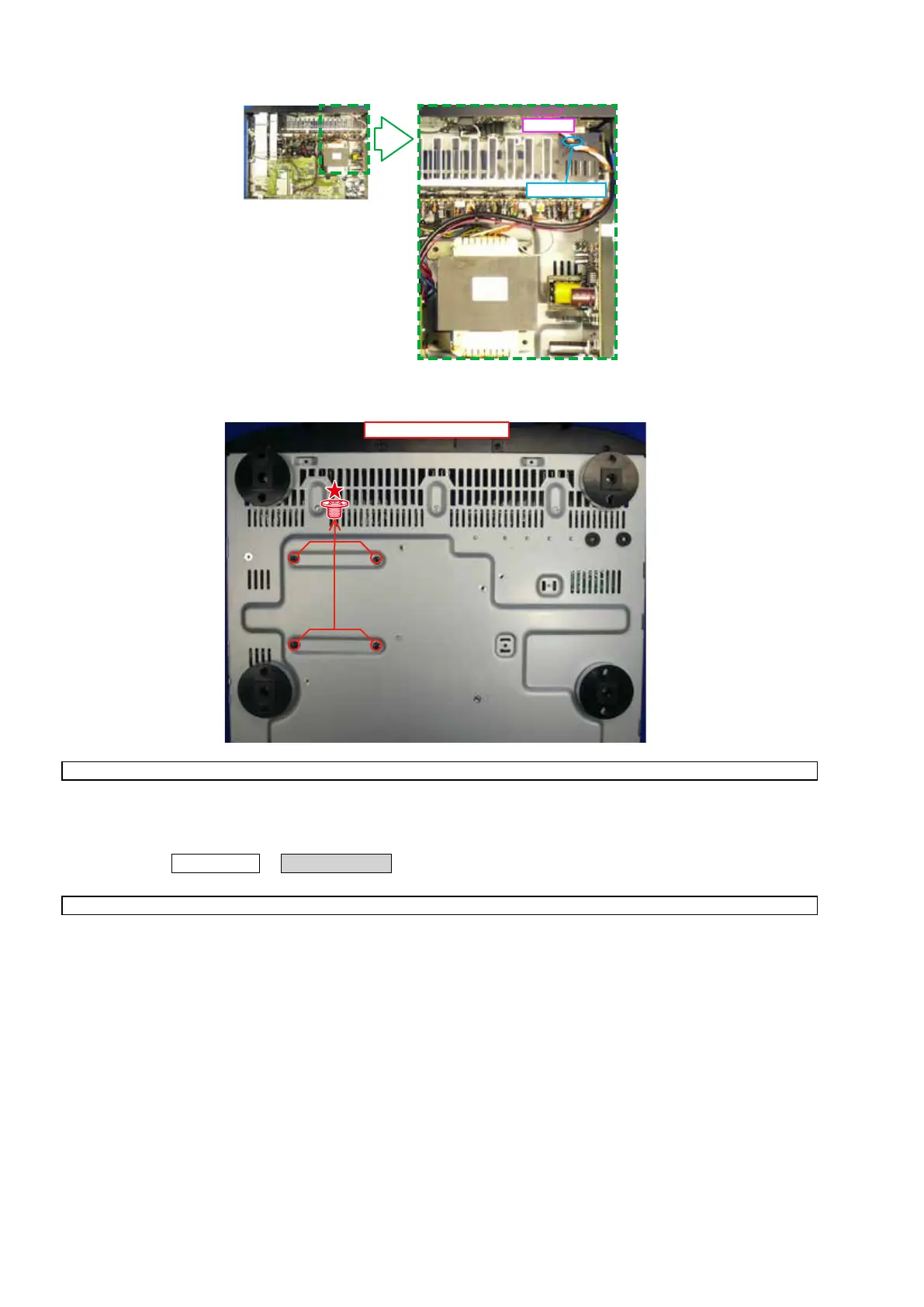

View from the bottom
18
