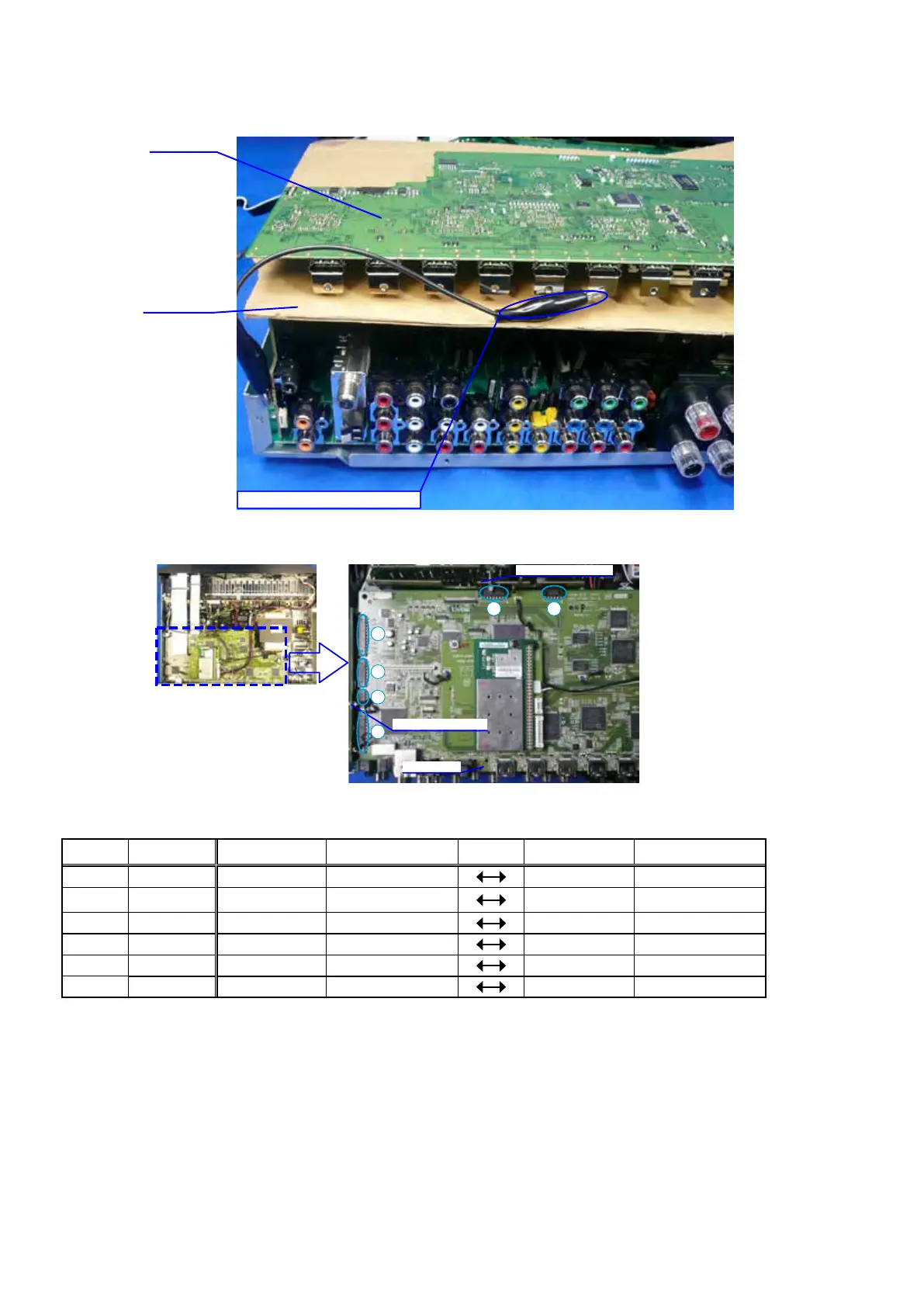

(3) Remove the HDMI PCB from the chassis and turn it over.
Place an insulation sheet larger than the PCB underneath the HDMI PCB.
b
Connect the earth of the PCB to the chassis using an earth wire, etc.
(4) Connect the expansion cables.
Connection table of Board to Board
No. Pin Ref. No. PCB Ref. No. PCB
q
23pin CP4603 SIDE CNT N1014 HDMI
w
15pin CP4604 SIDE CNT N1015 HDMI
e
7pin CP4605 SIDE CNT N1013 HDMI
r
23pin CP4606 SIDE CNT N1016 HDMI
t
17pin CP4613 FRONT CNT N1018 HDMI
y
11pin CP4612 FRONT CNT N1013 HDMI
HDMI PCB
Insulation sheet
CHASSIS-HDMI CONNECTOR
FRONT_CNT PCB
SIDE_CNT PCB
HDMI PCB
1
2
3
4
5 6
56
To Next Page
